S28

The S28 passive subwoofer comprises dual 18” low frequency drivers reinforced with a nano coating. The driver diaphragm has a better rigidity allowing the unit to maintain low distortion and continuous energy output under high-power conditions.

The S28 provides a maximum SPL of 145dB (Peak).

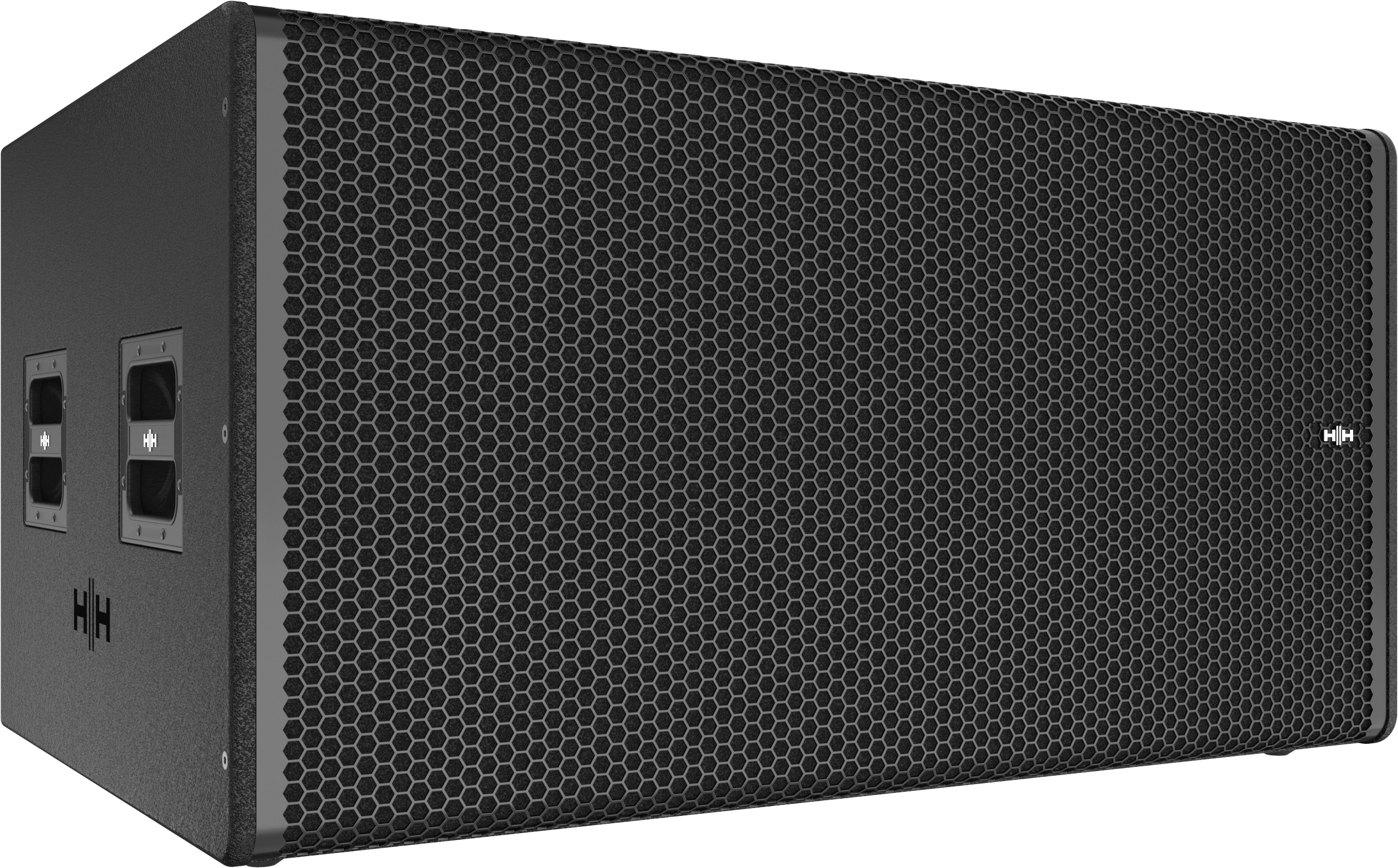

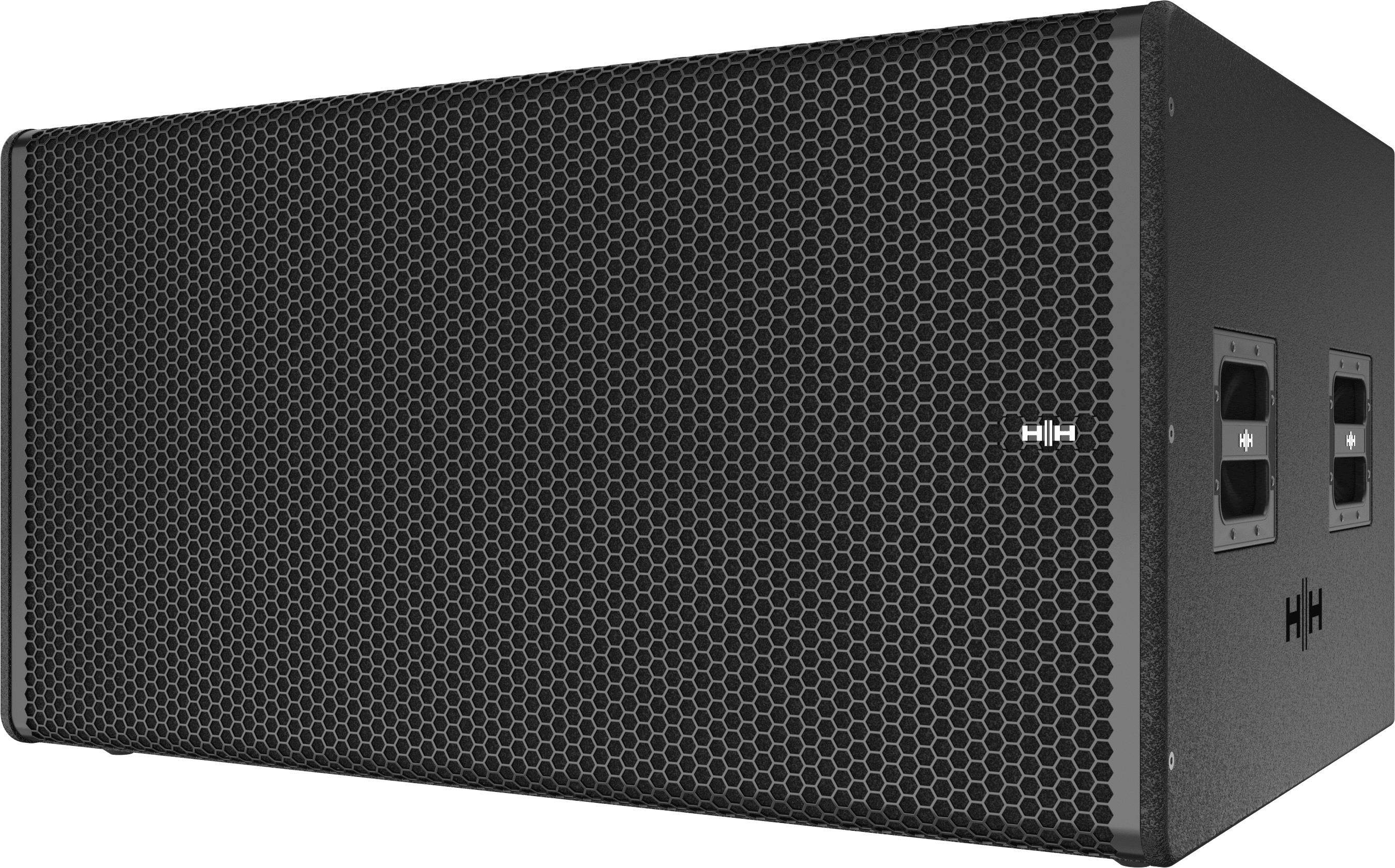

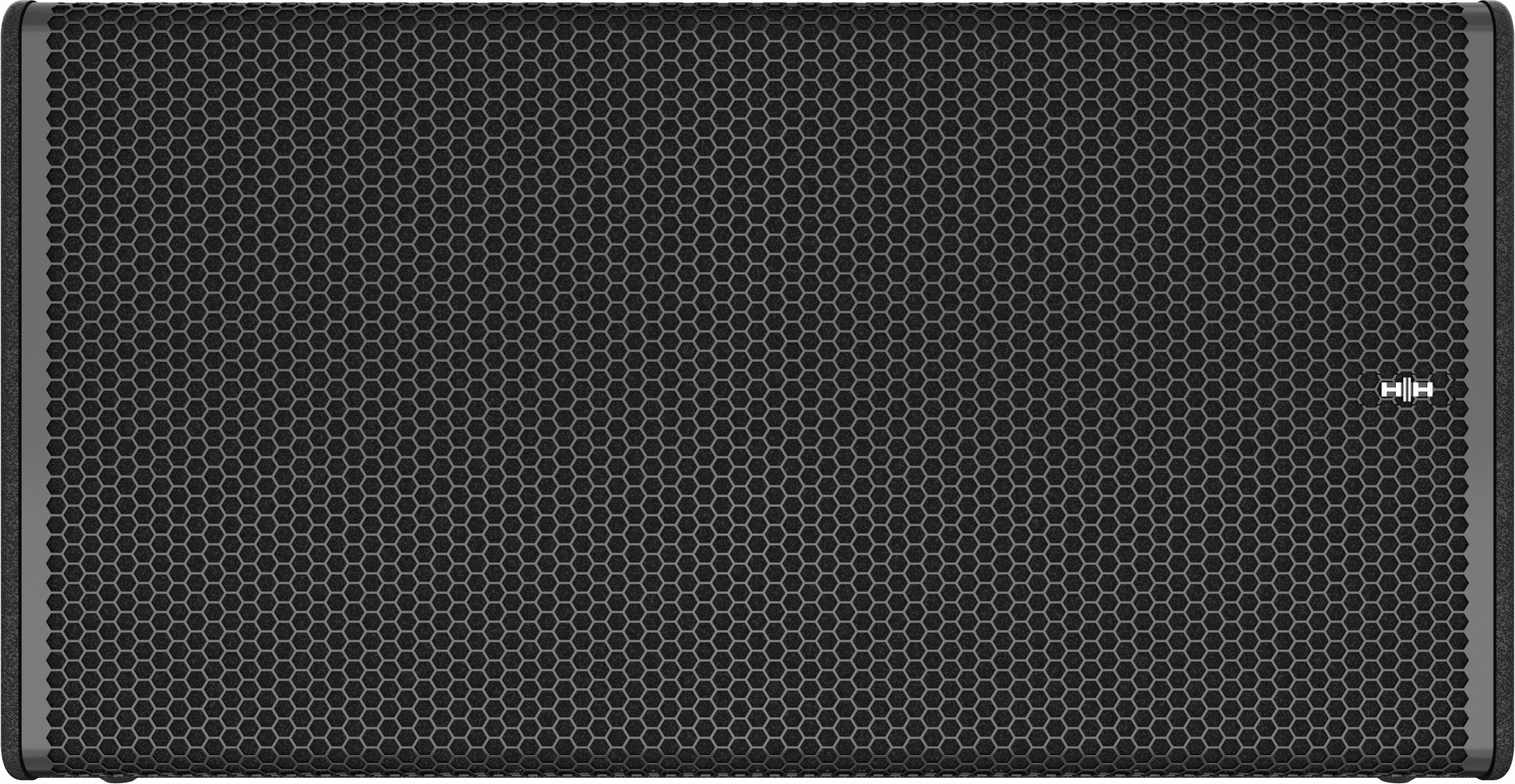

The 80KG cabinet features 4 side handles and provision for castors to improve portability. The S28 constructed of acoustically optimised plywood with extensive internal bracing, finished with hard wearing black paint and appointed with a hexagonal mesh black perforated steel grille with acoustic foam backing.

Features

  • Cabinet
    Plywood
  • System Type
    Passive Dual Subwoofer
  • Frequency Response
    35Hz–130Hz (±3dB) 28Hz–200Hz (-10dB)
  • Max SPL
    139dB Continuous, 145dB Peak
  • Power
    1800W Continuous, 5400W Peak
  • Sensitivity (1W/1M)
    106dB
  • Nominal System Impedance
    4 Ohms
  • LF Driver
    18" Low-Frequency Driver
  • Grille
    Hexagonal Mesh Black Perforated Steel with Acoustic Foam Backing.
  • Fixings And Screws
    4 x Side Handles, Provision for Castors
  • Input Connector
    1 x Speakon NL4
  • Link Connector
    1 x Speakon NL4

A comprehensive range of passive line array, point source and sub enclosure systems.

A comprehensive range of passive loudspeakers designed to deliver exceptional audio clarity and coverage.

The Prince Series is a comprehensive range of passive loudspeakers designed to deliver exceptional audio clarity and coverage. The series consists of a selection of line array, point source, and subwoofer enclosures configurable to the requirements of a wide range of use cases. Prince Series products feature meticulously crafted high-sensitivity drive units housed in robust plywood enclosures with rigging systems and hardware suited to fixed installation and portable applications.

LA8D and LA10D line array loudspeakers utilise symmetrical phase alignment technology optimising the coupling characteristics of the drive units to improve overall system efficiency. The all-neodymium structure of the high-frequency compression driver combined with HH phase plug technology provides pinpoint directional control.

Drive unit cones in the S15, S18, and S28 sub enclosures are reinforced with a nano-coating improving the structural integrity of the cone. This improved rigidity allows the drive unit to maintain low distortion and continuous energy output under high power conditions.

While PS point source loudspeakers are optimised to work in harmony with Prince Series line array and sub enclosure products the use cases of these high SPL point source boxes span much further. Suited to a wide range of applications including cafes, restaurants, and bars plus environments requiring a higher SPL such as bars, wedding venues, houses of worship, and large conference spaces.
