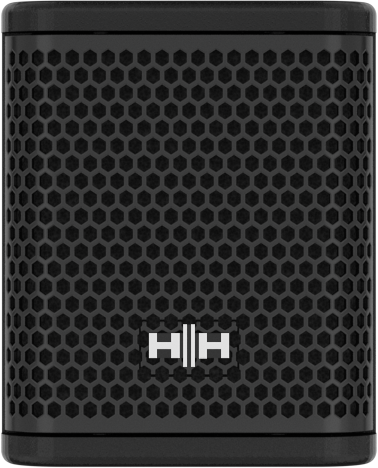

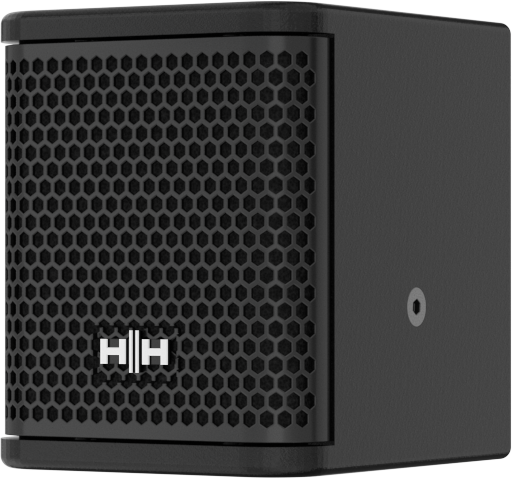

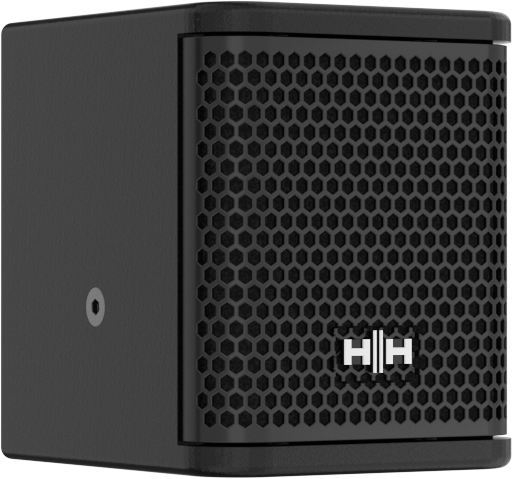

The PS5 is a compact 2-way passive point source speaker that comprises 1 x 5-inch low-frequency driver alongside 1 x 2-inch high-frequency compression driver with a maximum SPL of 122dB (peak).
The PS5 has a horizontal dispersion angle of 90°, and a vertical dispersion angle of 60°.
The unique and solid structure of the PS5 reduces unwanted resonance of the cabinet. This helps to prevent sound colouration, minimizes distortion and improves the overall output efficiency.
Mounting options include 2 x M8 and 2 x M6 mounting points. The rear panel offers input and llink connection via Speakon NL4.
The wooden enclosure is composed of robust plywood, finished with black paint, and fitted with a perforated hexagonal mesh steel grille with acoustic foam backing.
A comprehensive range of passive loudspeakers designed to deliver exceptional audio clarity and coverage.
The Prince Series is a comprehensive range of passive loudspeakers designed to deliver exceptional audio clarity and coverage. The series consists of a selection of line array, point source, and subwoofer enclosures configurable to the requirements of a wide range of use cases. Prince Series products feature meticulously crafted high-sensitivity drive units housed in robust plywood enclosures with rigging systems and hardware suited to fixed installation and portable applications.
LA8D and LA10D line array loudspeakers utilise symmetrical phase alignment technology optimising the coupling characteristics of the drive units to improve overall system efficiency. The all-neodymium structure of the high-frequency compression driver combined with HH phase plug technology provides pinpoint directional control.
Drive unit cones in the S15, S18, and S28 sub enclosures are reinforced with a nano-coating improving the structural integrity of the cone. This improved rigidity allows the drive unit to maintain low distortion and continuous energy output under high power conditions.
While PS point source loudspeakers are optimised to work in harmony with Prince Series line array and sub enclosure products the use cases of these high SPL point source boxes span much further. Suited to a wide range of applications including cafes, restaurants, and bars plus environments requiring a higher SPL such as bars, wedding venues, houses of worship, and large conference spaces.
