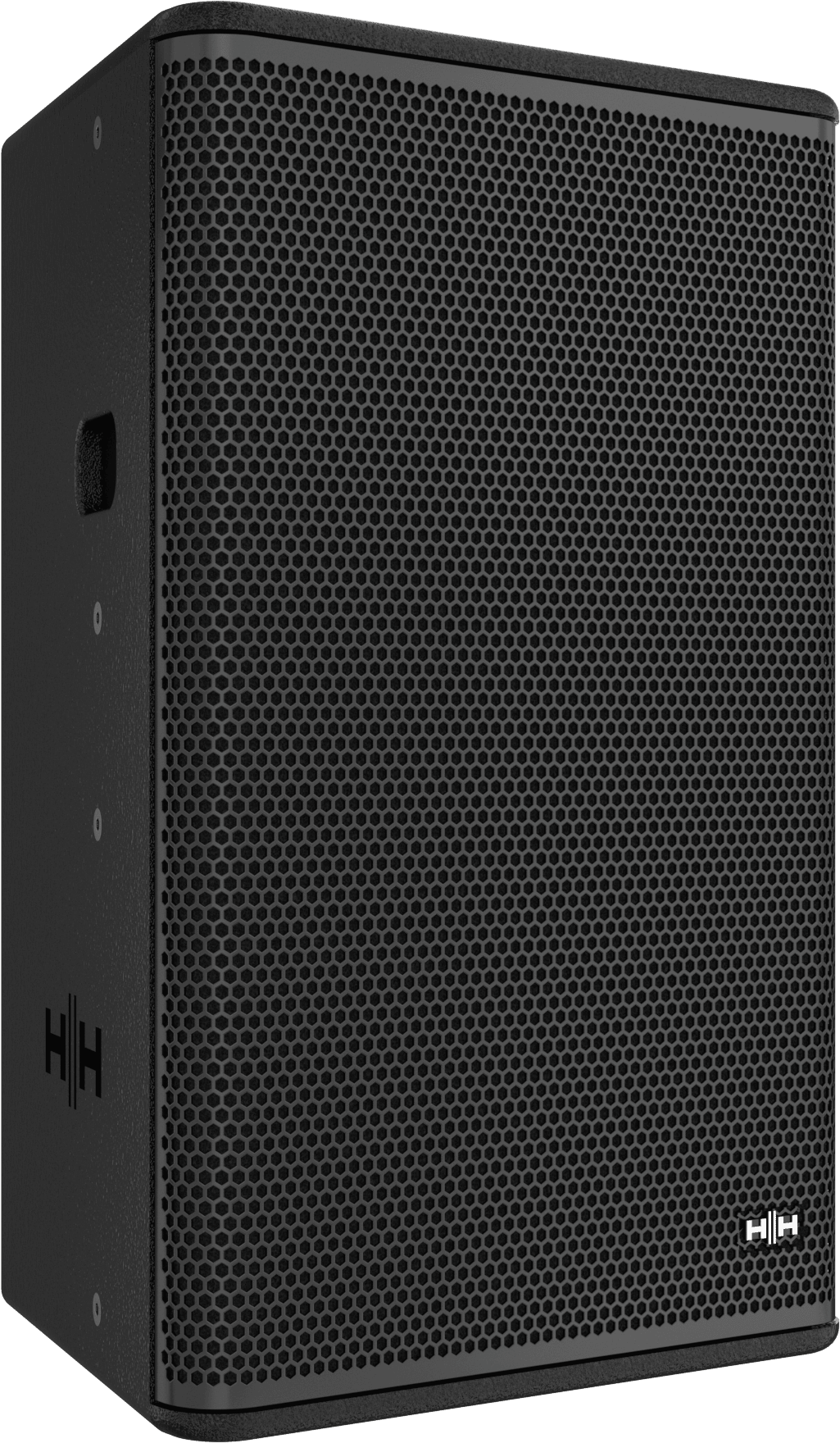

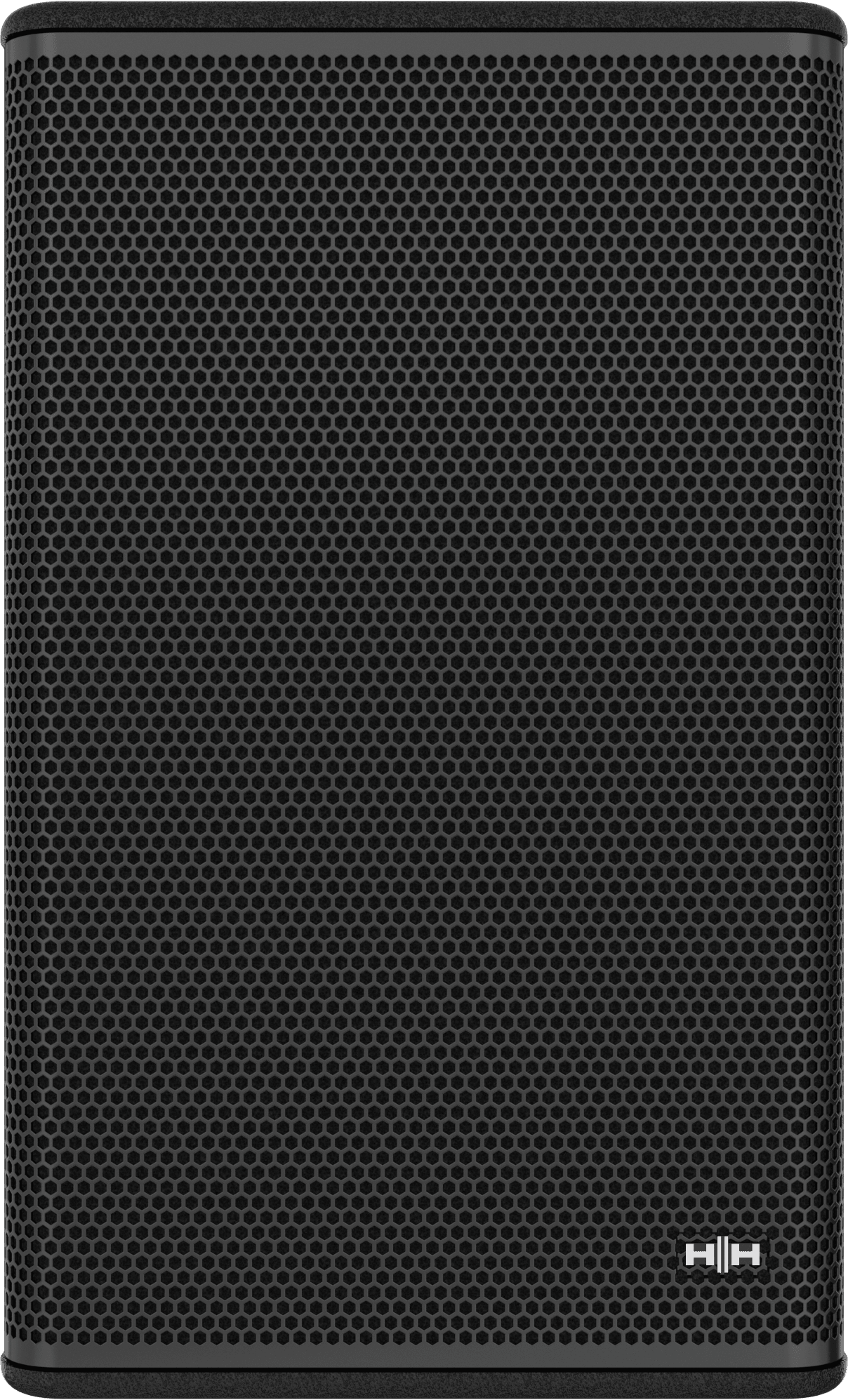

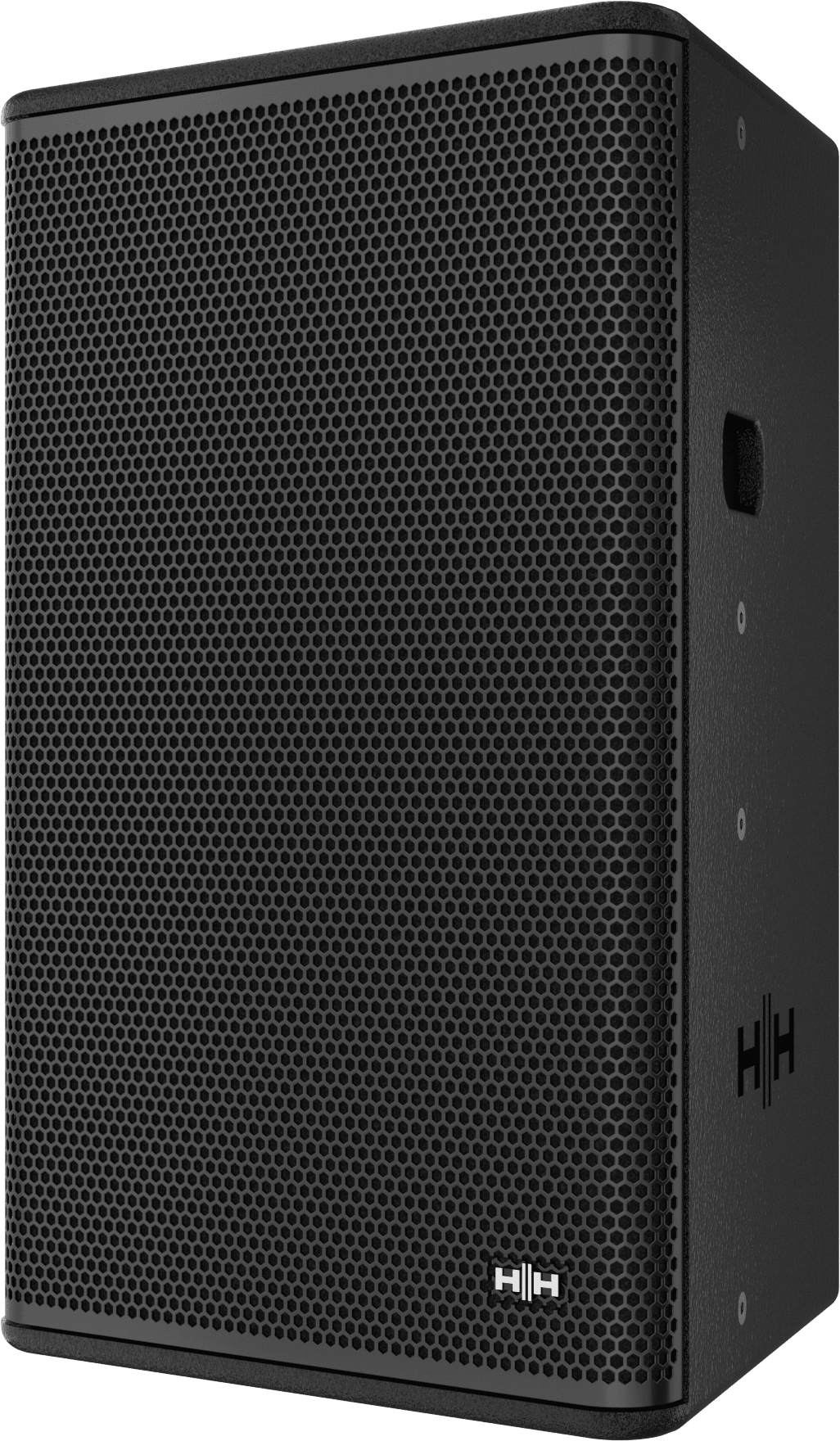

The PS12 is a full-range 2-way passive point source loudspeaker that comprises 1 x 12” specially designed low-frequency driver alongside 1 x 3” magnesium alloy high-frequency compression driver with a maximum SPL of 131dB (Peak).
The PS12 has a horizontal dispersion angle of 90°, and a vertical dispersion angle of 60°.
The PS12 features a unique cabinet structure which greatly reduces unwanted cabinet resonance assisting in the reduction of sound colouration, minimizing distortion and improving the overall output efficiency.
Mounting options include 14 x M8 mounting points as well as a dual-pole mount socket with an option for 0° and -10° vertical tilting. The PS12 also features 2 side handles making it well suited to portable live sound reinforcement applications.
The wooden enclosure is composed of robust plywood, finished with black paint and fitted with a hexagonal mesh steel grille with acoustic foam backing.
A comprehensive range of passive loudspeakers designed to deliver exceptional audio clarity and coverage.
The Prince Series is a comprehensive range of passive loudspeakers designed to deliver exceptional audio clarity and coverage. The series consists of a selection of line array, point source, and subwoofer enclosures configurable to the requirements of a wide range of use cases. Prince Series products feature meticulously crafted high-sensitivity drive units housed in robust plywood enclosures with rigging systems and hardware suited to fixed installation and portable applications.
LA8D and LA10D line array loudspeakers utilise symmetrical phase alignment technology optimising the coupling characteristics of the drive units to improve overall system efficiency. The all-neodymium structure of the high-frequency compression driver combined with HH phase plug technology provides pinpoint directional control.
Drive unit cones in the S15, S18, and S28 sub enclosures are reinforced with a nano-coating improving the structural integrity of the cone. This improved rigidity allows the drive unit to maintain low distortion and continuous energy output under high power conditions.
While PS point source loudspeakers are optimised to work in harmony with Prince Series line array and sub enclosure products the use cases of these high SPL point source boxes span much further. Suited to a wide range of applications including cafes, restaurants, and bars plus environments requiring a higher SPL such as bars, wedding venues, houses of worship, and large conference spaces.
