MZ-C2-US-BK

MZ Series

MZ-C2-US-BK

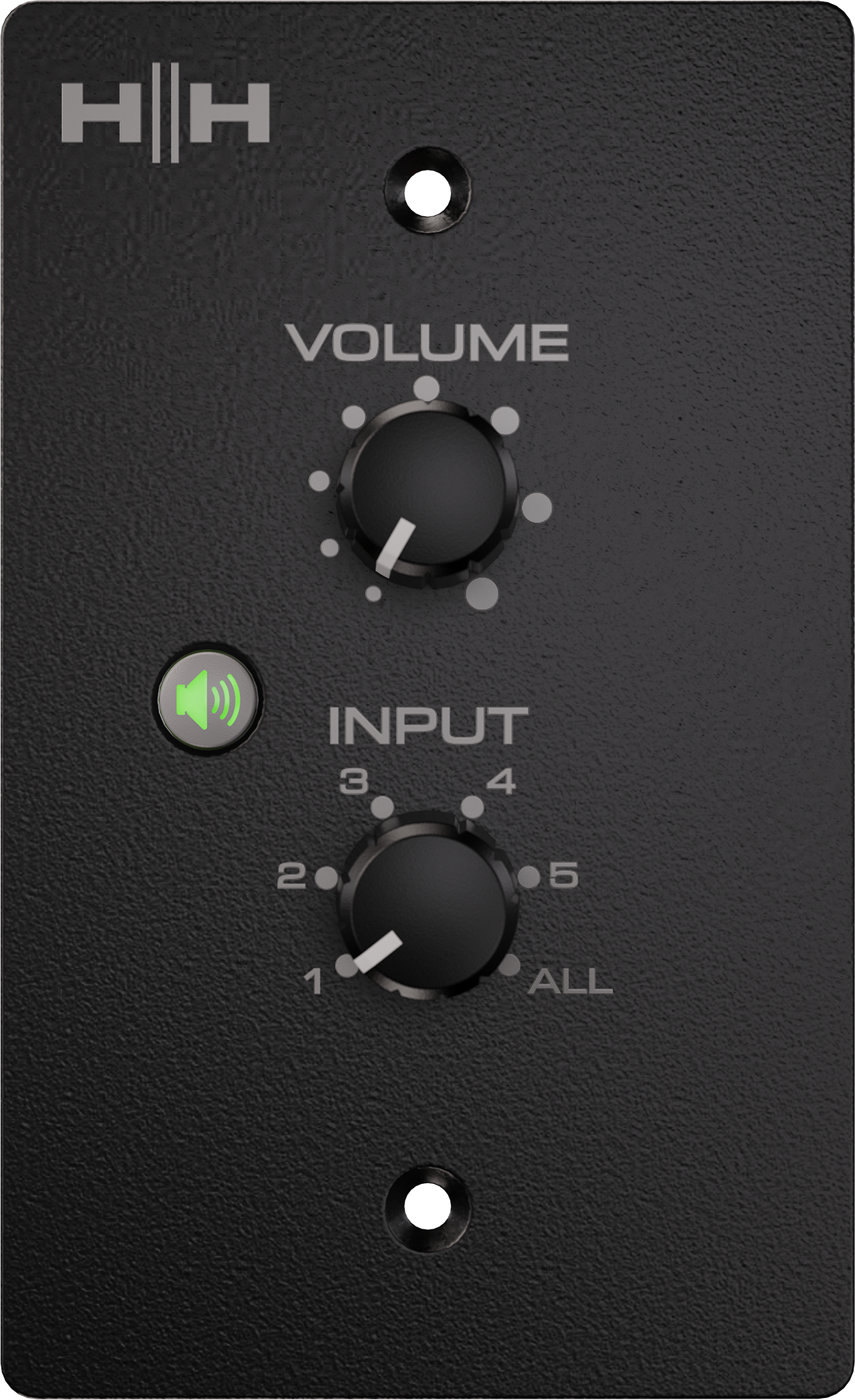

The MZ-C2 is a wall mounted volume controller and source selector for the MZ series zone distribution amplifiers. The MZ-C2 allows the installer to select which zones the volume control is assigned to, and has a handy quick illuminated mute option to avoid moving the volume control. Front mounted source selector control allows the user to select which input is routed to the selected zone/s. Connected using standard Cat5 cable, installation is quick and easy. MZ-C2-US-BK is finished in elegant white and fits a standard USA sized J box. White version available (MZ-C2-US-WH)

Features

  • System Type
    Wall volume controller with source select
  • Input Connector
    RJ45 LAN connector for connection to zone amplifier (standard CAT5e cable)
  • Output Connector
    RJ45 LAN connector to connect other wall controllers in daisy chain (standard CAT5e cable)
  • Controls
    Volume and source control; mute switch; zone select DIP switch
  • Mounting Depth
    48mm minimum depth required
  • Unit Dimensions (Hwd)
    114 x 70 x 44 mm (4.5" x 2.8" x 1.7")
  • Unit Weight
    0.147kg, 0.3lbs
  • Carton Dimensions (Hwd)
    165 x 475 x 255 mm (6.5" x 18.7" x 10"), 12pcs multipack
  • Packed Weight
    4.5kg, 9.9lbs, 12pcs multipack

MZ Series Install Zone Amplifiers, Pre-amp & Controllers

The MZ Series is perfect for those needing to control audio for several zones. The range includes 3 zone amplifiers, one pre-amp, and sleek wall controllers in either black or white and available as EU or US standard plates.
