The MZ-140DX is a compact yet versatile 2-channel installation amplifier designed for smaller installations or expanding a larger system. The MZ-140DX delivers 140W RMS per channel with a total system power of 280W RMS, ensuring reliable and consistent performance. The dynamic power allocation of the MZ-140DX allows channel 1 to draw up to the full 280W RMS of available power, if required, providing the total system power is not exceeded. This enables the MZ-140DX to provide efficient power management uniquely tailored to each system. The MZ-140DX offers flexibility for a wide range of applications supporting both 70/100V (Hi-Z) and 4/8ohm (Lo-Z) systems.

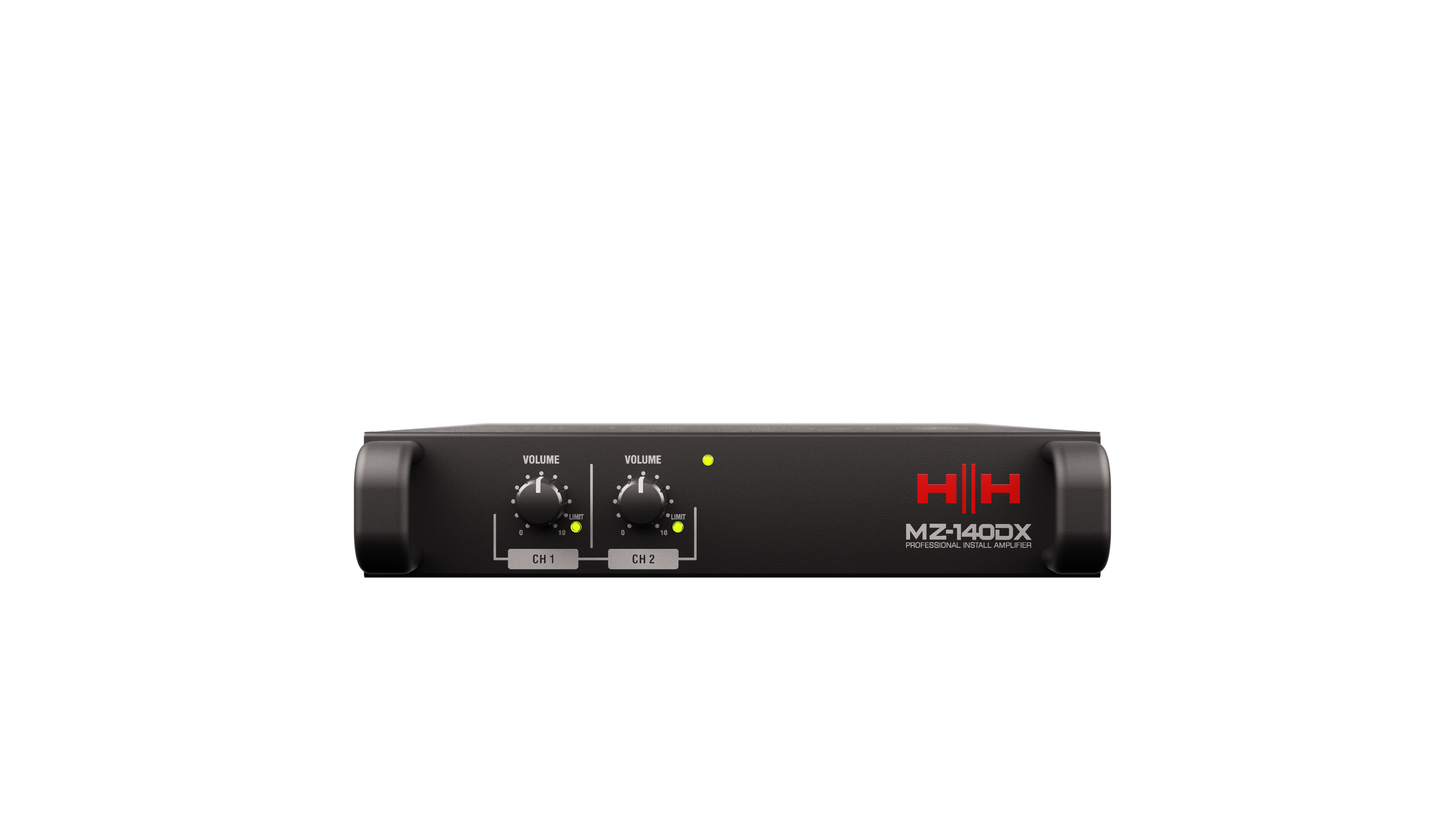

Equipped with two balanced Euroblock 3.5mm input connectors, the MZ-140DX offers flexibility with input assignment enabling the user to assign inputs 1:1 or 1:All. The straightforward control panel simplifies setup and operation, with front ‘scribble’ strips providing a convenient way for installers to label and identify output channels.
For the first time in the MZ Series, we have included the option to use the USB C input on the rear panel to stream class-compliant audio at 48kHz. We have also developed an entirely new desktop application enabling deep customisation of the MZ-140DX. The MZ-Control application gives the installer the ability to control a wide range of parameters including input sensitivity, HPF, delay, phase, EQ, compression, input routing, crossover, and limiter. This opens up a world of customisation never seen in MZ models and enables the installer to integrate an audio system tailor-made to the application.

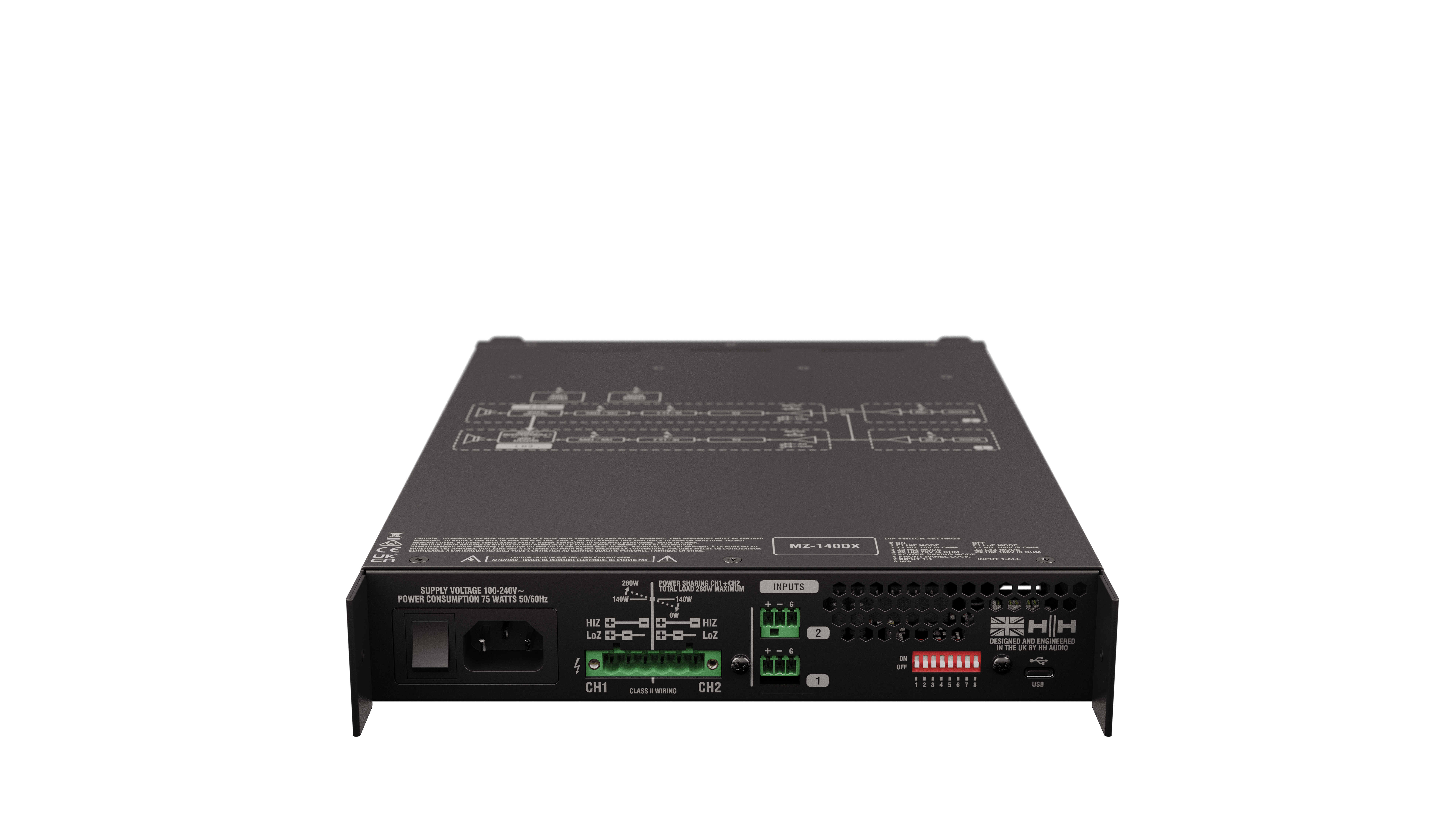

The compact half-rack 1U form factor of the MZ-140DX makes it a perfect choice for installation in tight spaces, with hardware included to surface-mount the unit or to connect two units side by side in a 1U 19-inch rack. The MZ-140DX gives you everything you need from a compact installation amplifier in a small system but has still been designed with system expansion in mind. The MZ-140DX makes the perfect companion for the MZ-64P zone controller and preamplifier, giving you greater dexterity with expanded input options, the possibility of adding MZ-C2 wall controllers to your system, emergency override input and manual paging input, all of which are easy to configure and control.
The MZ Series is perfect for those needing to control audio for several zones. The range includes 3 zone amplifiers, one pre-amp, and sleek wall controllers in either black or white and available as EU or US standard plates.
