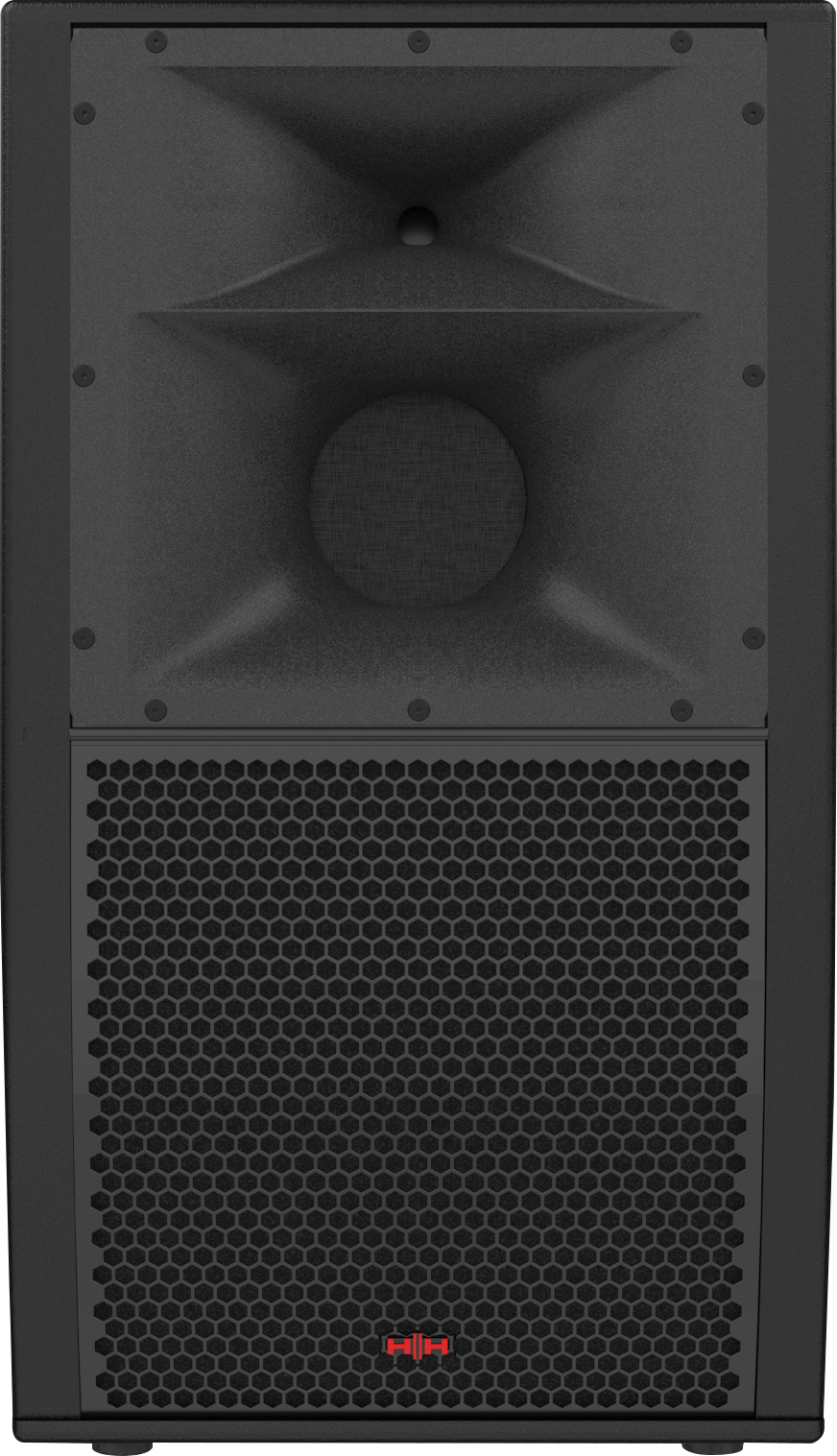

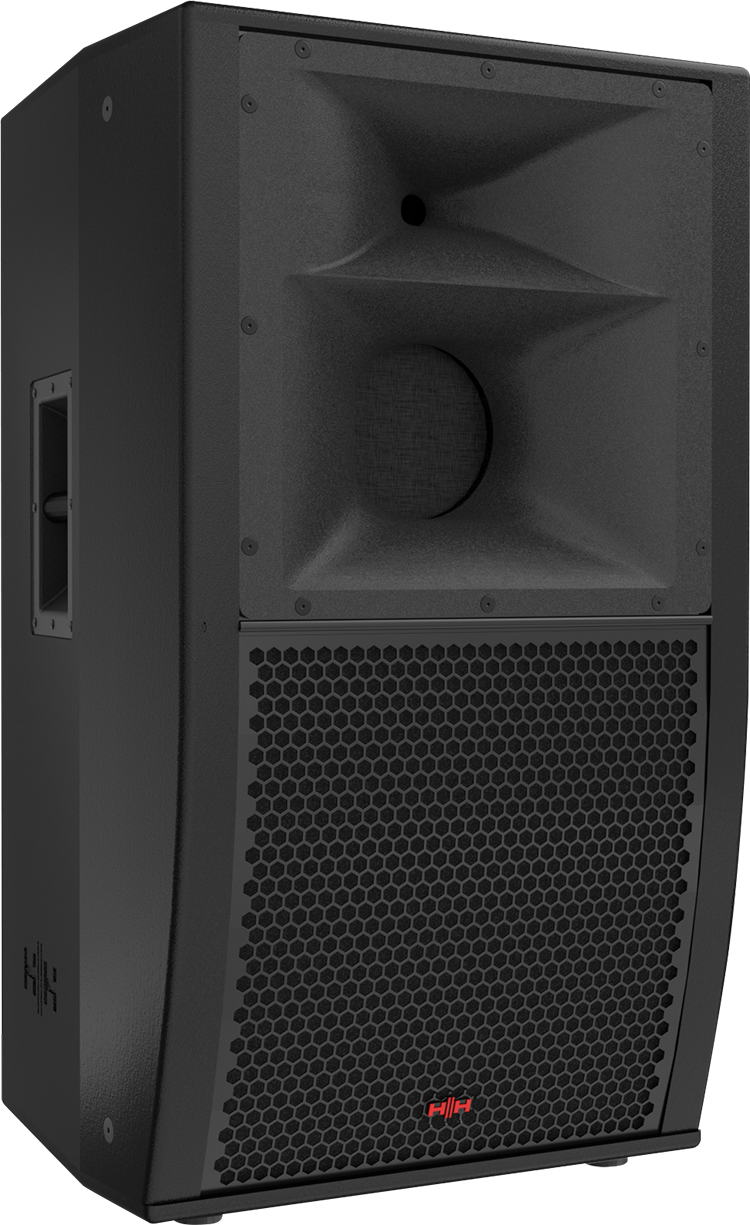

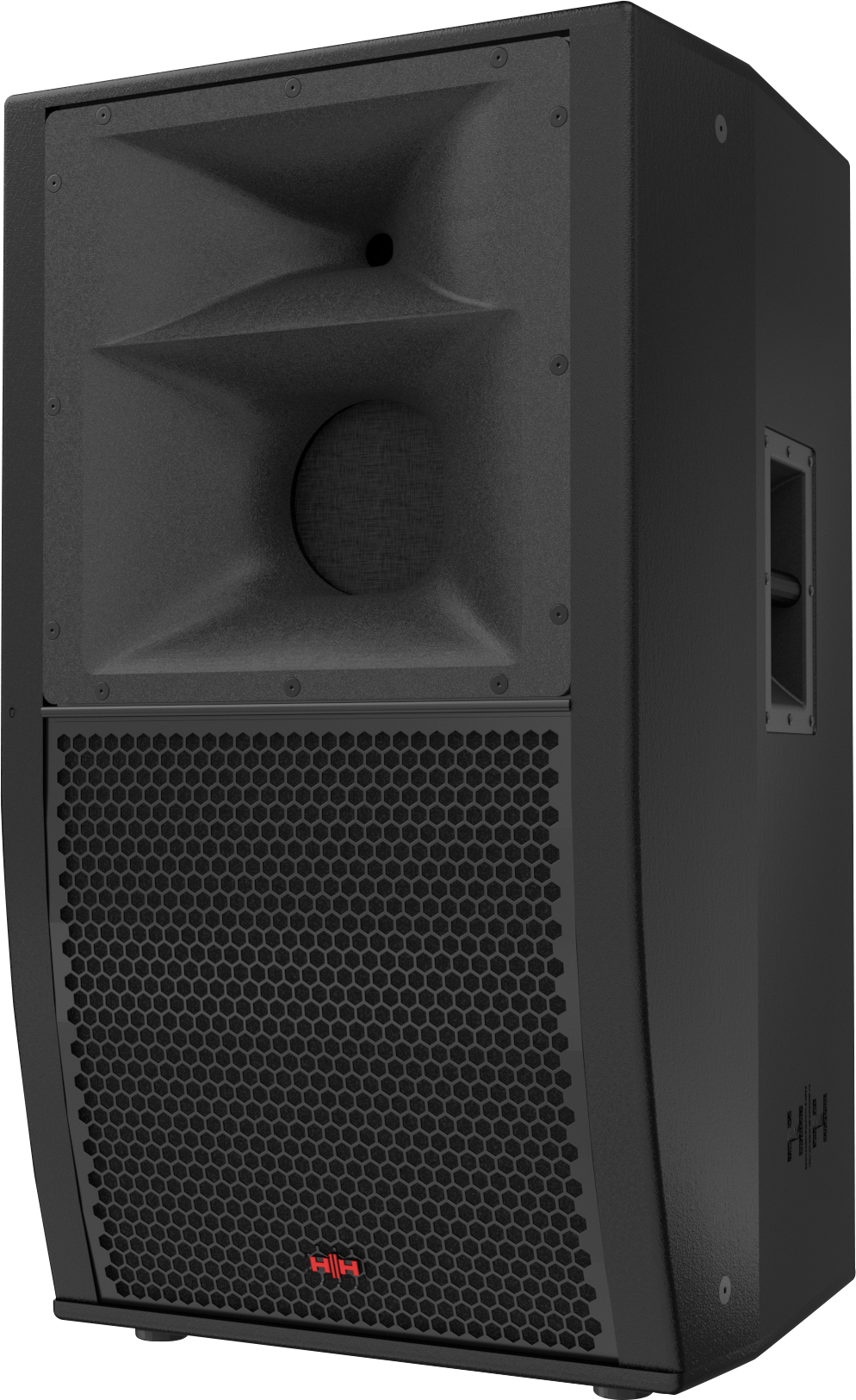

The P3-Array is a 3-way passive point source loudspeaker that comprises a single 15” carbon fibre LF driver, a single 10” Kevlar fibre mid-frequency driver alongside a 3” composite carbon fibre diaphragm high-frequency compression driver.
These specially crafted drive units combine to achieve line array performance and characteristics in a single enclosure. The P3-Array has a vast projection distance, improved consistency in scattering angle control plus a maximum SPL of 146dB (Peak). The P3-Array has a frequency response from 50Hz – 20kHz (±3dB). The P3-Array features a rotatable horn offering coverage angles of 80° (H) x 60° (V).

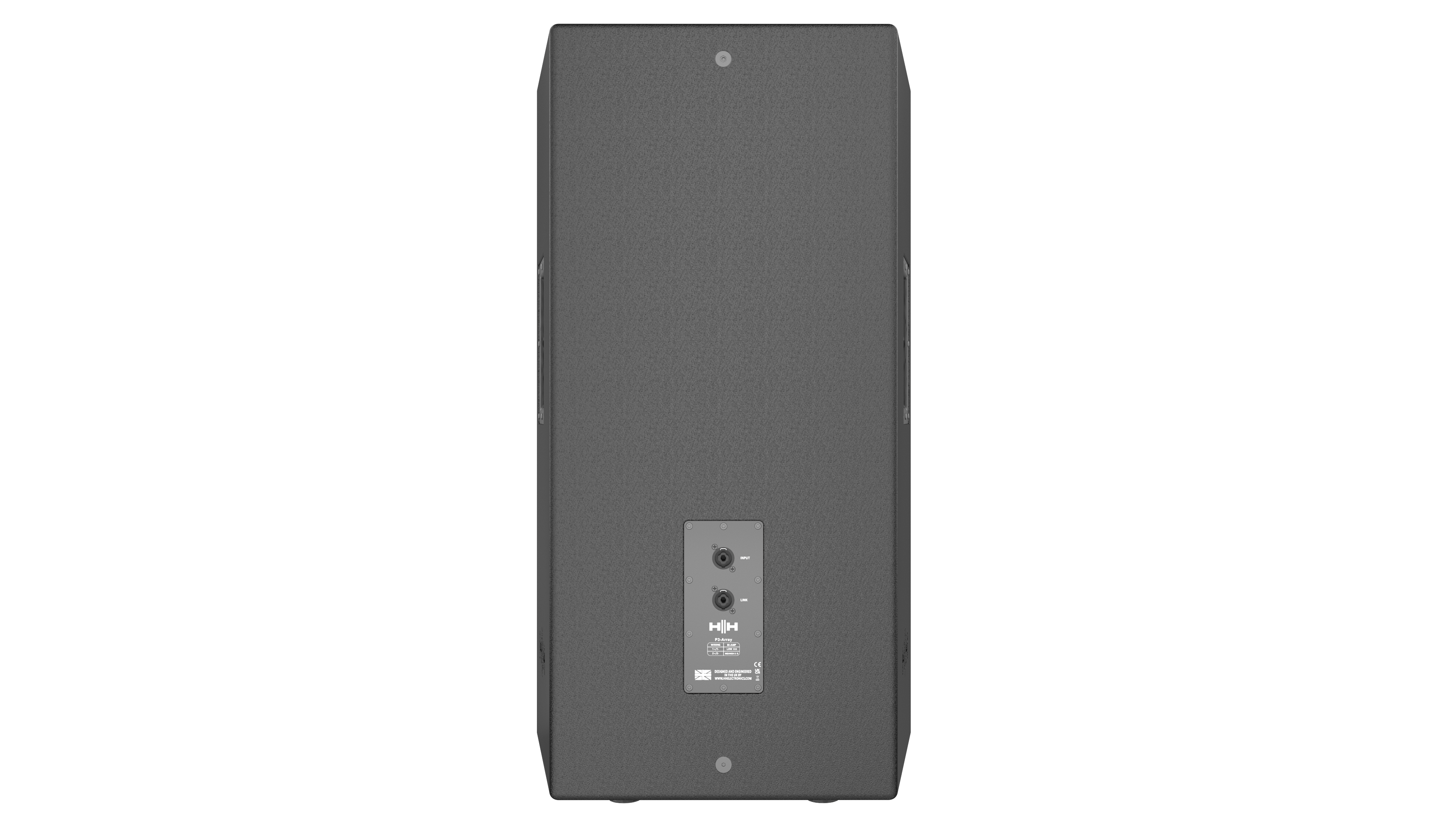

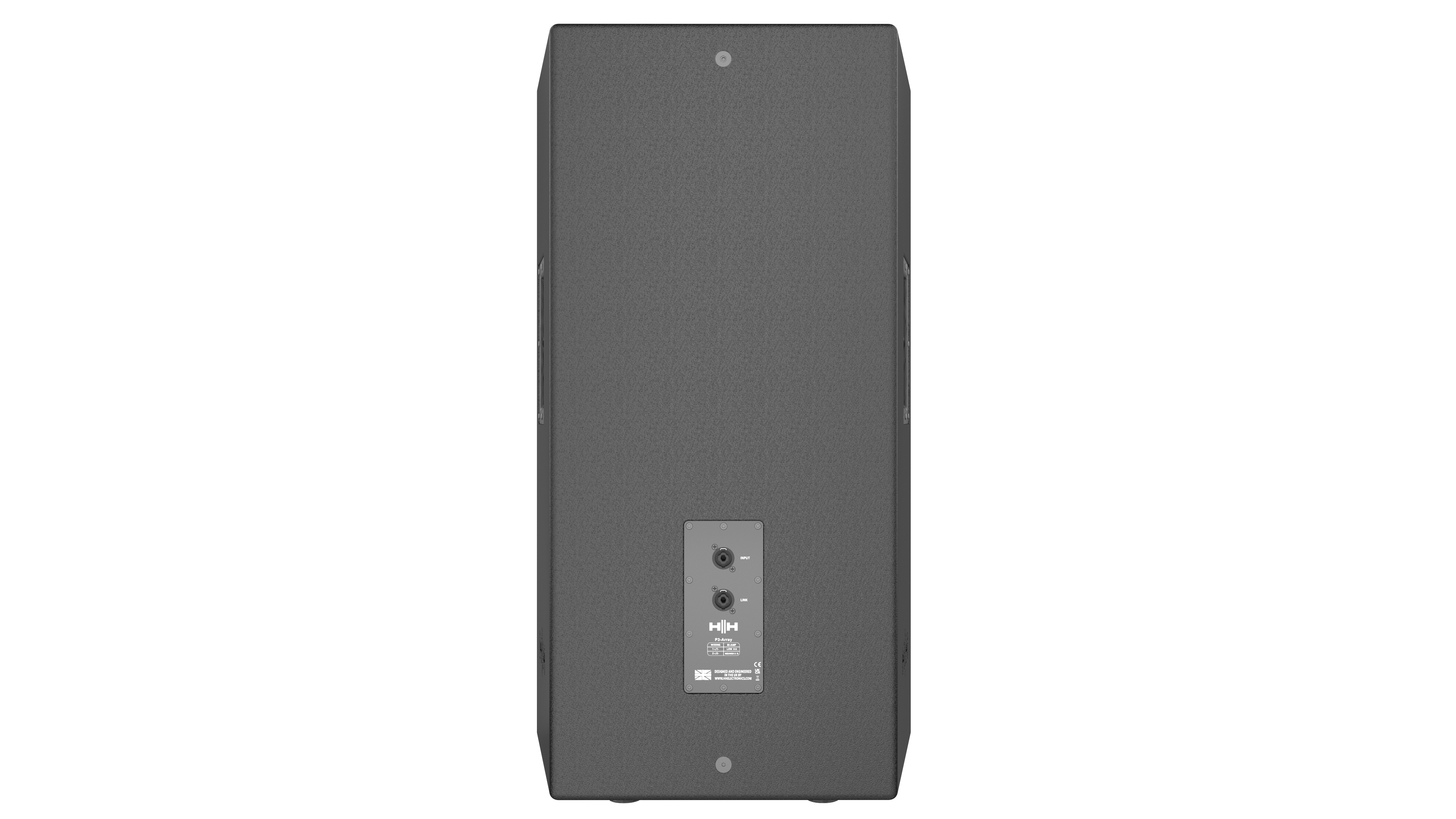

The cabinet has 7 x M8 mounting points and 2 side handles and is constructed of robust plywood, finished with hard-wearing black polyurea paint and fitted with a hexagonal mesh steel grille with acoustic foam backing.
Meticulously crafted to provide clarity, control and consistent coverage in the most demanding large scale applications.
Royal Series represents the pinnacle of audio engineering and performance from HH Audio. A range of products finely crafted to offer reliable and scalable live sound systems for the most demanding applications. The combination of cutting-edge acoustic technology and fine craftsmanship sets a new standard for large-scale systems with numerous configurations to suit a multitude of live sound requirements.
The series comprises passive line array enclosures (L2-Array, L3-Array, and L4-Array), passive subwoofer enclosures (GSE, GSE-H, GSS and GSD), passive 2-way point source loudspeakers (H8, H10, H12 and H15), constant curvature arrays (F1-Array, F2-Array), passive array point source loudspeakers (P2-Array and P3-Array) and a passive 2-way stage monitor (UM1).
Royal Series drive units are engineered to provide exquisite transient and phase response, utilising unique combinations of materials including Kevlar fibre and carbon fibre to drastically improve cone rigidity enabling an unbelievably high-power, low-distortion output well suited to large-scale touring and outdoor applications.
Royal Series systems are road-ready, with integrated rigging hardware and flexible flying options to make configuring a system of this scale as simple as possible. Each enclosure is finished with black polyurea to ensure that each product can withstand the toughest touring conditions.
Whether the application is live concerts, theatres, arenas, or large houses of worship, Royal Series systems guarantee reliability, scalability, and precise audio that engineers can confidently trust.
