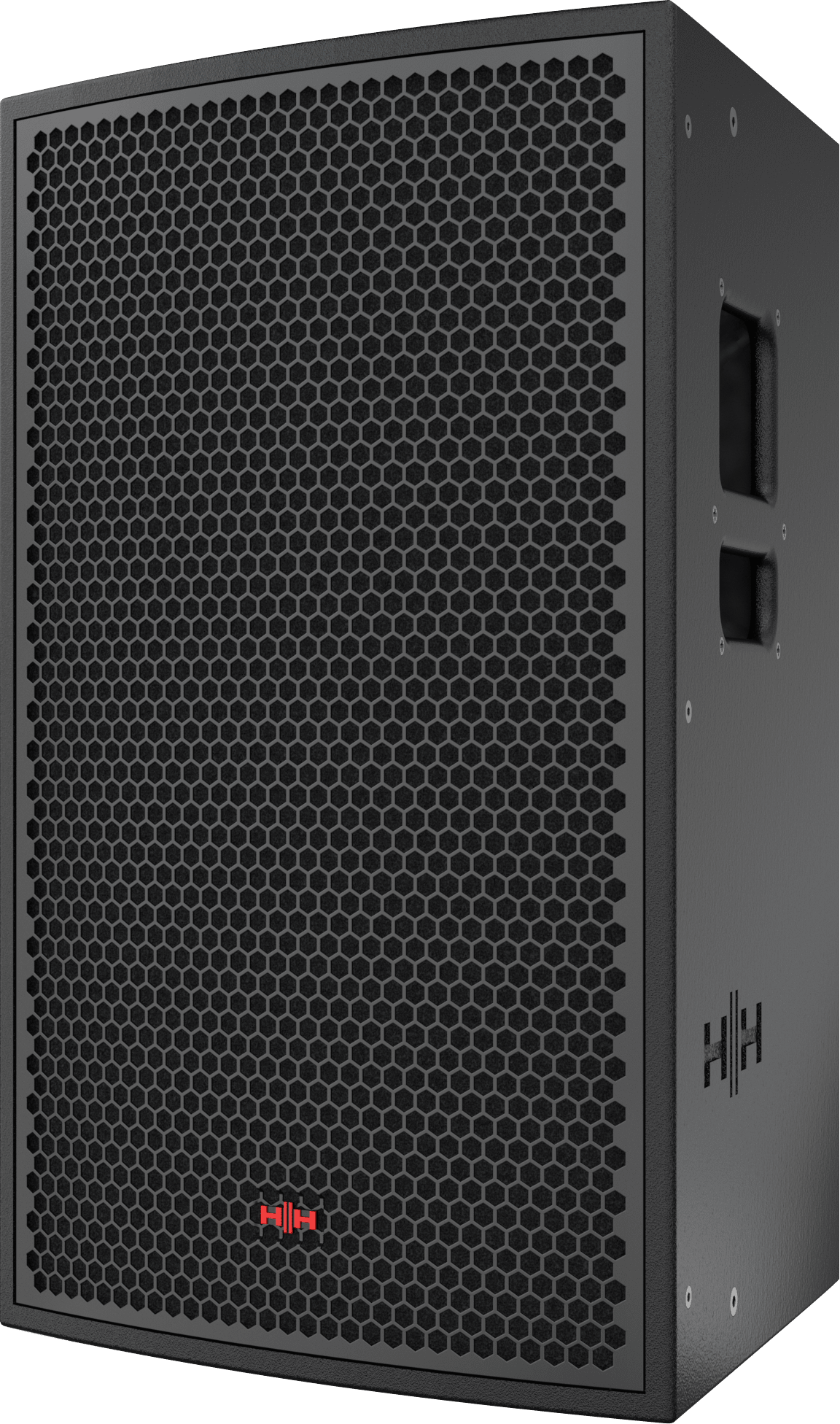

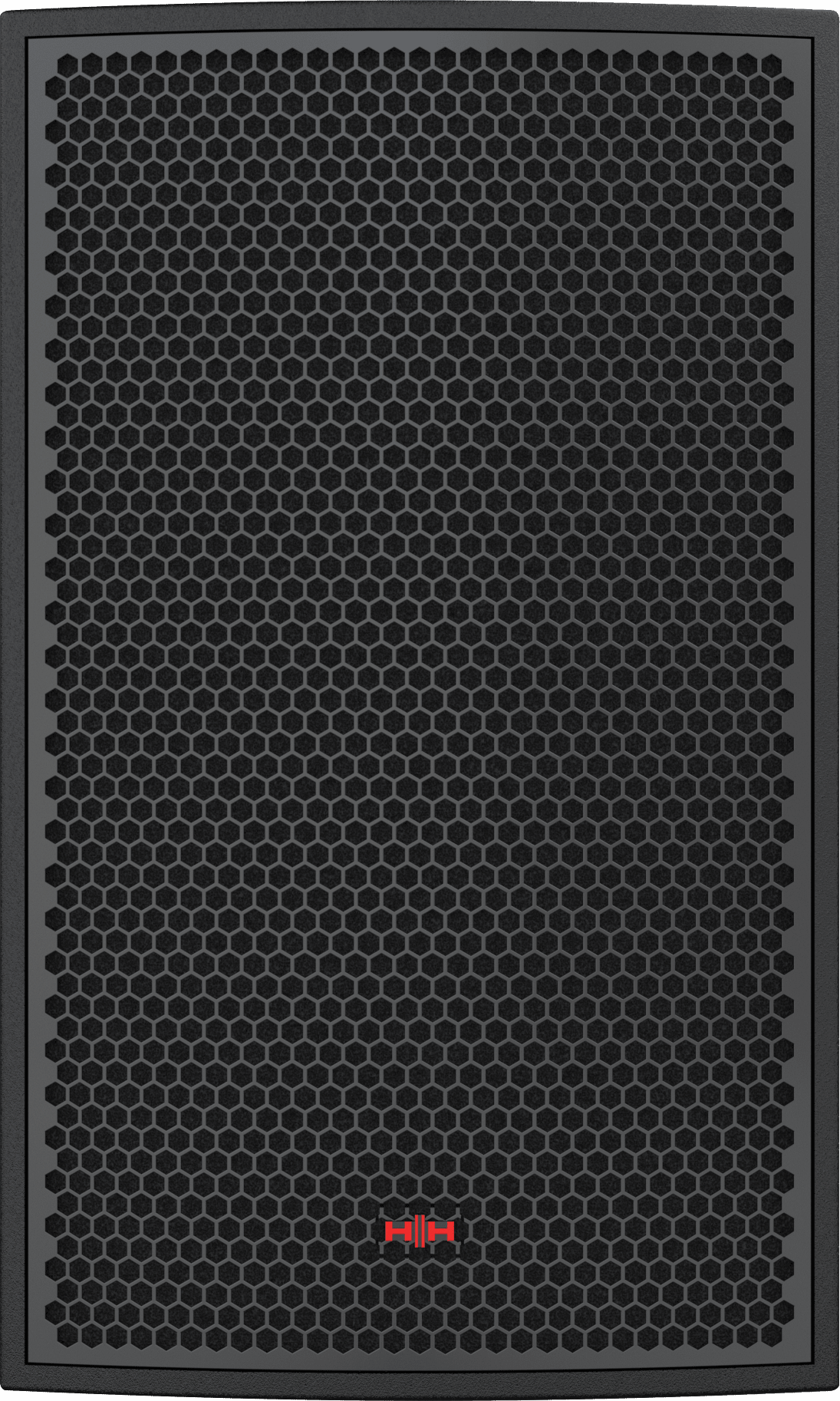

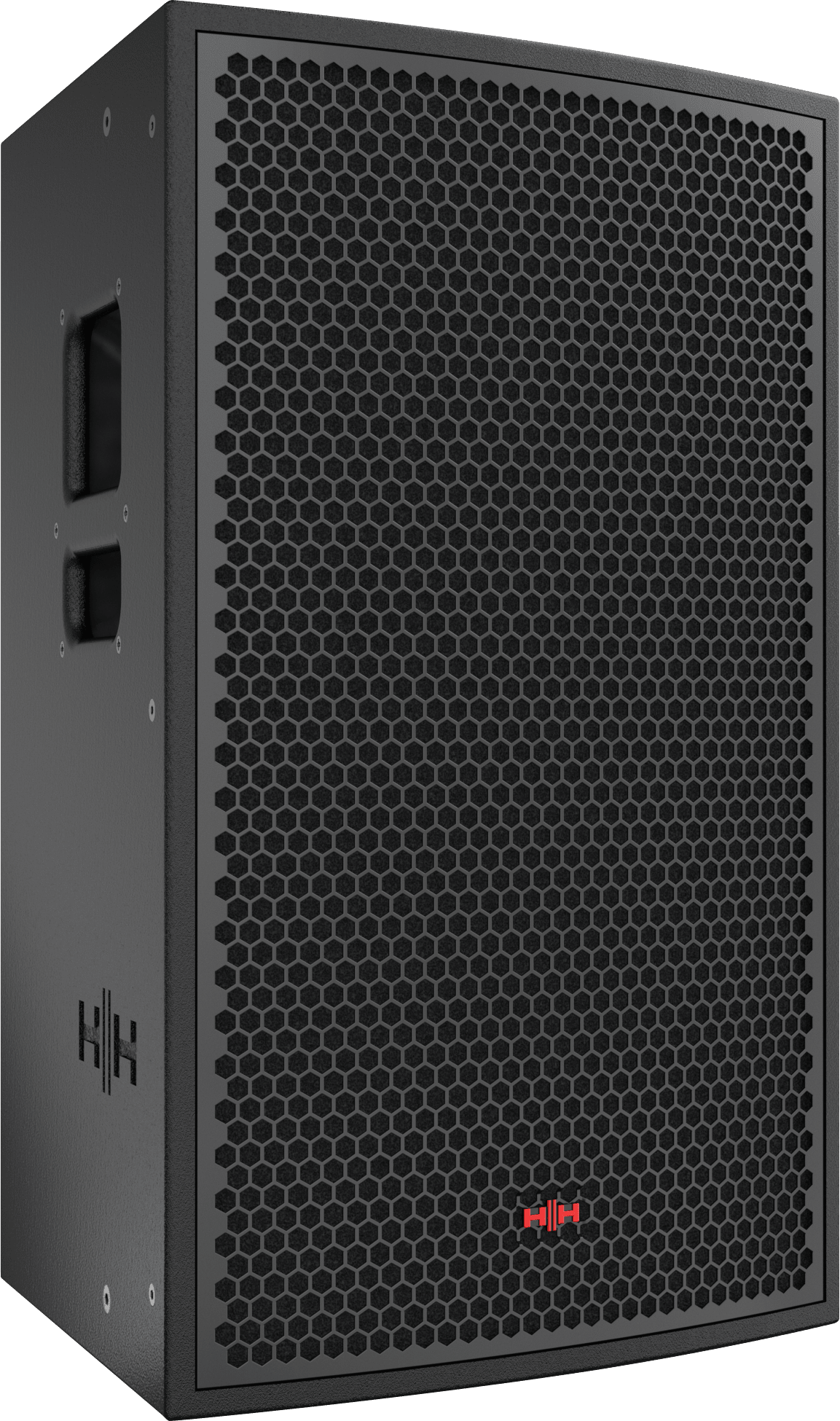

The H15 is a passive point source loudspeaker that comprises a single 15” LF driver alongside a 3” high-frequency compression driver. The LF driver cone is engineered to effectively suppress distortion caused by vibration and deformation caused in high power conditions by utilising an advanced carbon fibre cone.
The H15 also features a composite carbon fibre diaphragm tweeter. The system provides a maximum SPL of 133dB (Peak) and a frequency response from 40Hz – 18kHz (±3dB).
The H15 has a rotatable horn with 90° (H) x 60° (V) coverage angles.
Flexible mounting options include 12 x M8 mounting points plus a dual pole-mount socket with tilt options 0° and -10 °for further versatility.
The enclosure is composed of robust plywood with extensive internal bracing to eliminate vibrational modes. The H15 is finished with hard-wearing black polyurea paint and fitted with a hexagonal mesh steel grille with acoustic foam backing
Meticulously crafted to provide clarity, control and consistent coverage in the most demanding large scale applications.
Royal Series represents the pinnacle of audio engineering and performance from HH Audio. A range of products finely crafted to offer reliable and scalable live sound systems for the most demanding applications. The combination of cutting-edge acoustic technology and fine craftsmanship sets a new standard for large-scale systems with numerous configurations to suit a multitude of live sound requirements.
The series comprises passive line array enclosures (L2-Array, L3-Array, and L4-Array), passive subwoofer enclosures (GSE, GSE-H, GSS and GSD), passive 2-way point source loudspeakers (H8, H10, H12 and H15), constant curvature arrays (F1-Array, F2-Array), passive array point source loudspeakers (P2-Array and P3-Array) and a passive 2-way stage monitor (UM1).
Royal Series drive units are engineered to provide exquisite transient and phase response, utilising unique combinations of materials including Kevlar fibre and carbon fibre to drastically improve cone rigidity enabling an unbelievably high-power, low-distortion output well suited to large-scale touring and outdoor applications.
Royal Series systems are road-ready, with integrated rigging hardware and flexible flying options to make configuring a system of this scale as simple as possible. Each enclosure is finished with black polyurea to ensure that each product can withstand the toughest touring conditions.
Whether the application is live concerts, theatres, arenas, or large houses of worship, Royal Series systems guarantee reliability, scalability, and precise audio that engineers can confidently trust.
