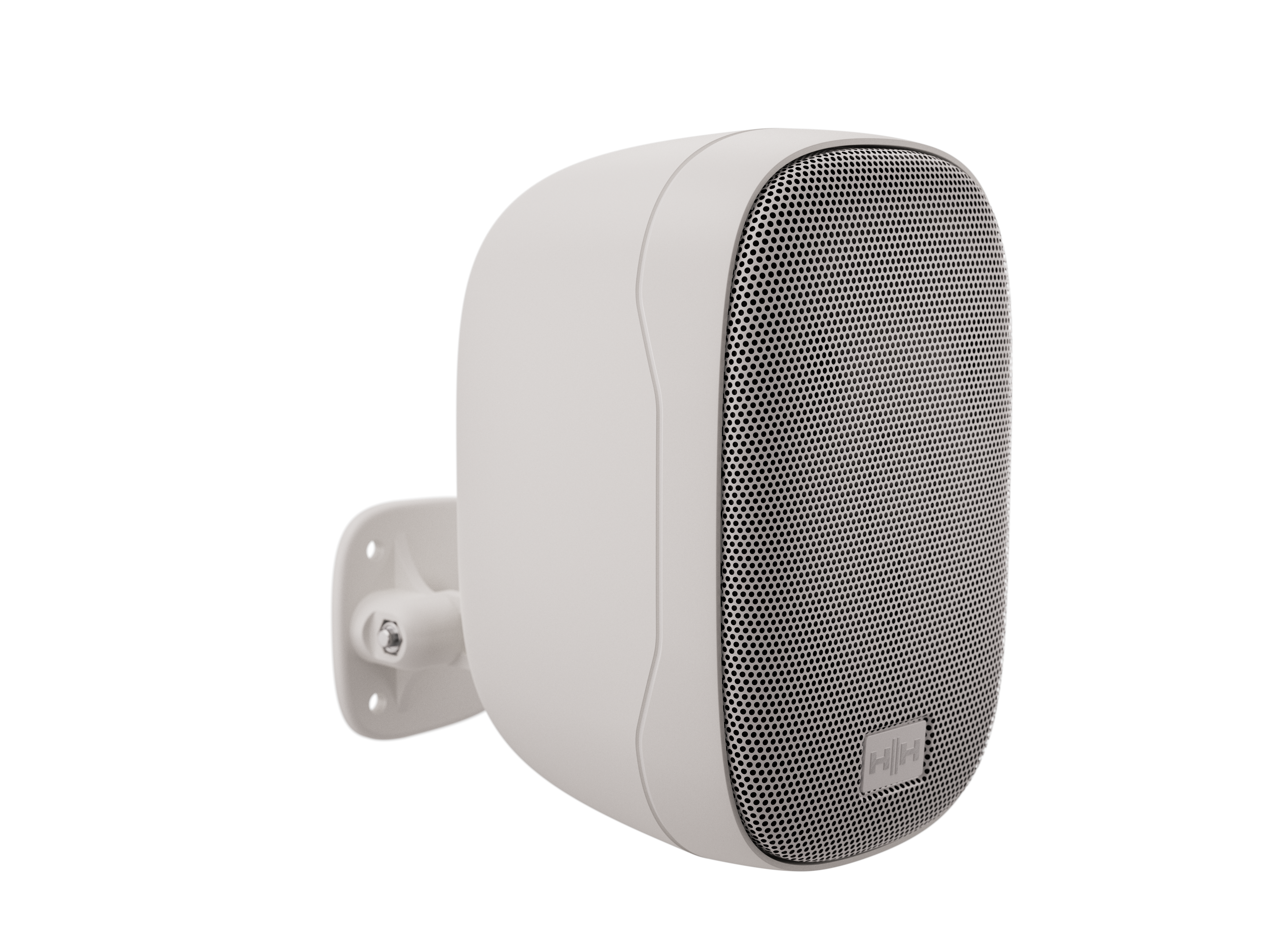

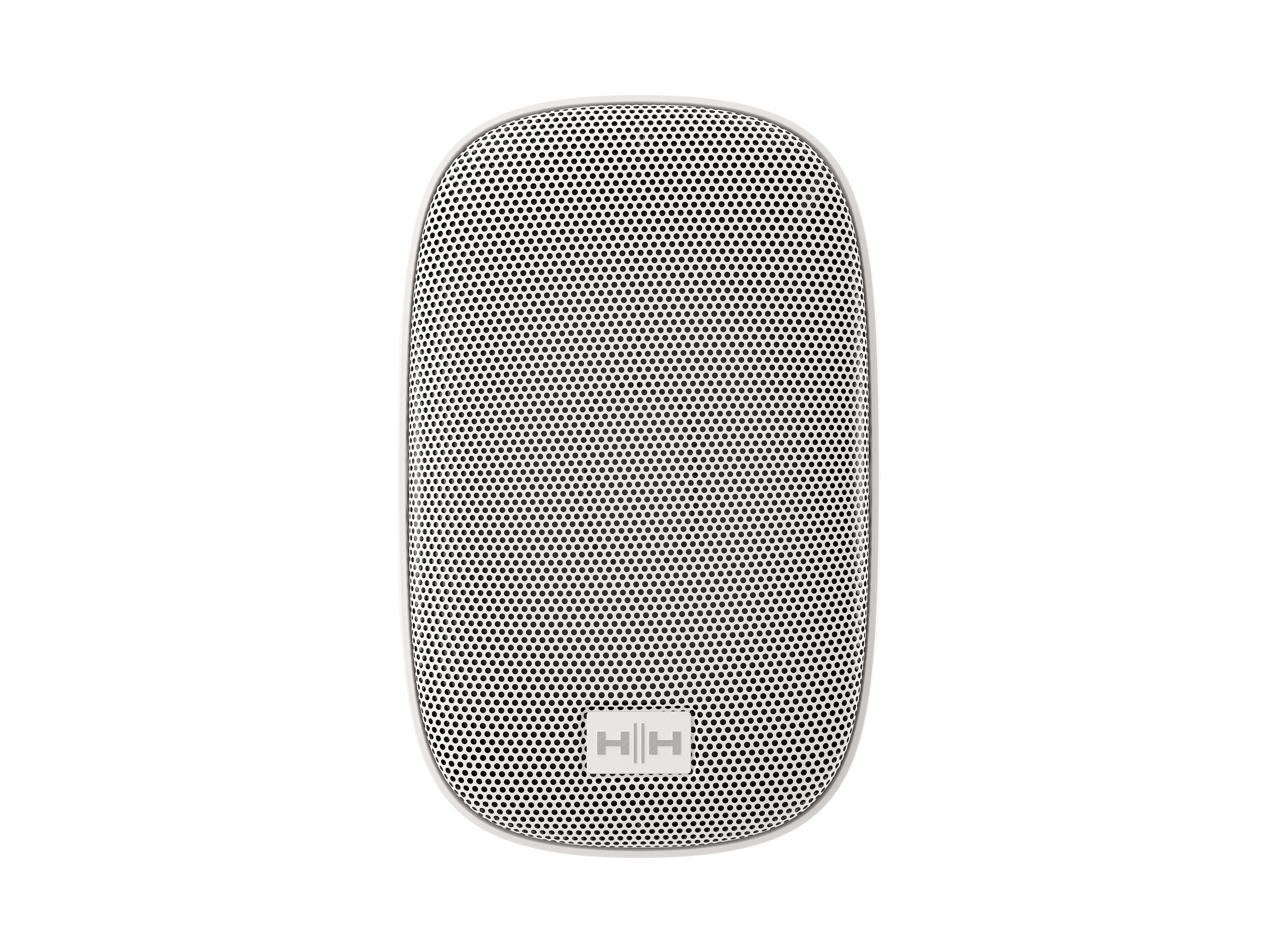

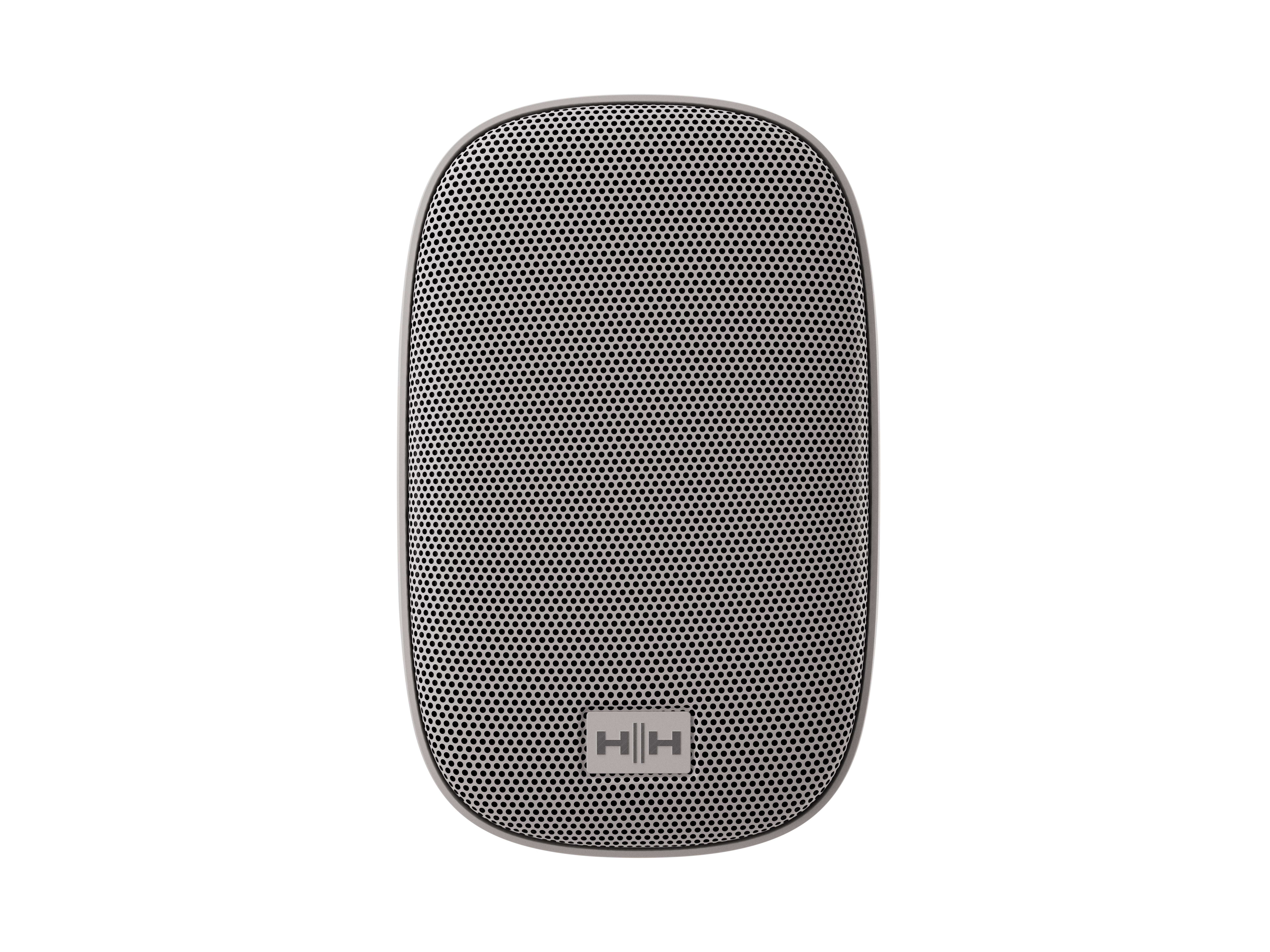

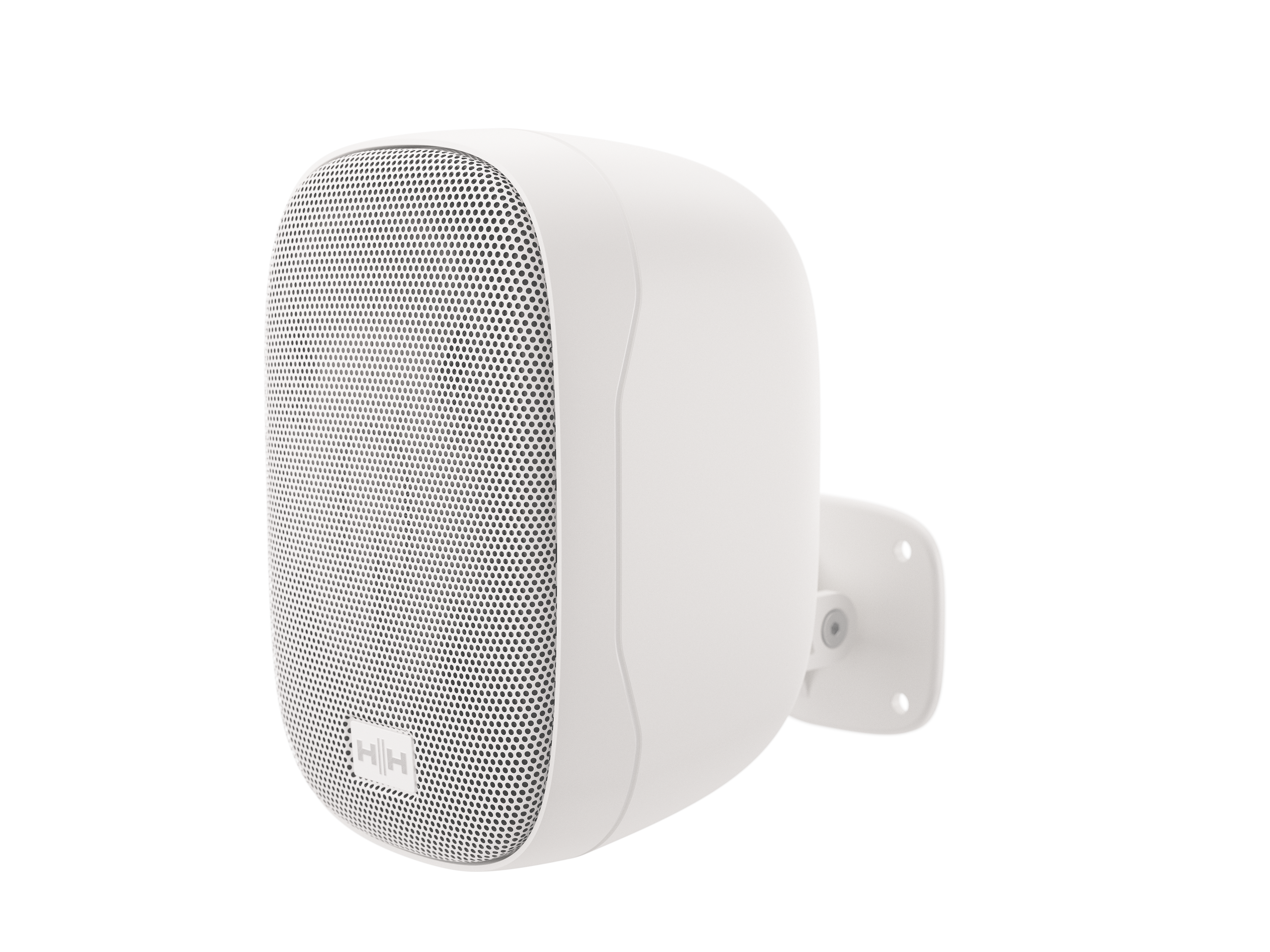

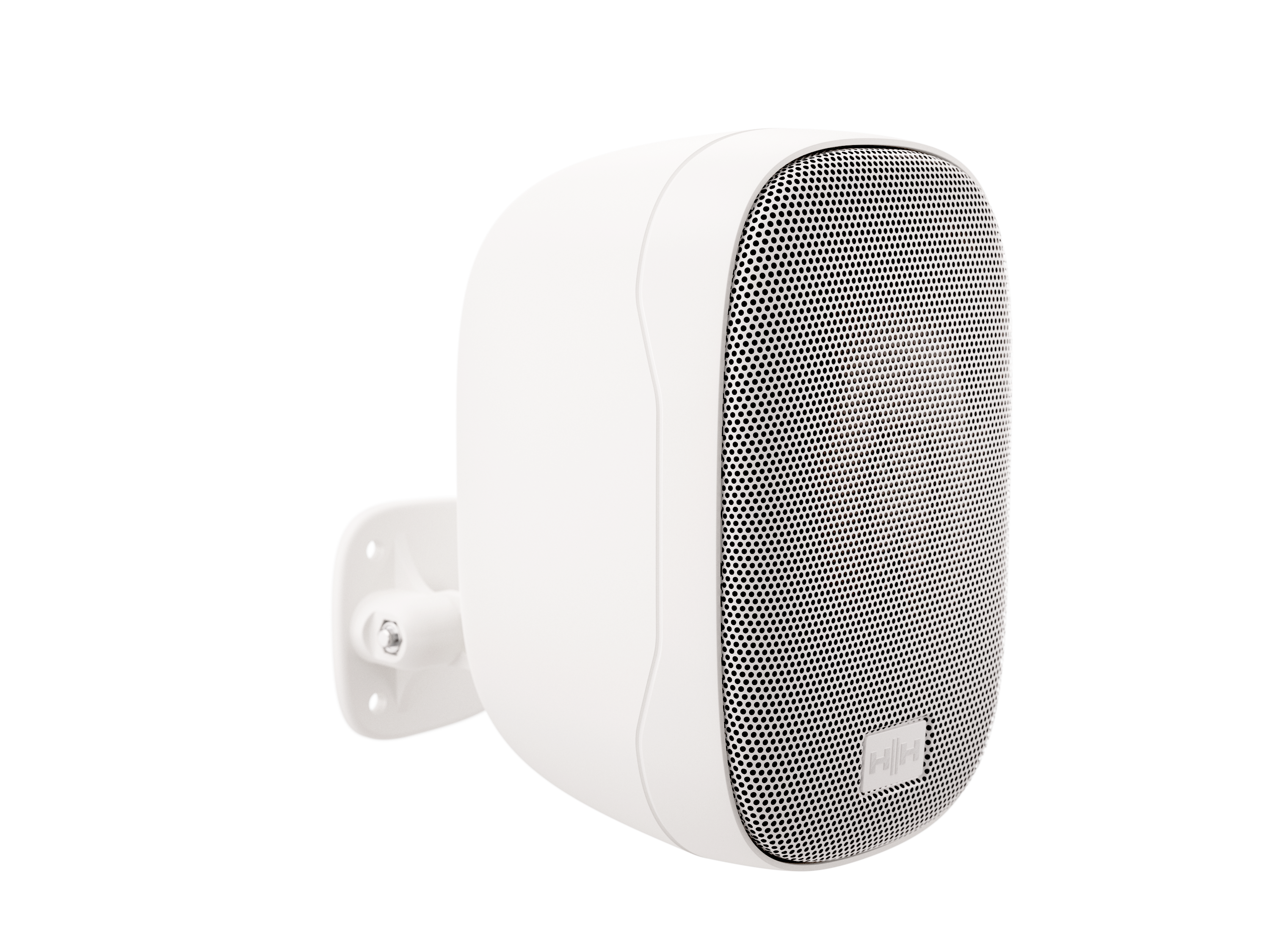

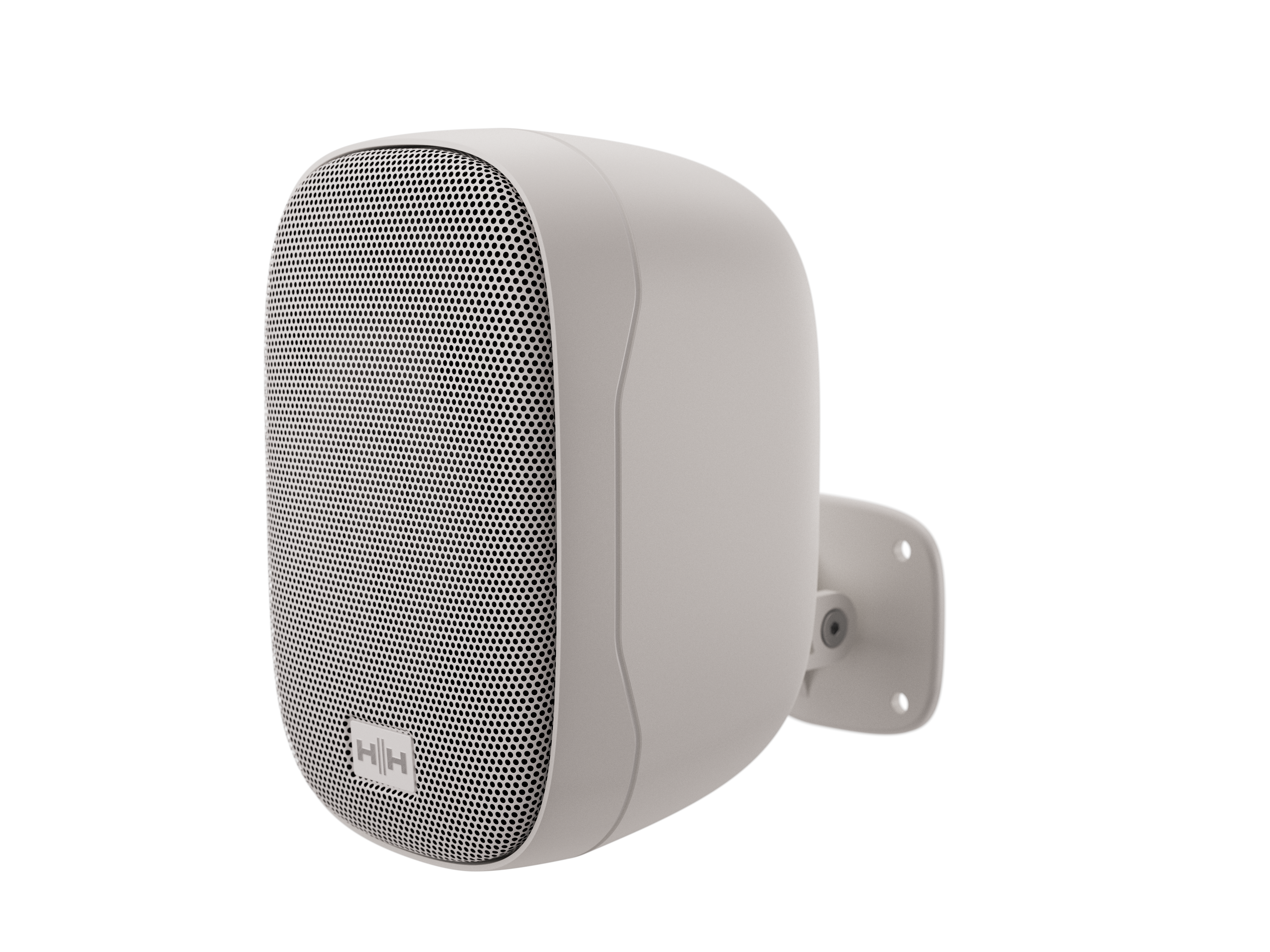

TNi-WX3-WH

The TNi-WX3 is a 2-way passive design featuring a 3.5-inch low-frequency driver and a 0.5-inch high-frequency driver that provide a beautifully balanced, natural and dynamic listening experience, with excellent speech intelligibility and exceptional detail for background music applications. With a sensitivity of 83dB (1W/1m) and a power handling of 30W RMS, the TNi-WX3 yields a max SPL of 97dB and is well suited to commercial spaces, hospitality venues, retail locations and outdoor environments. 

The TNi-WX3 is designed for flexibility, suitable for Lo-Z systems with a nominal system impedance of 8 Ohms, and an internal line transformer with tappings from 15W down to 2.5W, expanding the potential applications to include large-scale 70V/100V audio systems.

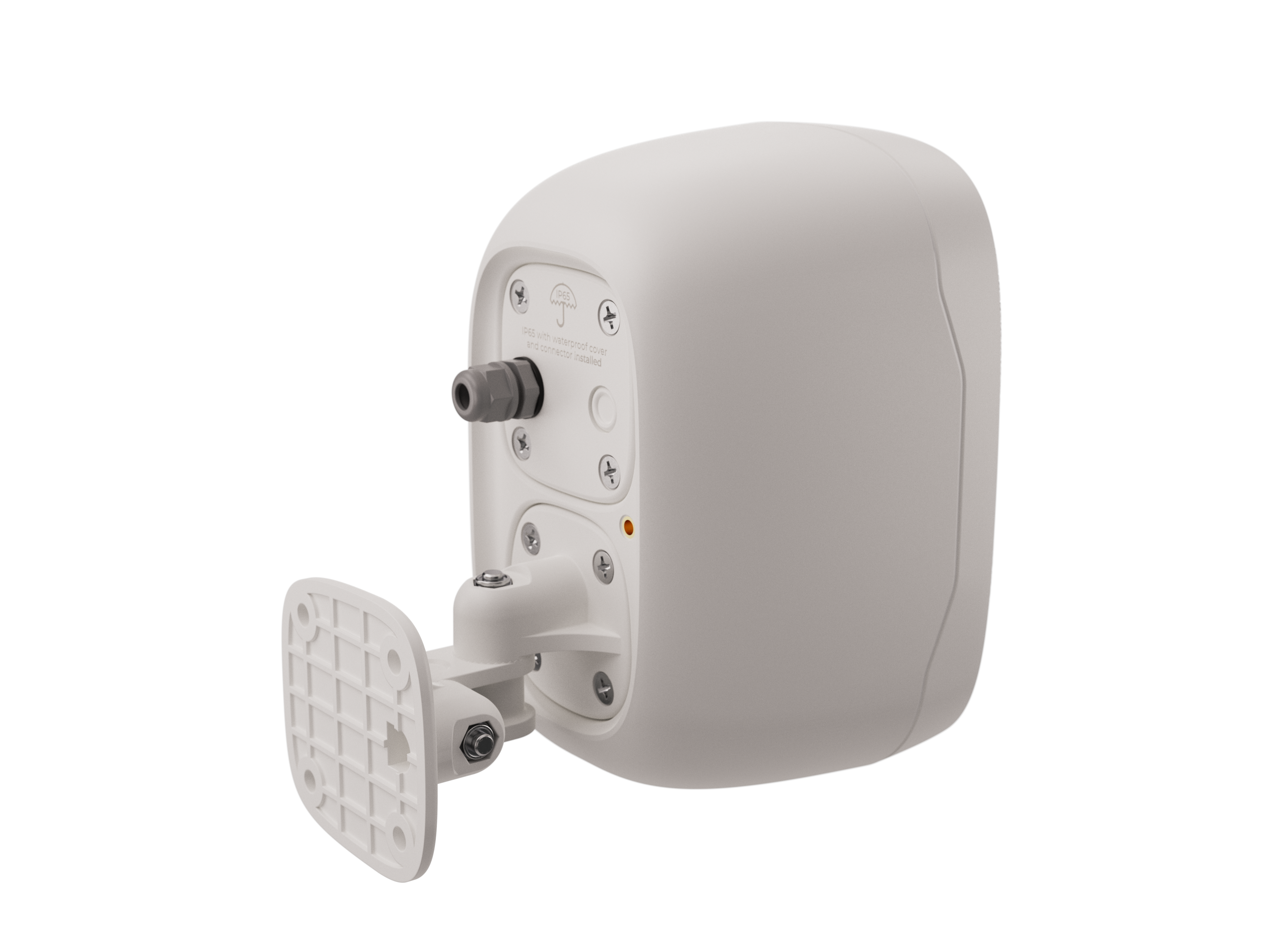

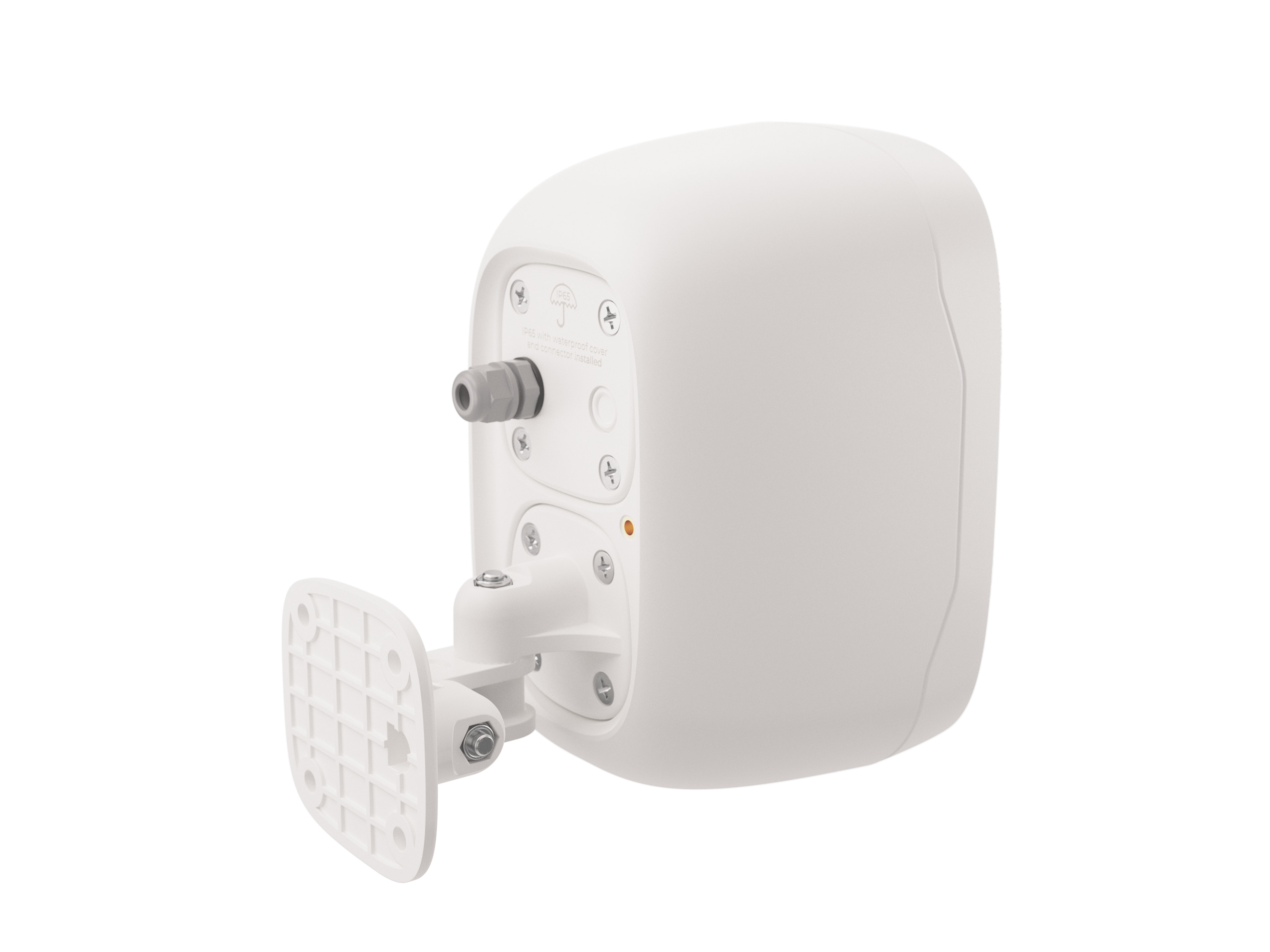

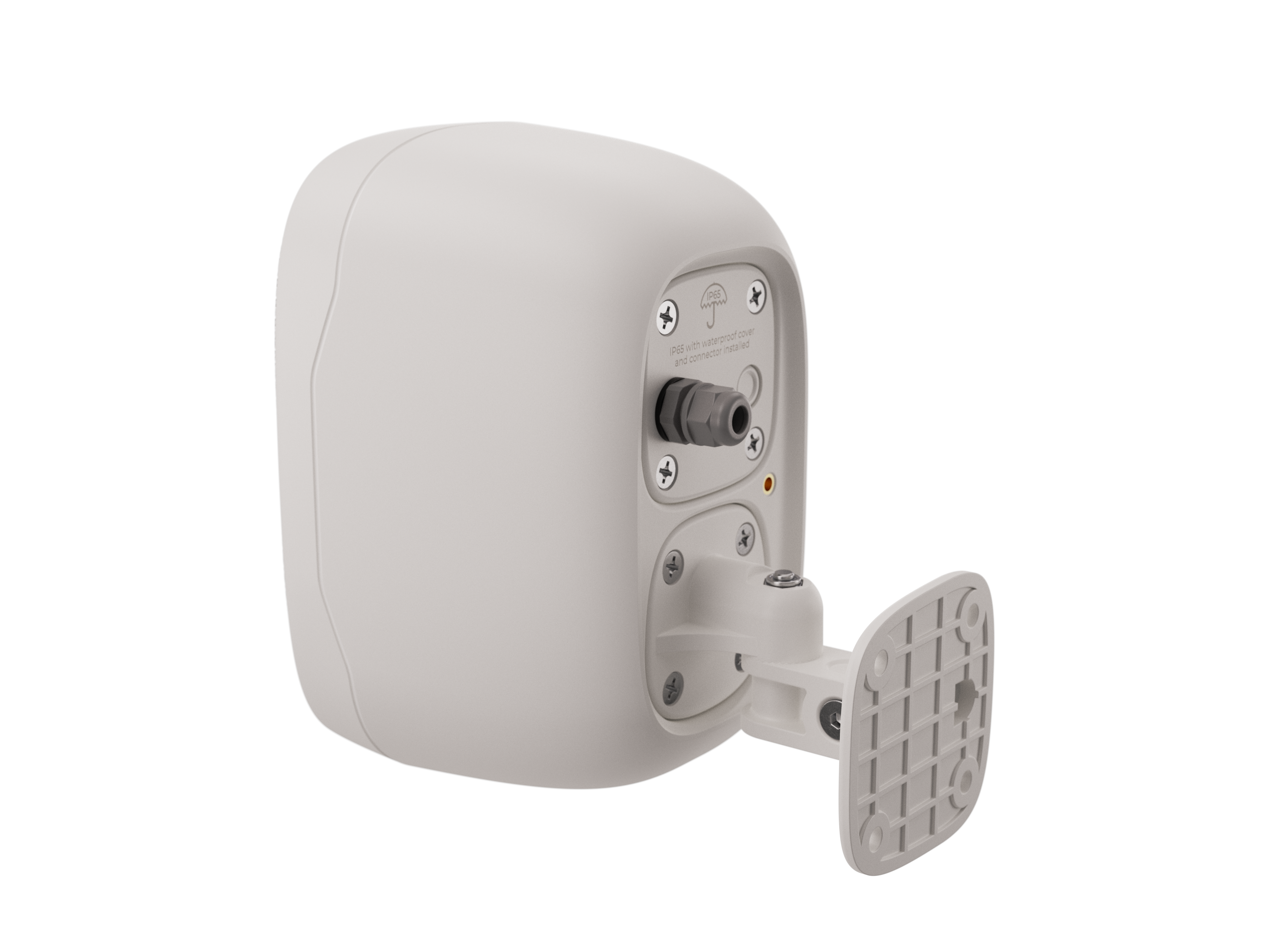

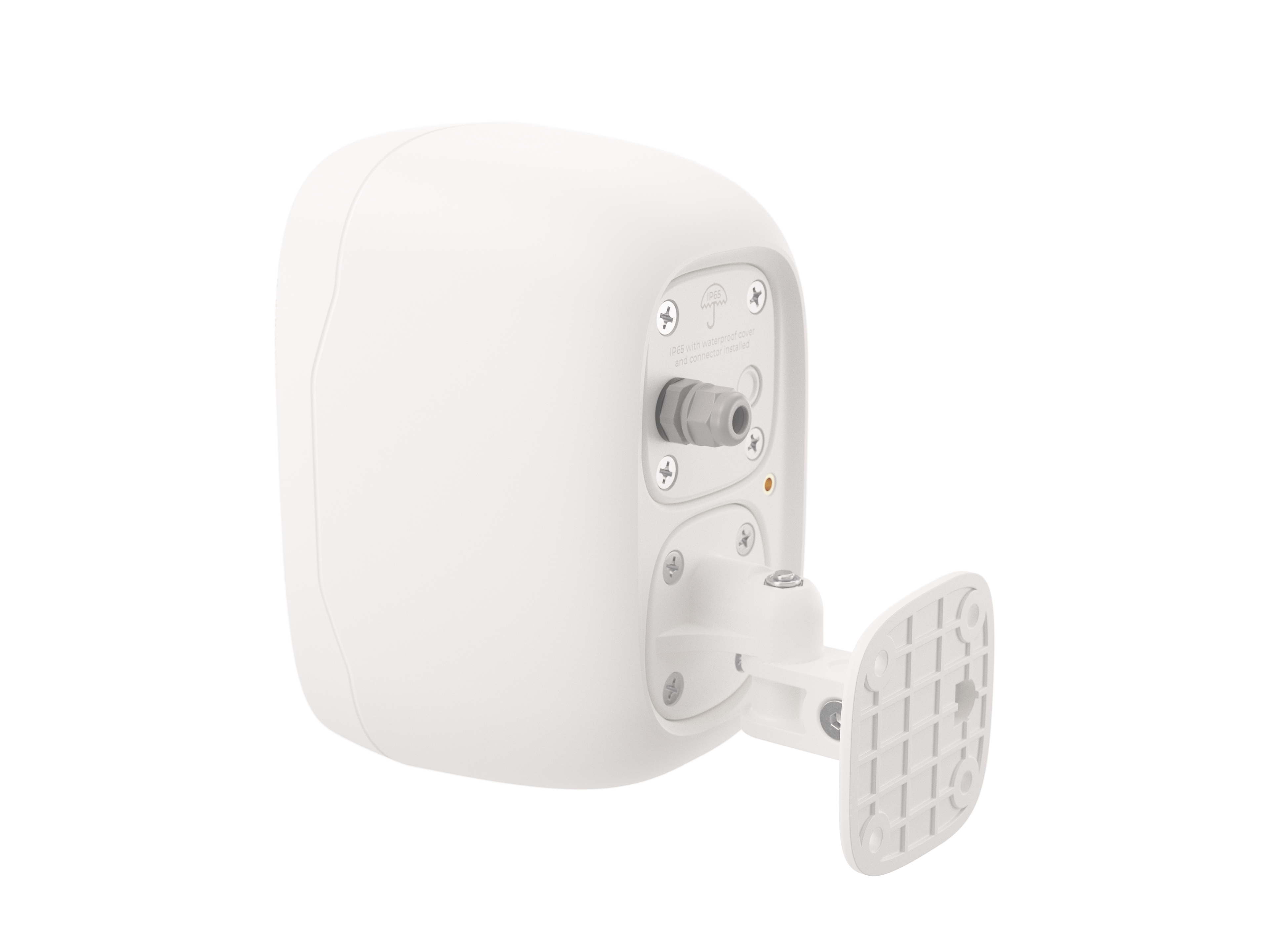

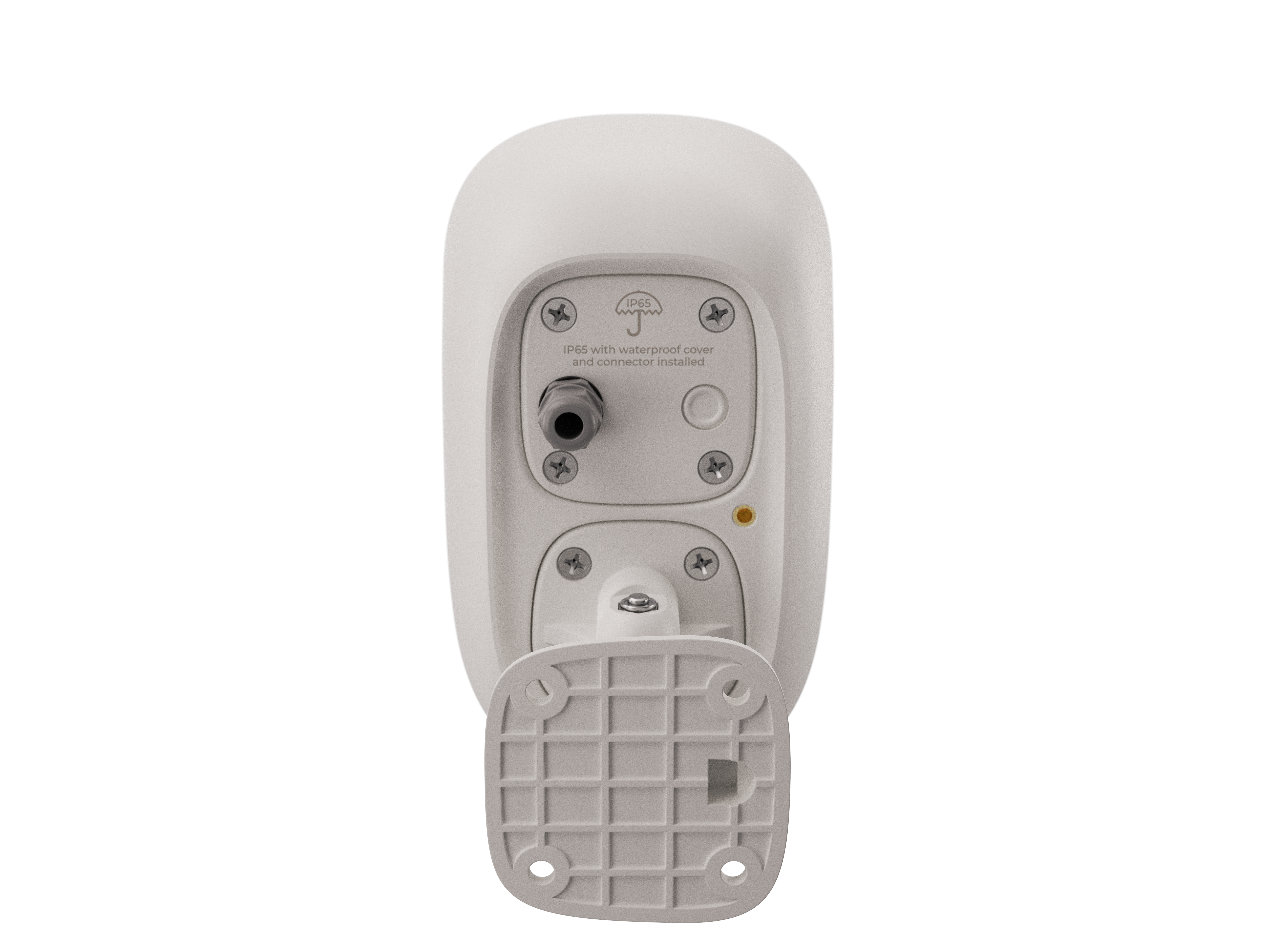

The TNi-WX3 is built for durability when used in both indoor and outdoor applications, featuring a cabinet constructed from UV-resistant ABS, an aluminium grille and a rear cable gland panel. These features combine to achieve an IP rating of IP65, making this an ideal weather-resistant audio solution.  

The compact form factor (191 x 120 x 125mm), lightweight design (1.7kg) and included pan & tilt wall bracket all contribute to a fast and simple installation.  

Features

  • System Type
    2-Way Passive Surface Mount Loudspeaker
  • LF Driver
    3.5-inch
  • HF Driver
    0.5-inch
  • Nominal System Impedance
    8 Ohms
  • Power
    30W RMS, 120W Peak
  • 70V Power Options
    7.5W, 5W, 3.75W, 2.5W
  • 100V Power Options
    15W, 10W, 7.5W, 5W
  • Recommended Amplifer
    MZ-140DX, MZ-140D, MZ-140Q or equivalent 70W - 140W @ 8 Ohms amplifier.
  • Sensitivity (1W/1M)
    83dB
  • Max SPL (1M) (Peak)
    97dB, 103dB (Peak)
  • Input Link Connector
    4-pin Euroblock
  • Horiz. Dispersion Angle 1000Hz
    120°
  • Vertical Dispersion Angle 1000Hz
    70°
  • Main Construction Material
    ABS
  • Finish
    White
  • Grille
    Aluminium
  • Mounting Bracket
    Pan & Tilt Wall Bracket Included
  • Accessories
    Cable Gland Panel for Outdoor Use.

Installation Speaker System

The HH TNi range offers exceptional installation sound, with a variety of models to suit different sizes of space and power requirements. Options include ceiling and wall mount speakers, available in both white and black to match any aesthetic in your venue. All models feature wide frequency responses, controlled directivity, and excellent vocal clarity to suit a wide range of settings from music venues to retail stores.

For the complete system solution these speakers work great when combined with HH M Series amplifiers and MZ Series zone controllers.
