TNi-C4

Tessen Install Series

TNi-C4

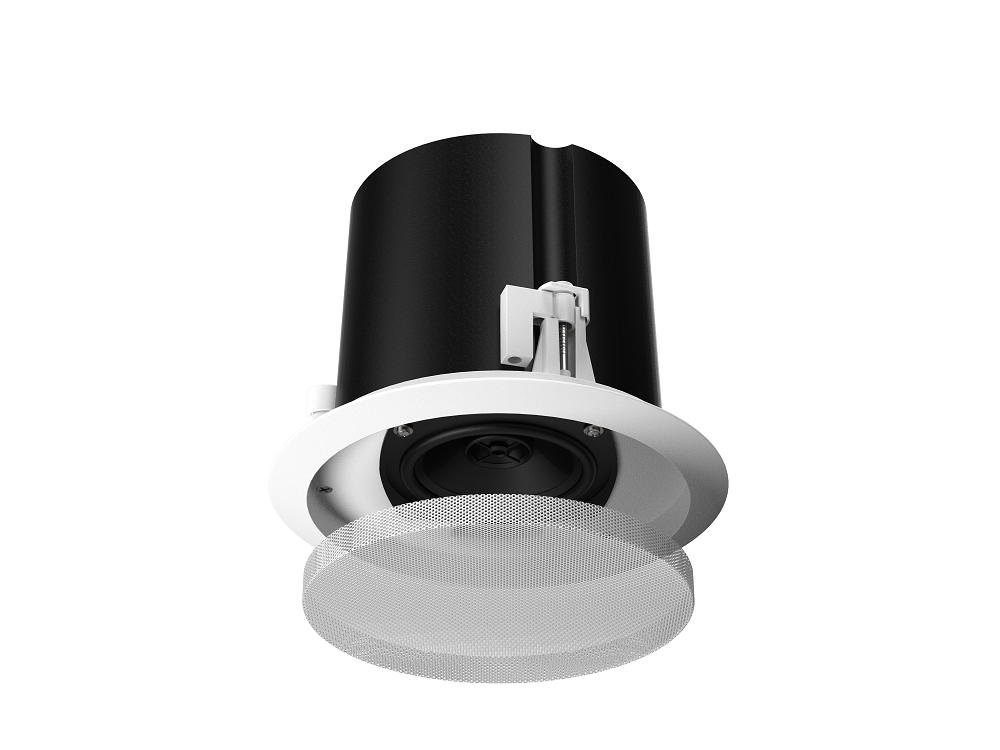

The Tessen TNi-C4 delivers premium audio reinforcement. Designed with the installer in mind, The TNi-C4 – 4 inch coaxial ceiling speaker - features a 6 position power tap selector located under the front steel grille, providing swift output adjustment once installed. With connectivity for 70V/100V and 8 ohm low impedance lines, The TNi-C4 delivers a highly flexible solution. The spring connection terminals ensure cables are secure once fitted.

Features

  • 100V Power Options
    30W, 15W, 6W
  • 70V Power Options
    15W, 7.5W, 3W
  • Frequency Response (-10)
    85Hz - 20KHz
  • Frequency Response (-3)
    100Hz - 16KHz
  • LF Driver
    4 Inch, Paper Cone
  • HF Driver
    1.5 inch Neodymium
  • Low Nominal System Impedance
    8 OHM
  • Power
    45W AES, 180W Peak
  • Max SPL (1M) (Peak)
    111 dB
  • Sensitivity (1W/1M)
    88 DB SPL
  • Recommended Amplifer
    80-160W @ 8 Ohms
  • Nominal Coverage
    130° conical
  • Input Connector
    PUSH SPRING CONNECTORS
  • Mounting Points
    3X DOG EAR BRACKETS
  • Mounting Depth
    156mm, 6.1 Inches
  • Installation Grip Range
    4 - 20mm
  • Cutout
    180mm, 7.1 Inches
  • Outside Diameter
    204mm, 8 Inches
  • Unit Weight
    1.4KG, 3.1 LBS
  • Main Construction Material
    ABS PLASTIC
  • Grille
    1.5MM CIRCULAR MESH STEEL
  • Finish
    WHITE

Installation Speaker System

The HH TNi range offers exceptional installation sound, with a variety of models to suit different sizes of space and power requirements. Options include ceiling and wall mount speakers, available in both white and black to match any aesthetic in your venue. All models feature wide frequency responses, controlled directivity, and excellent vocal clarity to suit a wide range of settings from music venues to retail stores.

For the complete system solution these speakers work great when combined with HH M Series amplifiers and MZ Series zone controllers.
