TNi-W8PRO-WH

Tessen Install Series

TNi-W8PRO-WH

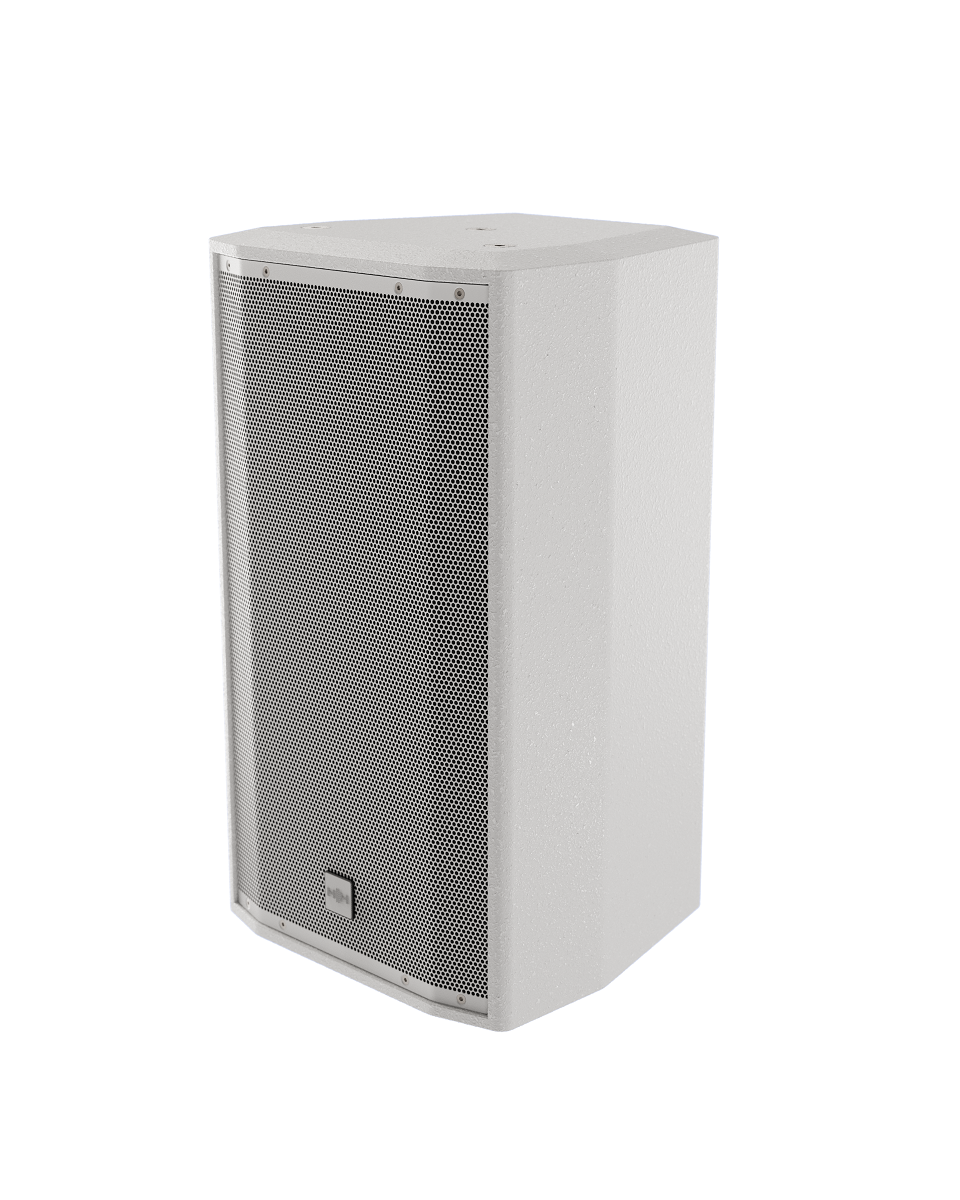

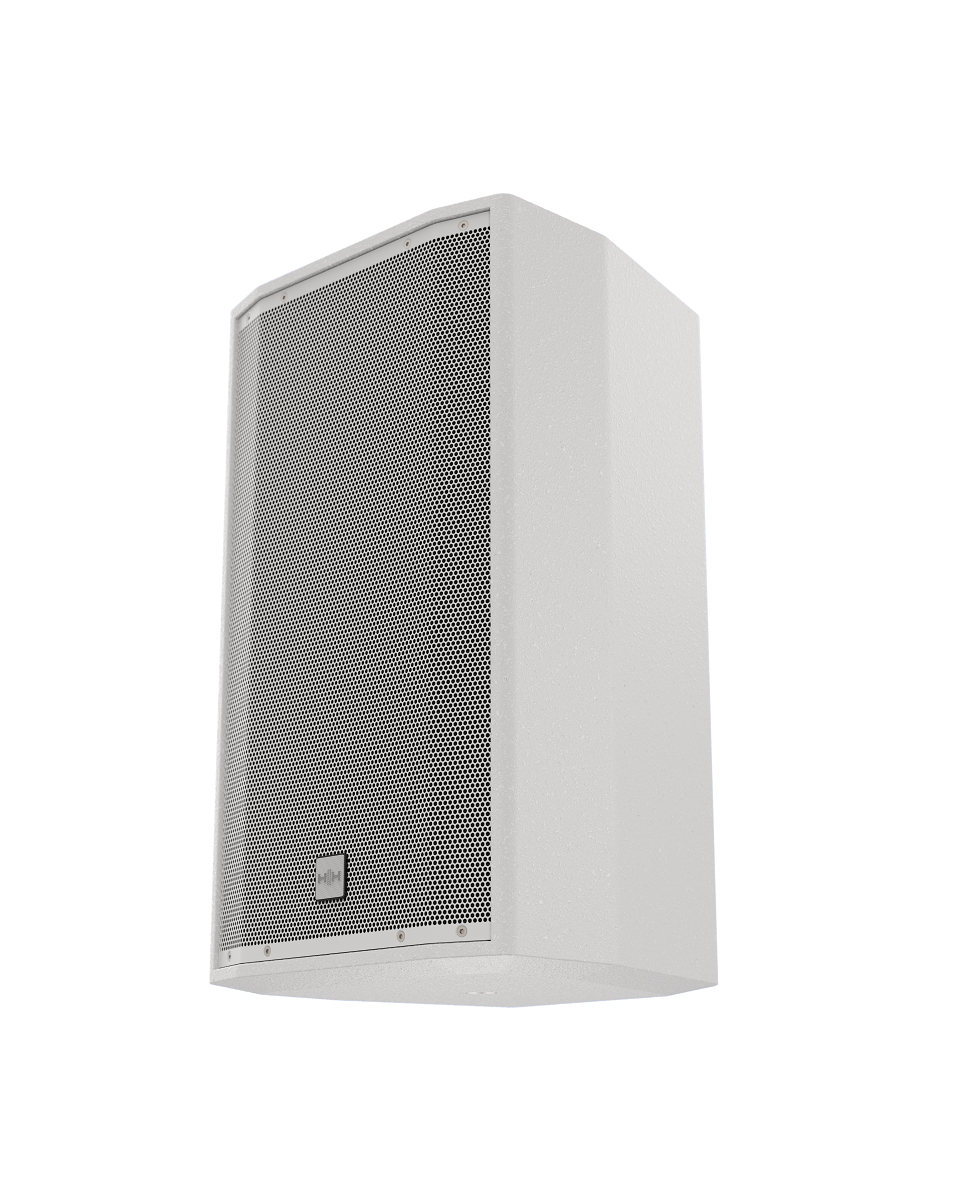

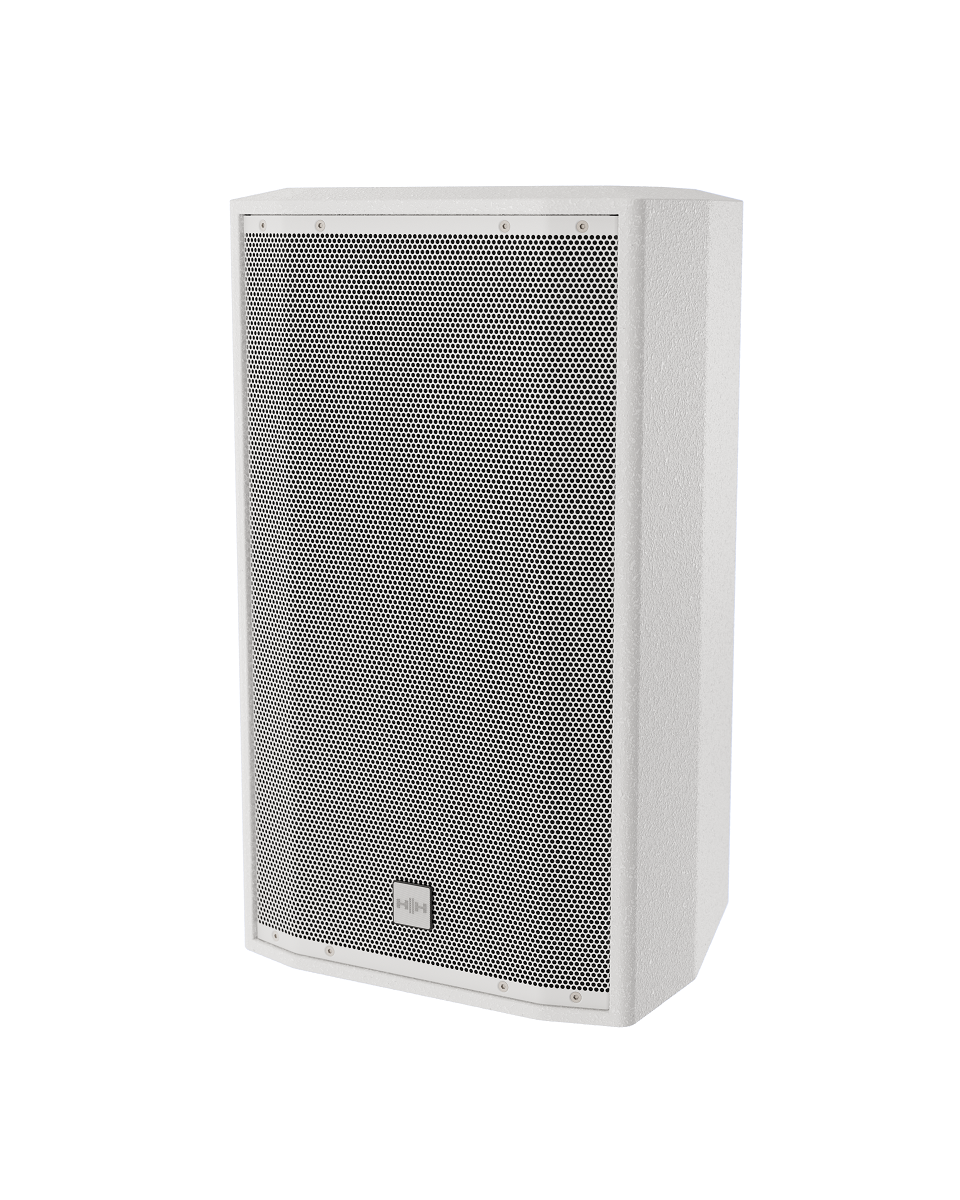

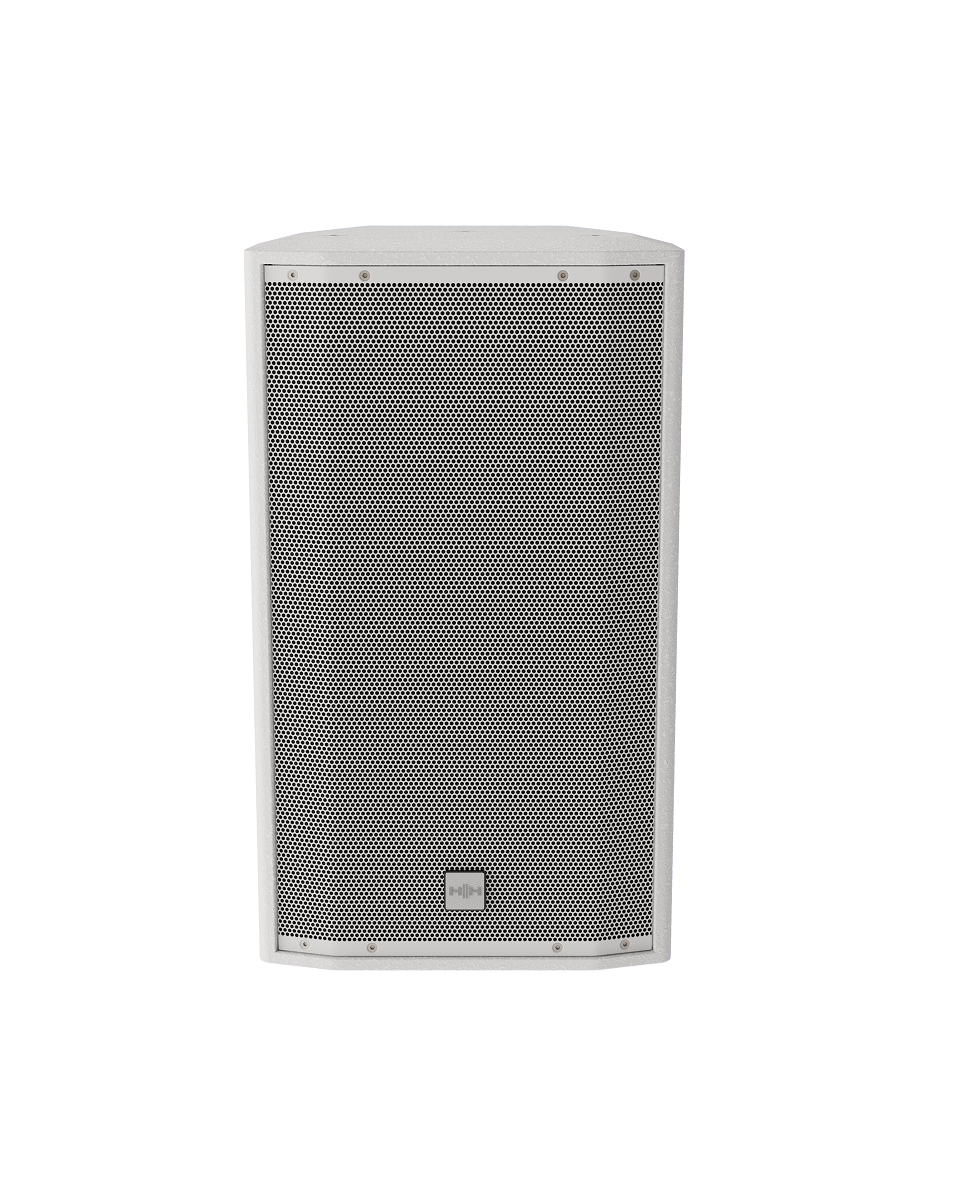

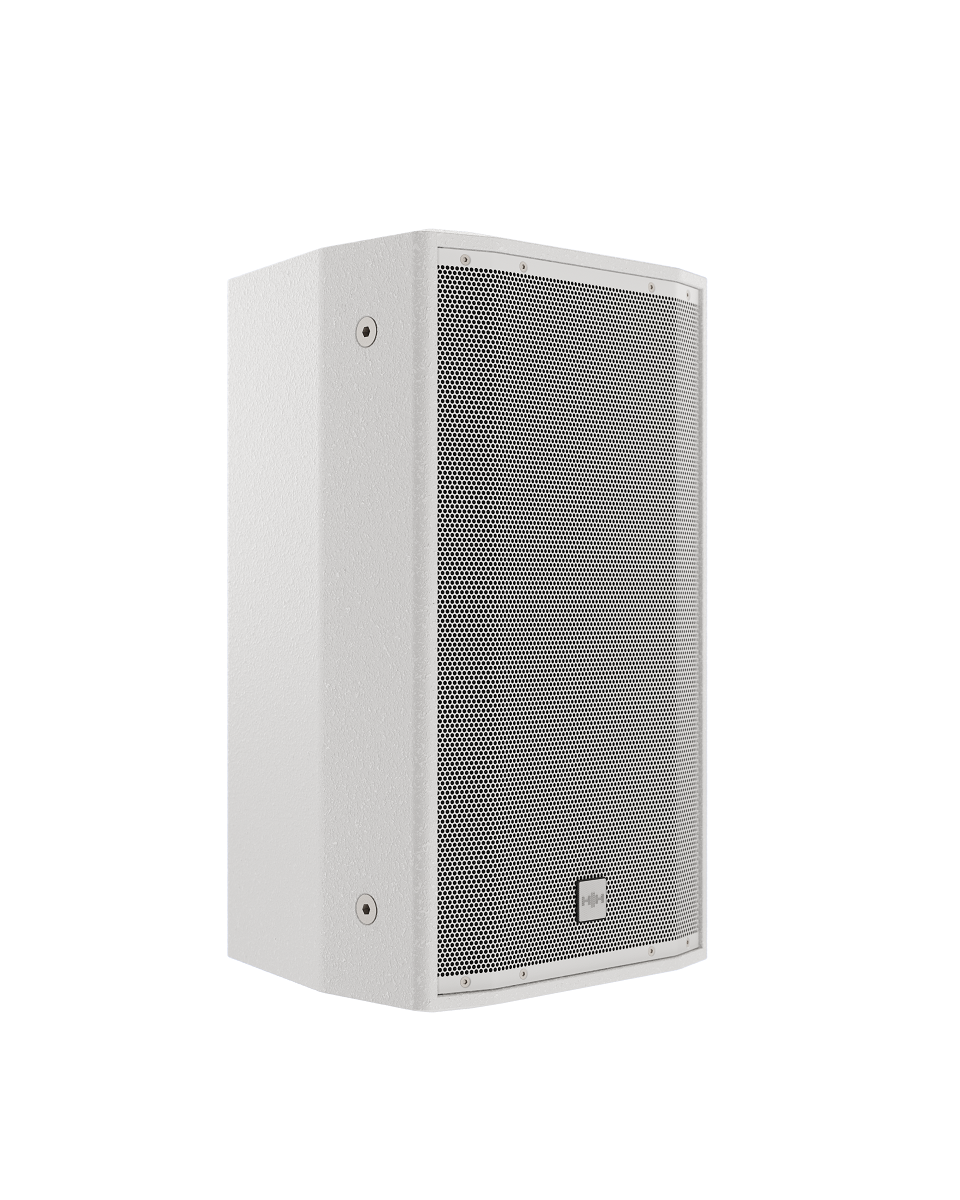

The HH TNi-W8PRO is a high power, compact, 2-way, full-range loudspeaker system comprised of the HH 8-inch (2-inch voice coil) high power HH low frequency driver and 1-inch Celestion CDX1-1070 high-frequency compression driver. The HH/Celestion designed waveguide is rotatable so the loudspeaker can be used in either vertical or horizontal orientation. Flexible input connections via either M4 barrier strip or Euroblock provide versatile connecting options. Mounting options include: 7 x M10 Penn-Elcom fly points, 4 x M8 mounting points for optional TNi-BRK30 mounting bracket. All enclosed in a robust wooden enclosure, powdercoated steel grille with acoustic foam backing in black or white finish.

Features

  • System Type
    8-inch 2 way Passive Speaker, Bass Reflex
  • LF Driver
    8-inch HH Designed High Performance Driver, 2-inch Voice Coil
  • HF Driver
    1-inch Celestion CDX1-1070
  • Nominal System Impedance
    8 ohm
  • Power
    200W AES, 400W Continuous, 800W Peak
  • Recommended Amplifer
    400-800W @ 8 Ohms
  • Sensitivity (1W/1M)
    96 dB
  • Max SPL
    119 dB SPL, 125 dB SPL (Peak)
  • Frequency Response (-10)
    52 - 20kHz
  • Frequency Response (-3)
    63 - 18kHz

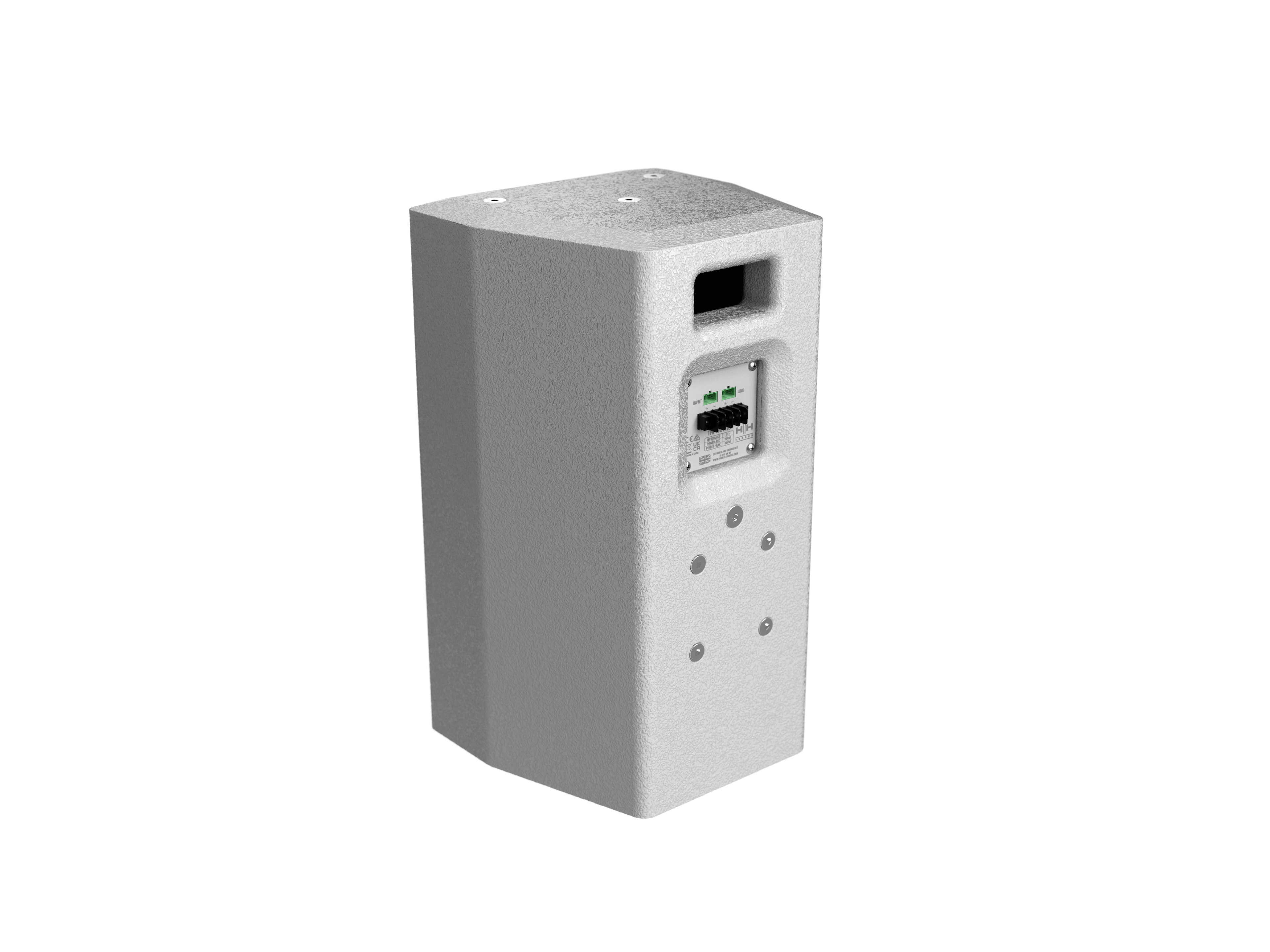

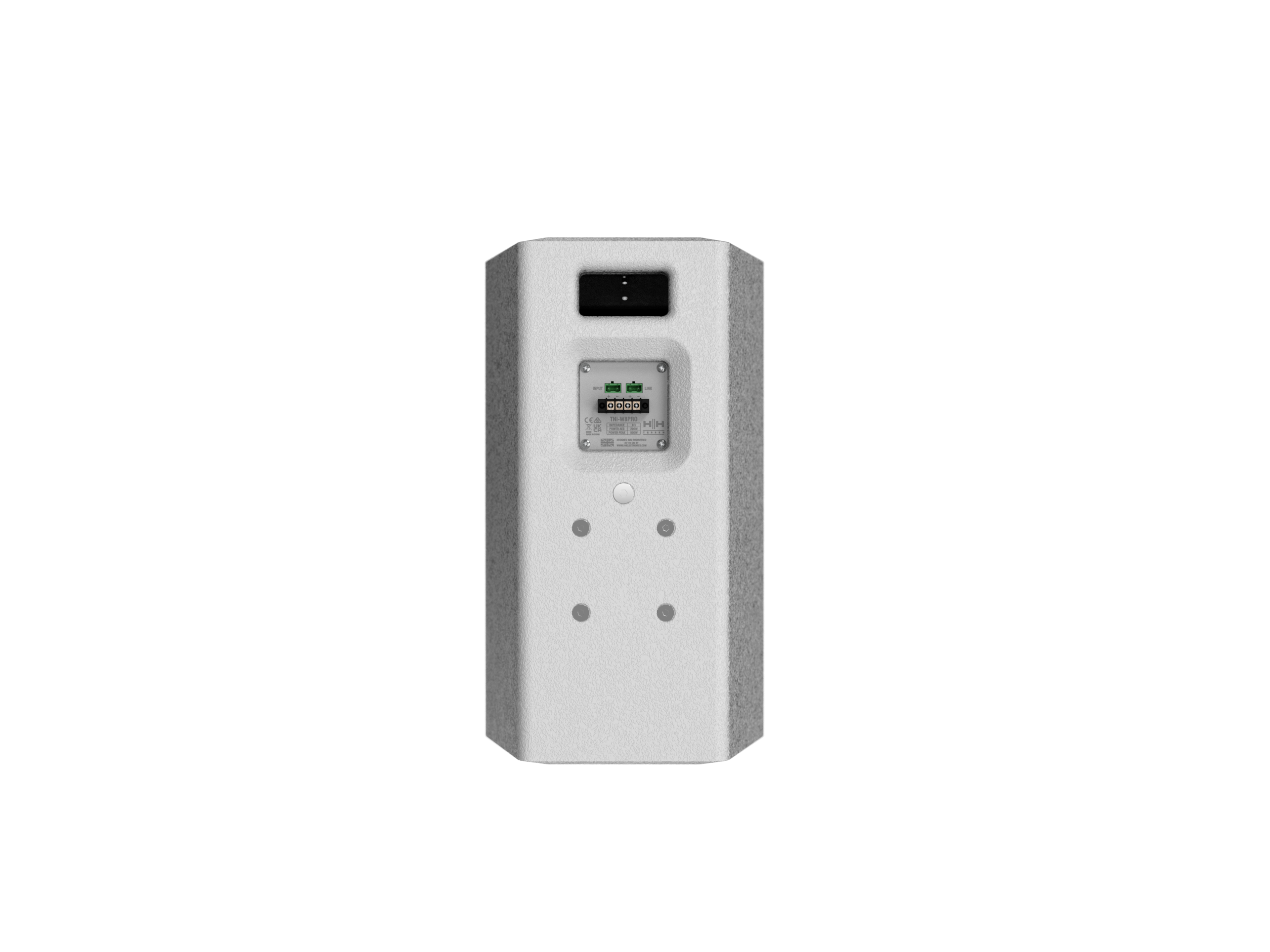

  • Input Link Connector
    Euro Block Connector and M4 Barrier Strip Terminal (7.62mm Pitch)
  • Horiz. Dispersion Angle 1000Hz
    90°
  • Vertical Dispersion Angle 1000Hz
    60°
  • Crossover Frequency
    2.2KHz
  • Cabinet
    Robust all wood construction (15mm plywood)
  • Finish
    Hard wearing spatter finish (White or Black option)
  • Grille
    Powdercoated steel with acoustic foam backing

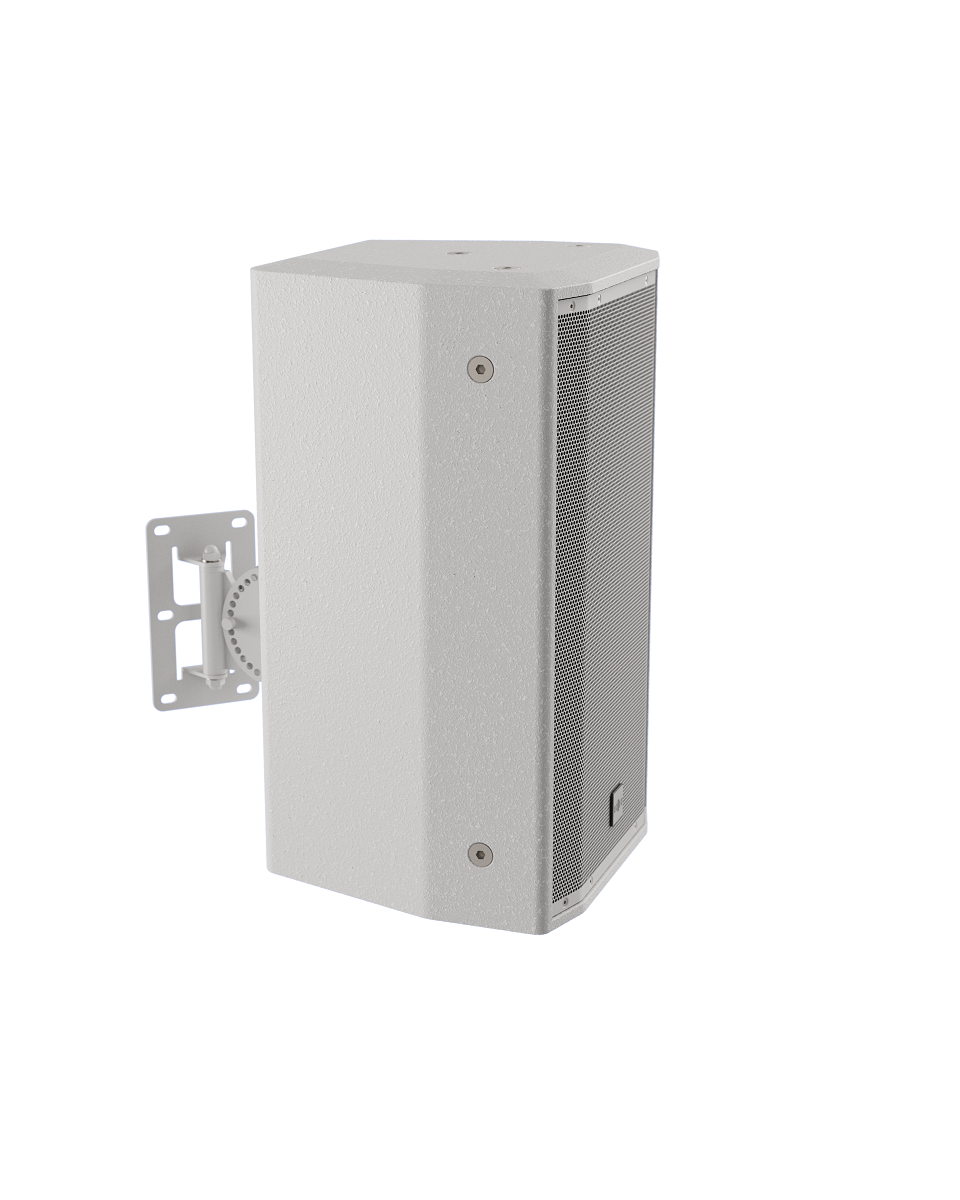

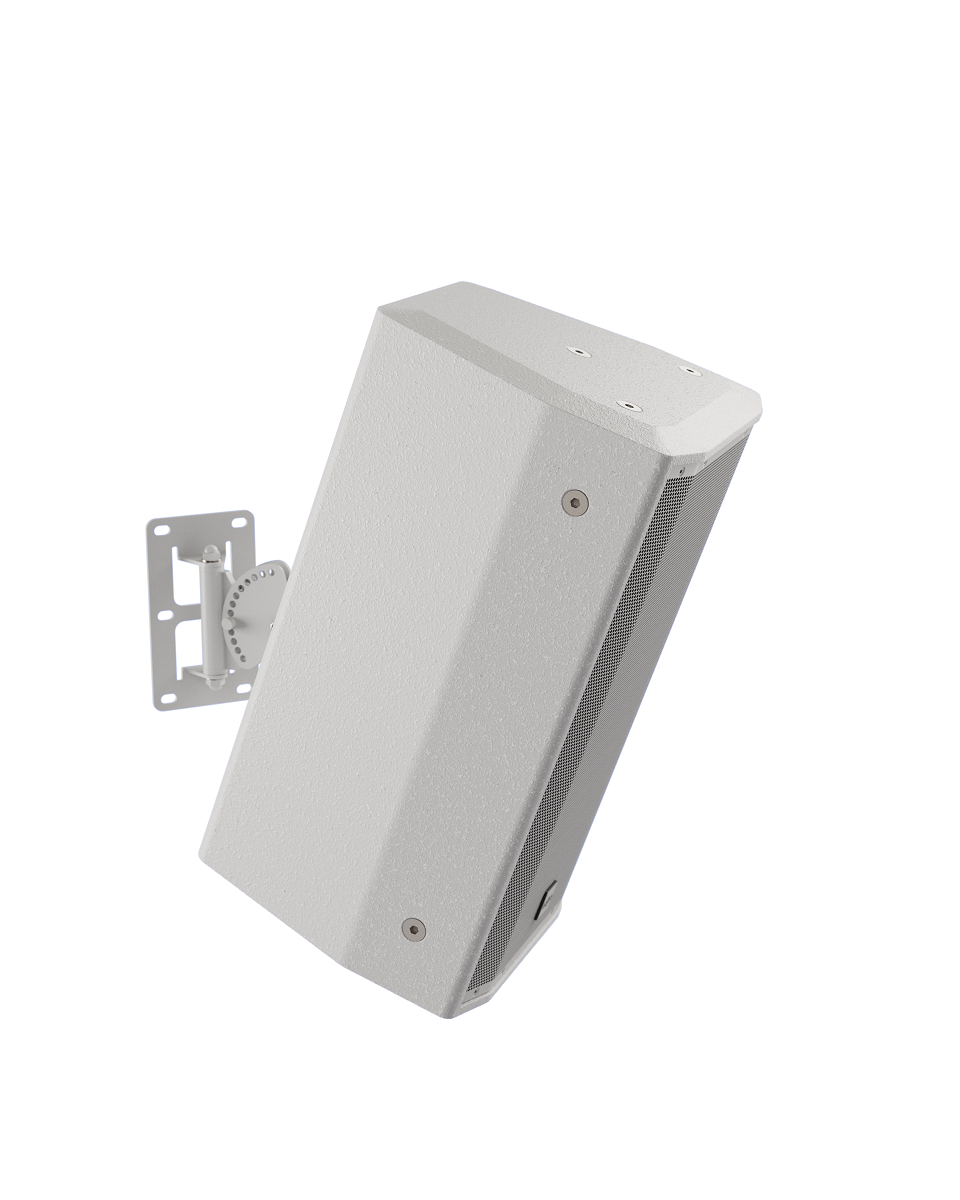

  • Mounting Bracket
    4x M8 mounting points for optional HH-BRK30
  • Mounting Points
    7x M10 Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom)
  • Unit Dimensions (Hwd)
    474 x 270 x 257mm, 18.7" x 10.6" x 10.1"
  • Unit Weight
    10Kg, 22 lbs
  • Carton Dimensions (Hwd)
    570 x 370 x 350mm, 22.4" x 14.6" x 13.8" , 0.074 M3
  • Packed Weight
    12Kg, 26.5 lbs

Installation Speaker System

The HH TNi range offers exceptional installation sound, with a variety of models to suit different sizes of space and power requirements. Options include ceiling and wall mount speakers, available in both white and black to match any aesthetic in your venue. All models feature wide frequency responses, controlled directivity, and excellent vocal clarity to suit a wide range of settings from music venues to retail stores.

For the complete system solution these speakers work great when combined with HH M Series amplifiers and MZ Series zone controllers.
