TNi-W15PRO-WH

Tessen Install Series

TNi-W15PRO-WH

The TNi-W15Pro is a high-power, 2-way, full-range loudspeaker system that comprises a HH-designed 15-inch low-frequency driver with a 3-inch voice coil alongside a 1.75-inch Celestion CDX1-1742 high-frequency compression driver.

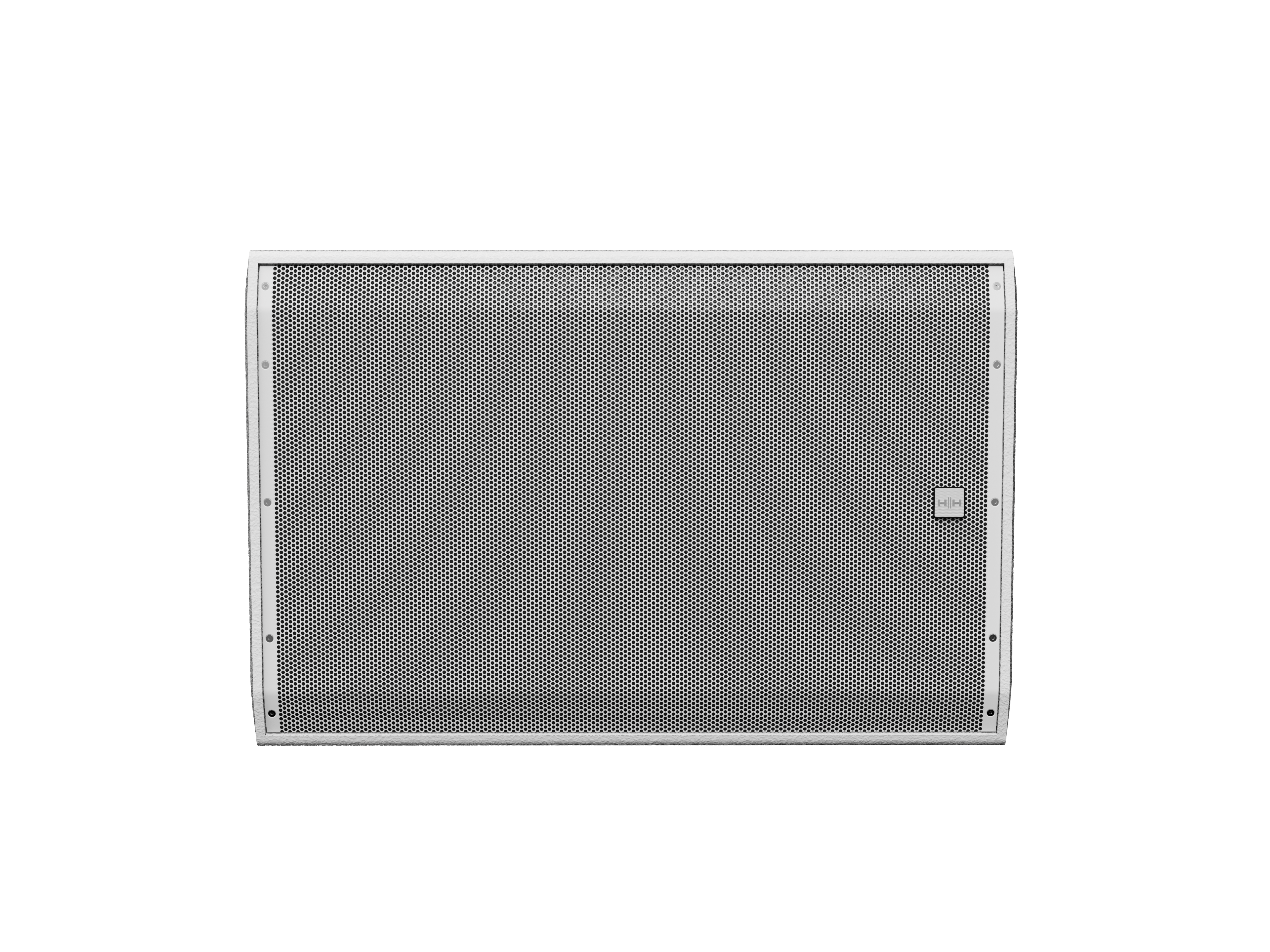

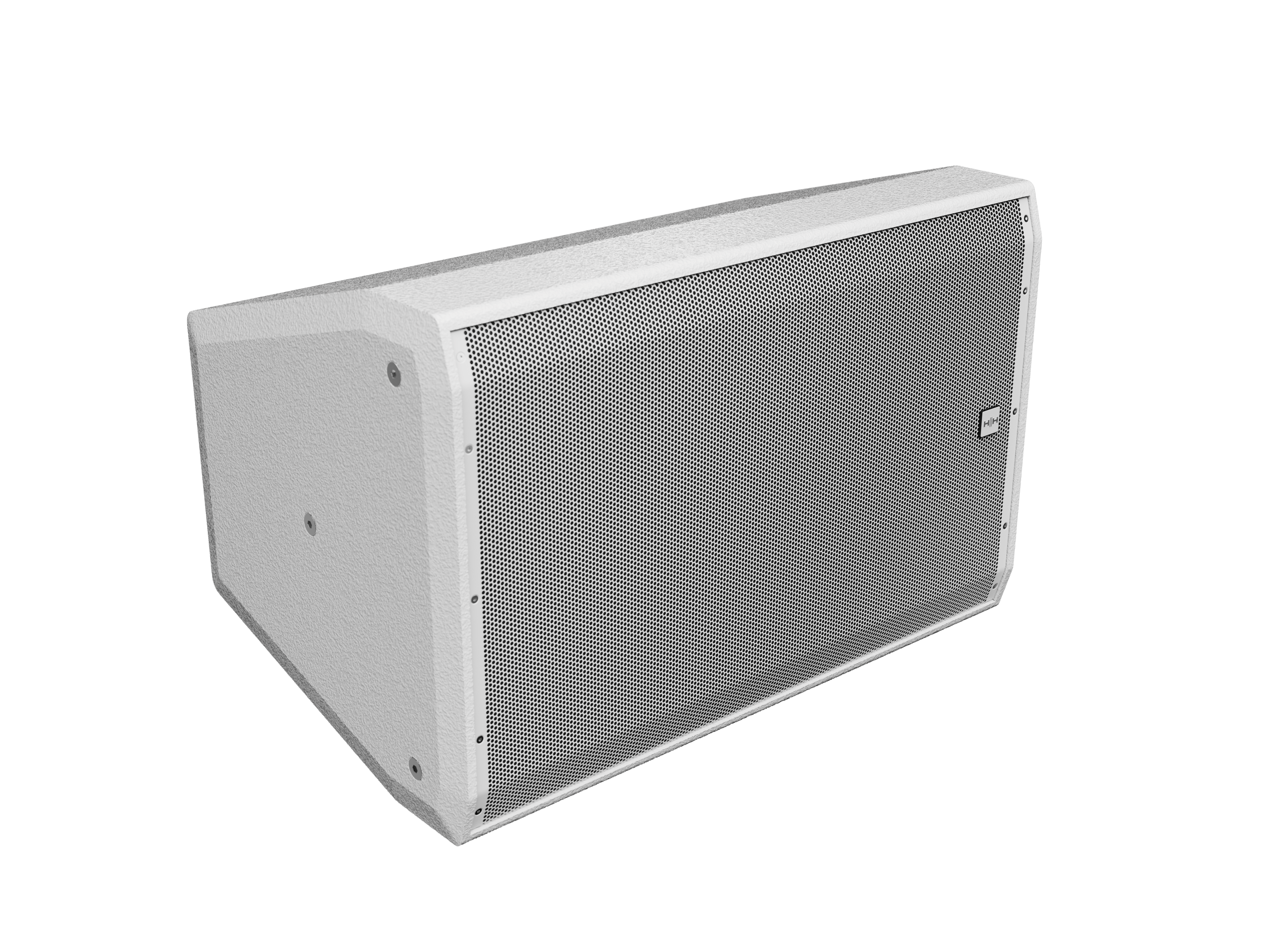

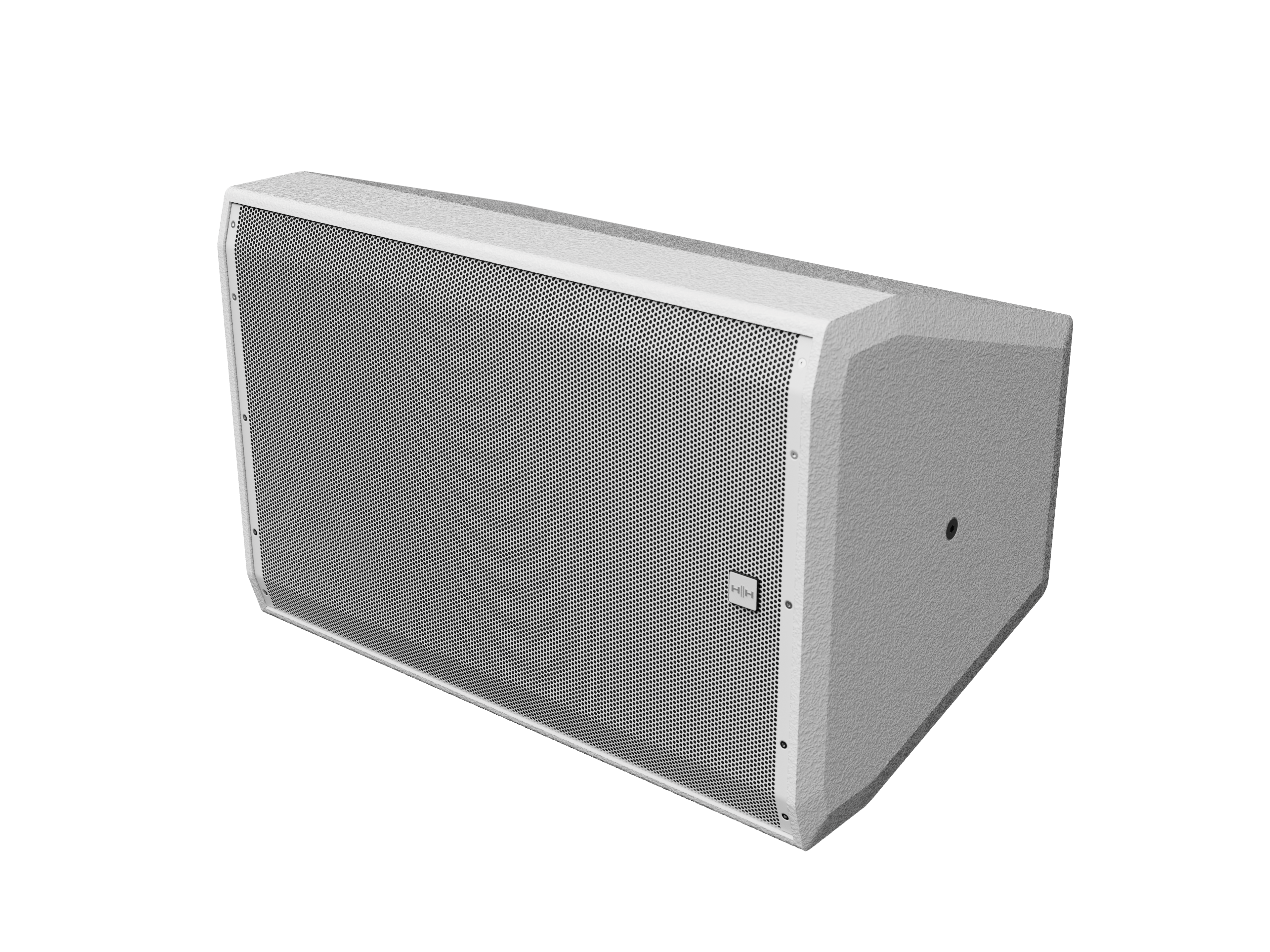

The TNi-W15PRO features a rotatable waveguide designed in collaboration with Celestion, which provides a 90°(H) x 60°(V) dispersion angle and enables the unit to be installed in either a vertical or horizontal orientation.

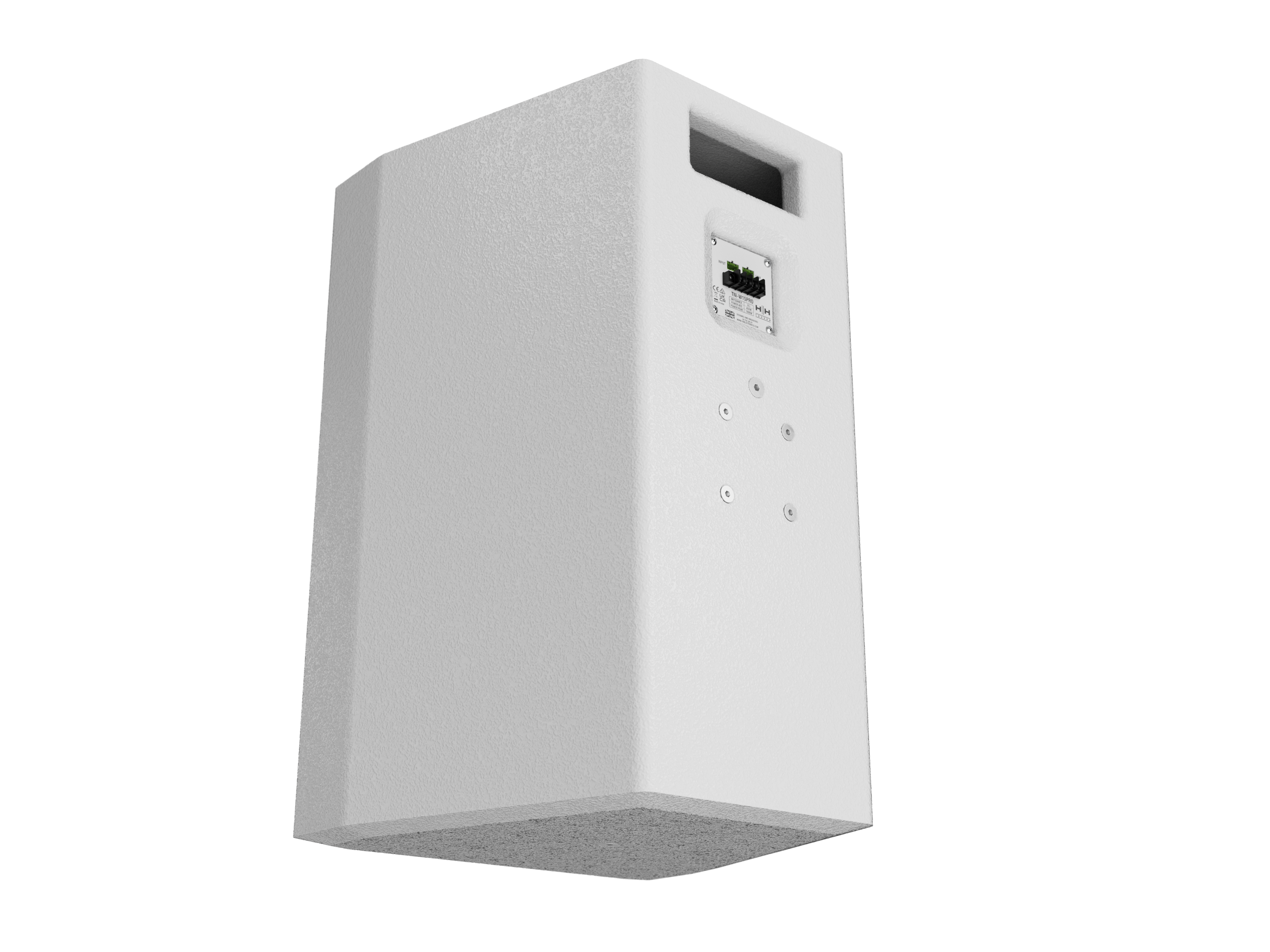

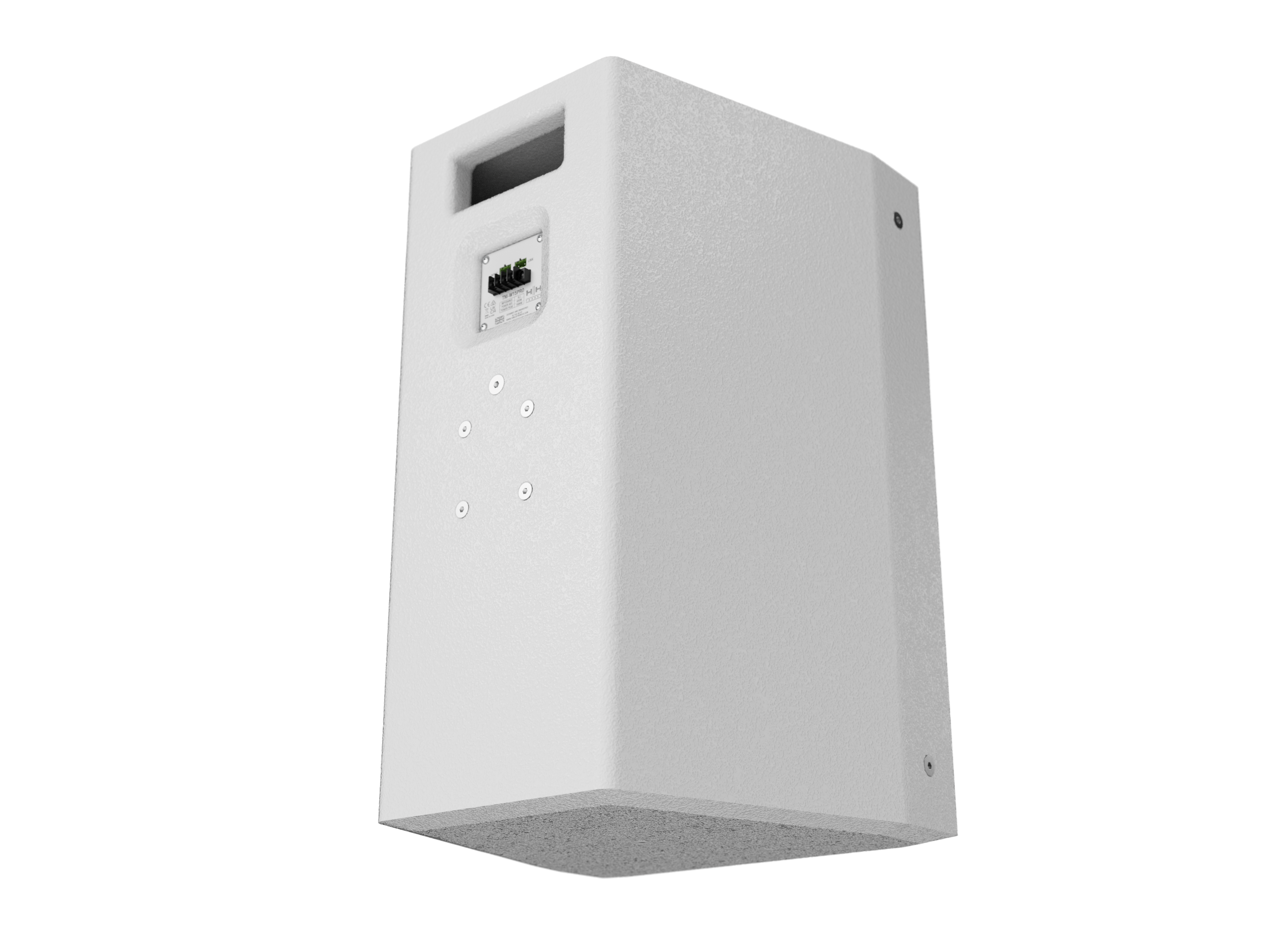

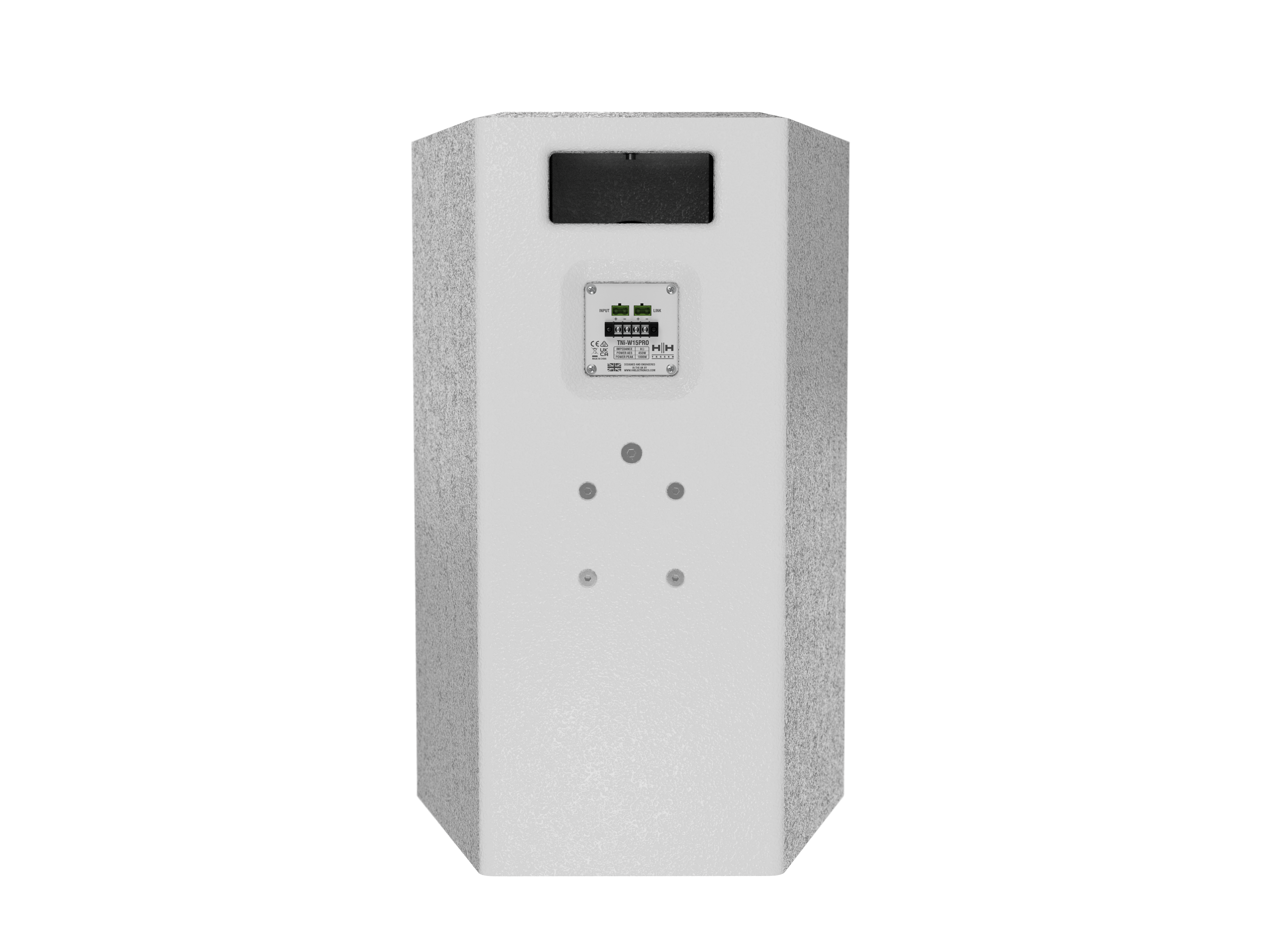

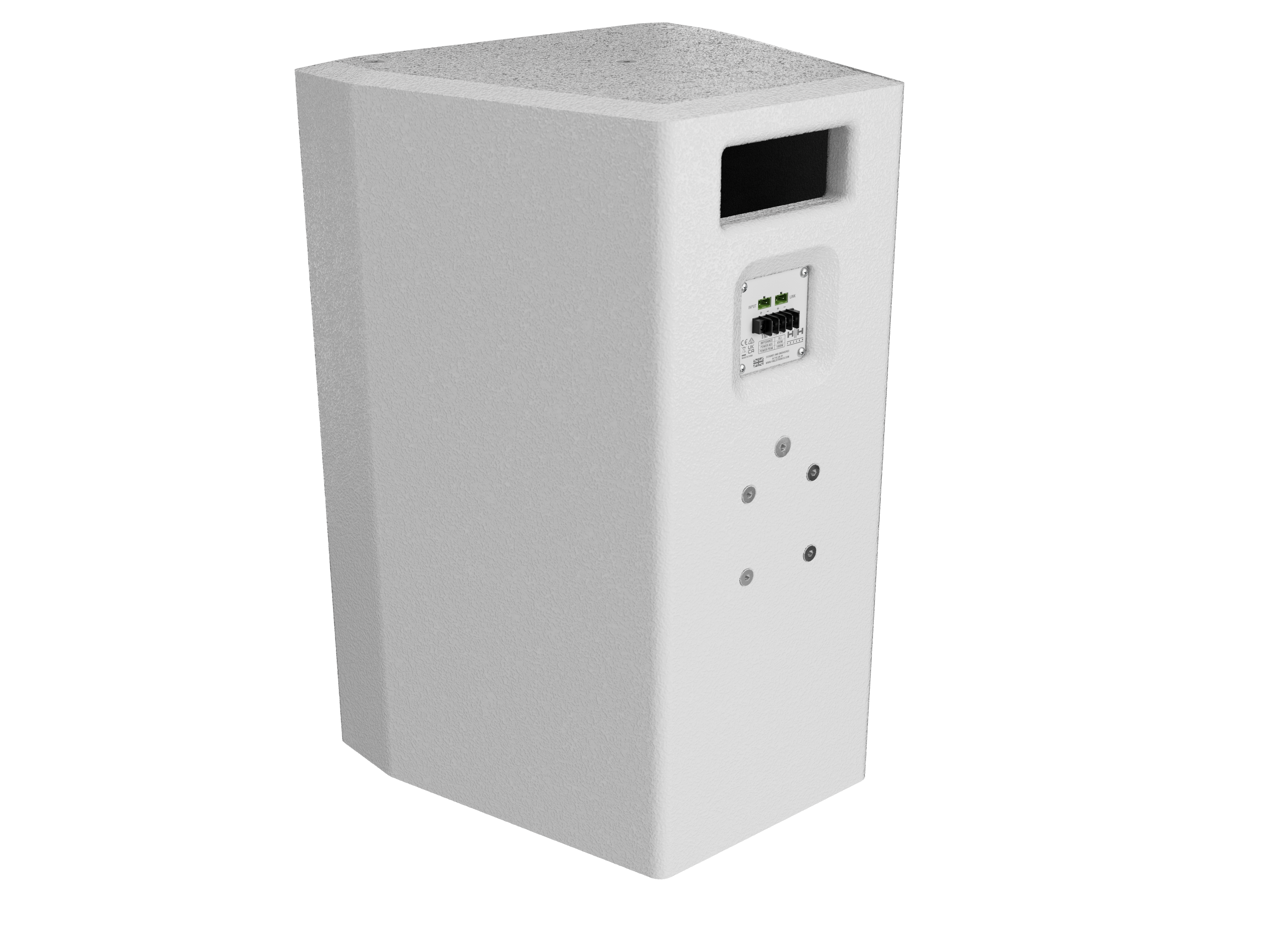

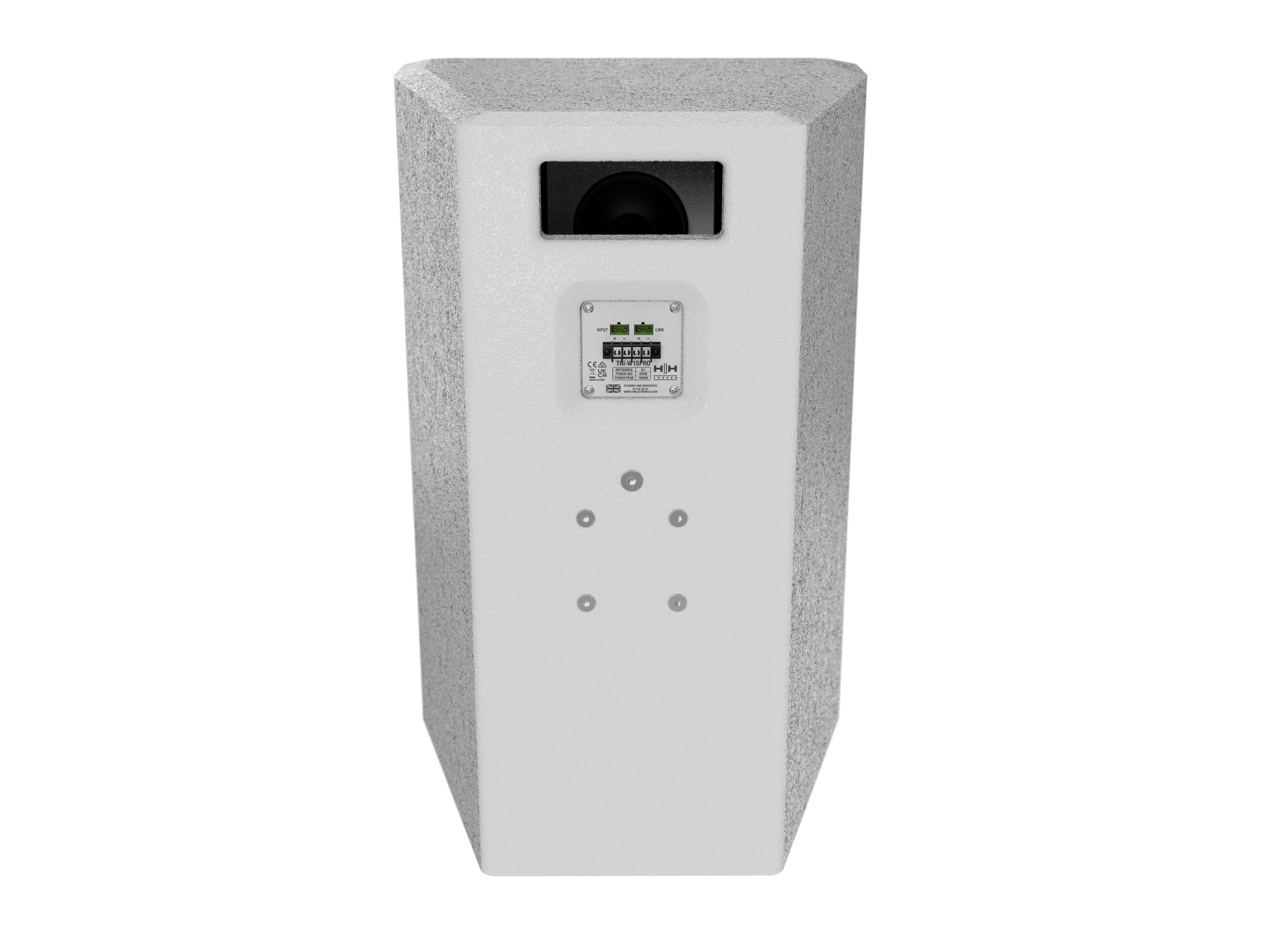

Mounting options include 4 x M8 mounting points for using the optional TNi-BRK30 multi-angle wall bracket as well as 7 x M10 Penn-Elcom fly points. The recessed rear panel offers flexible input connections via either Euroblock or M4 barrier strip.

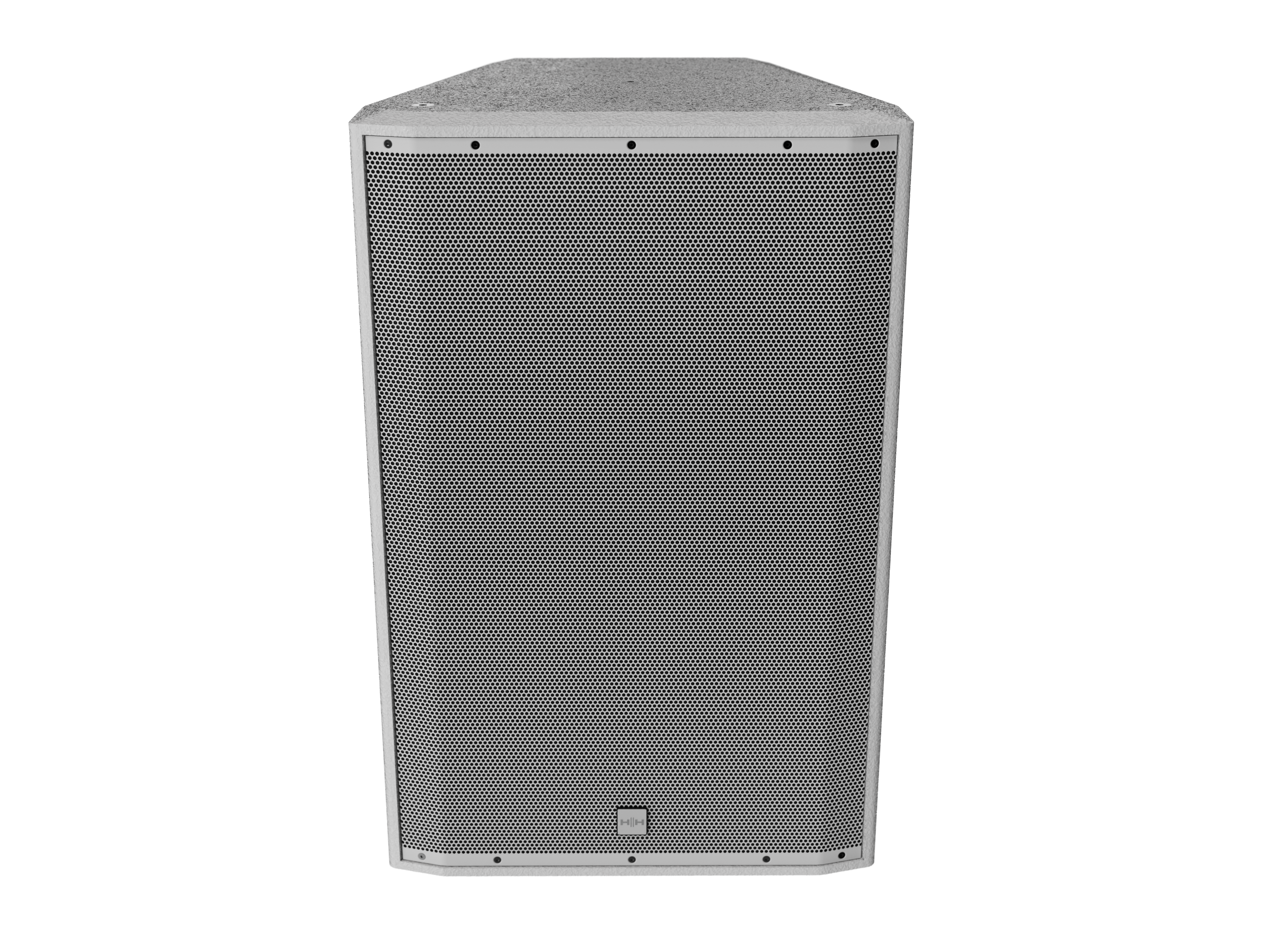

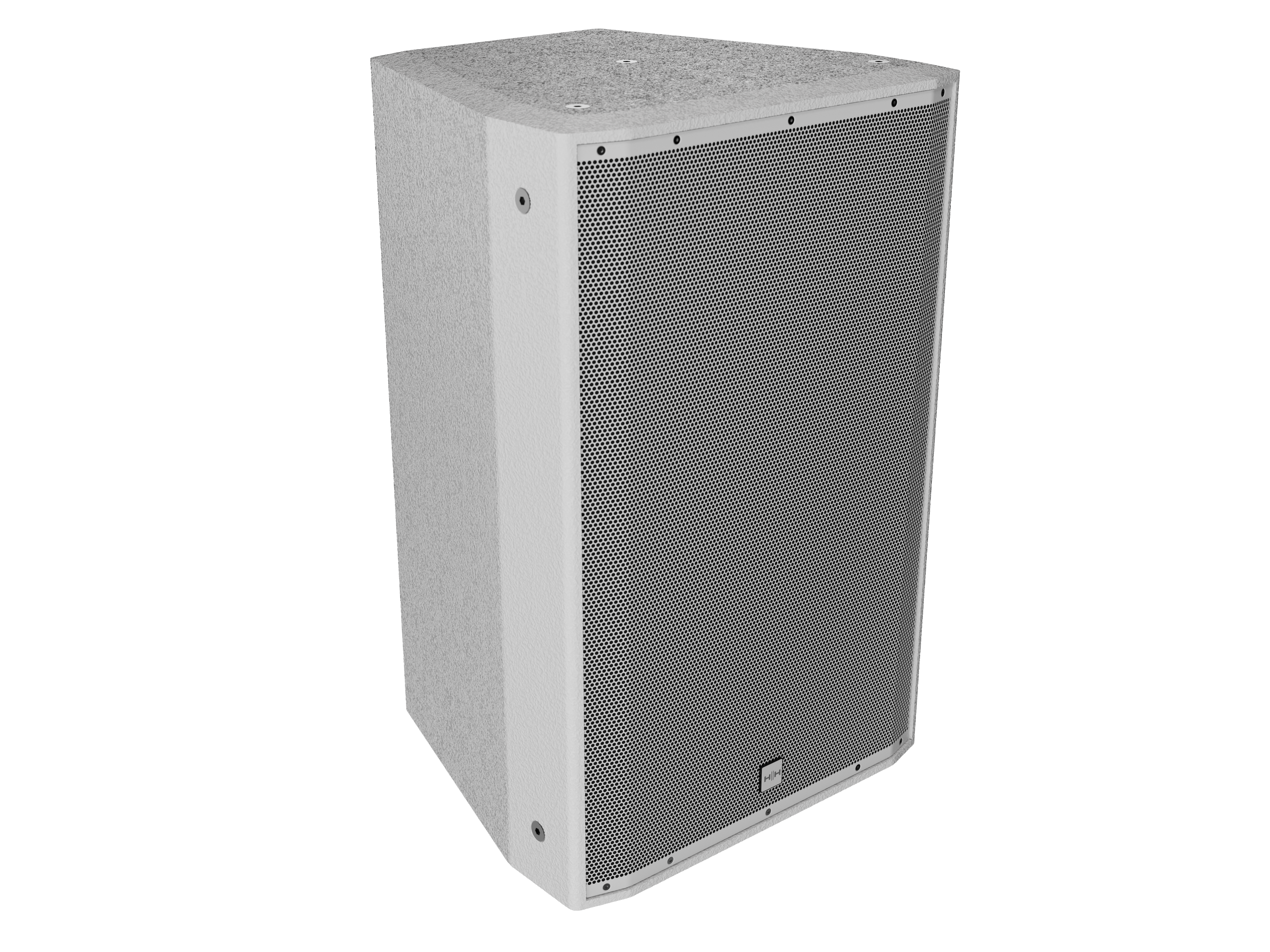

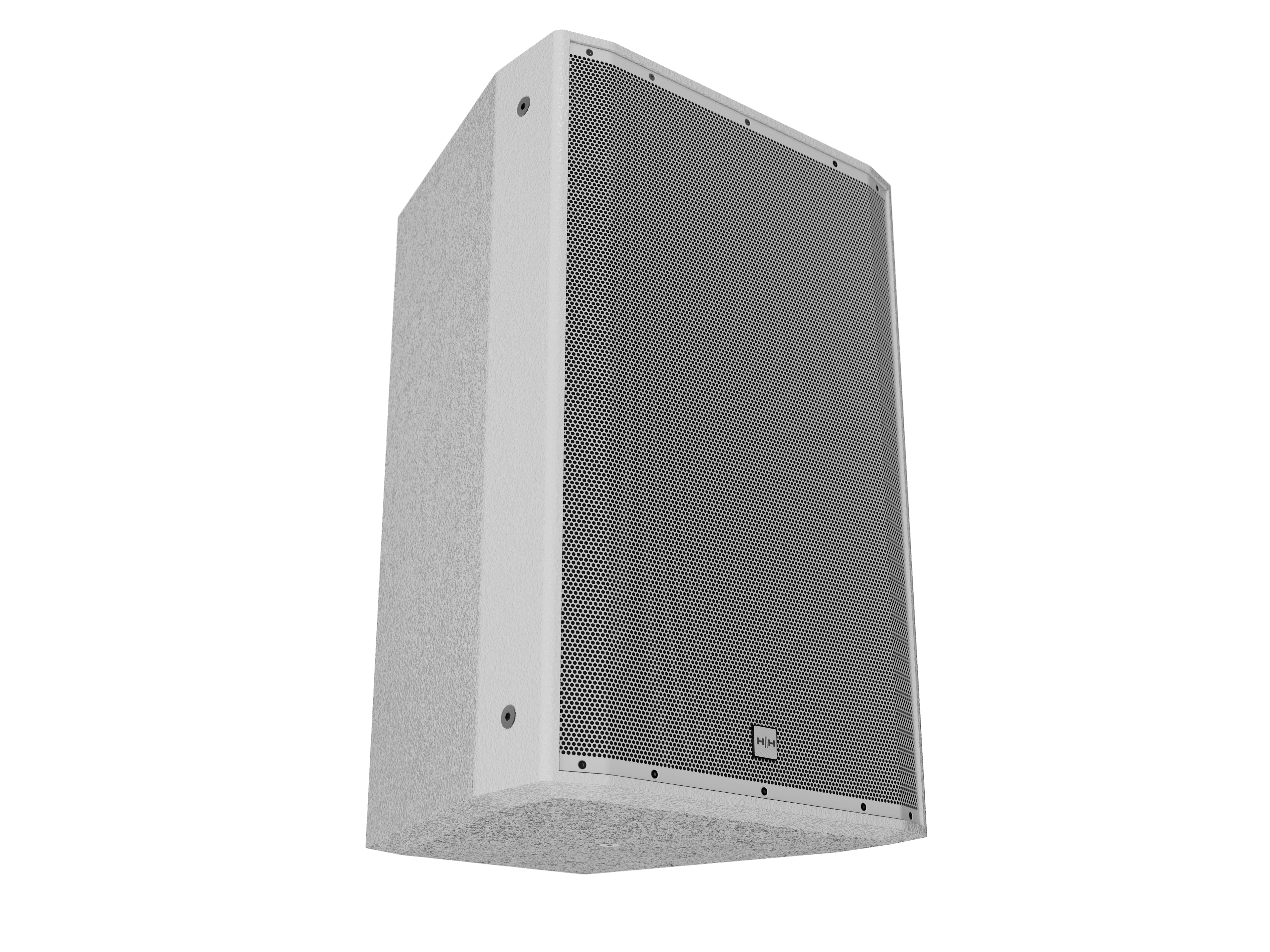

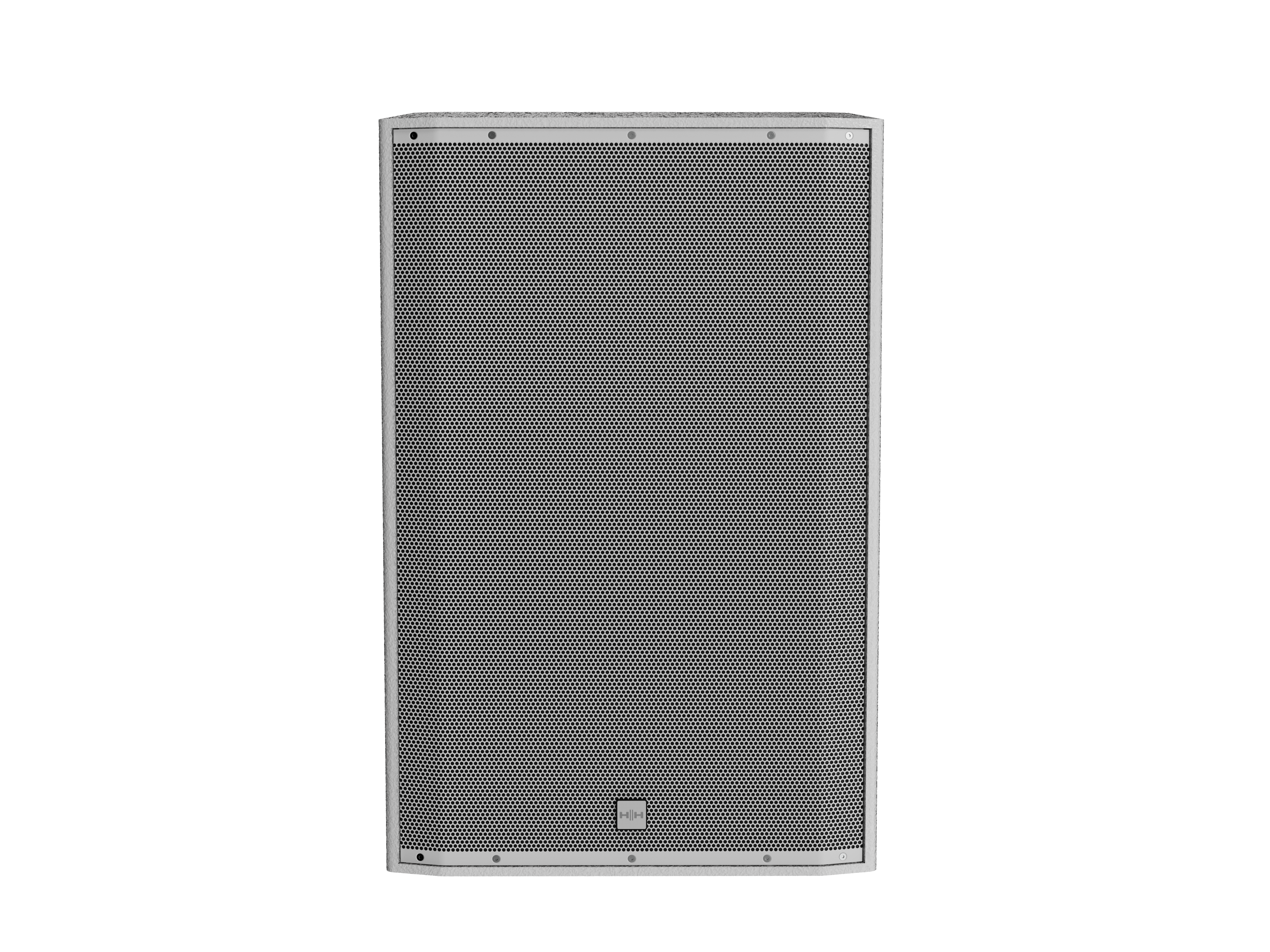

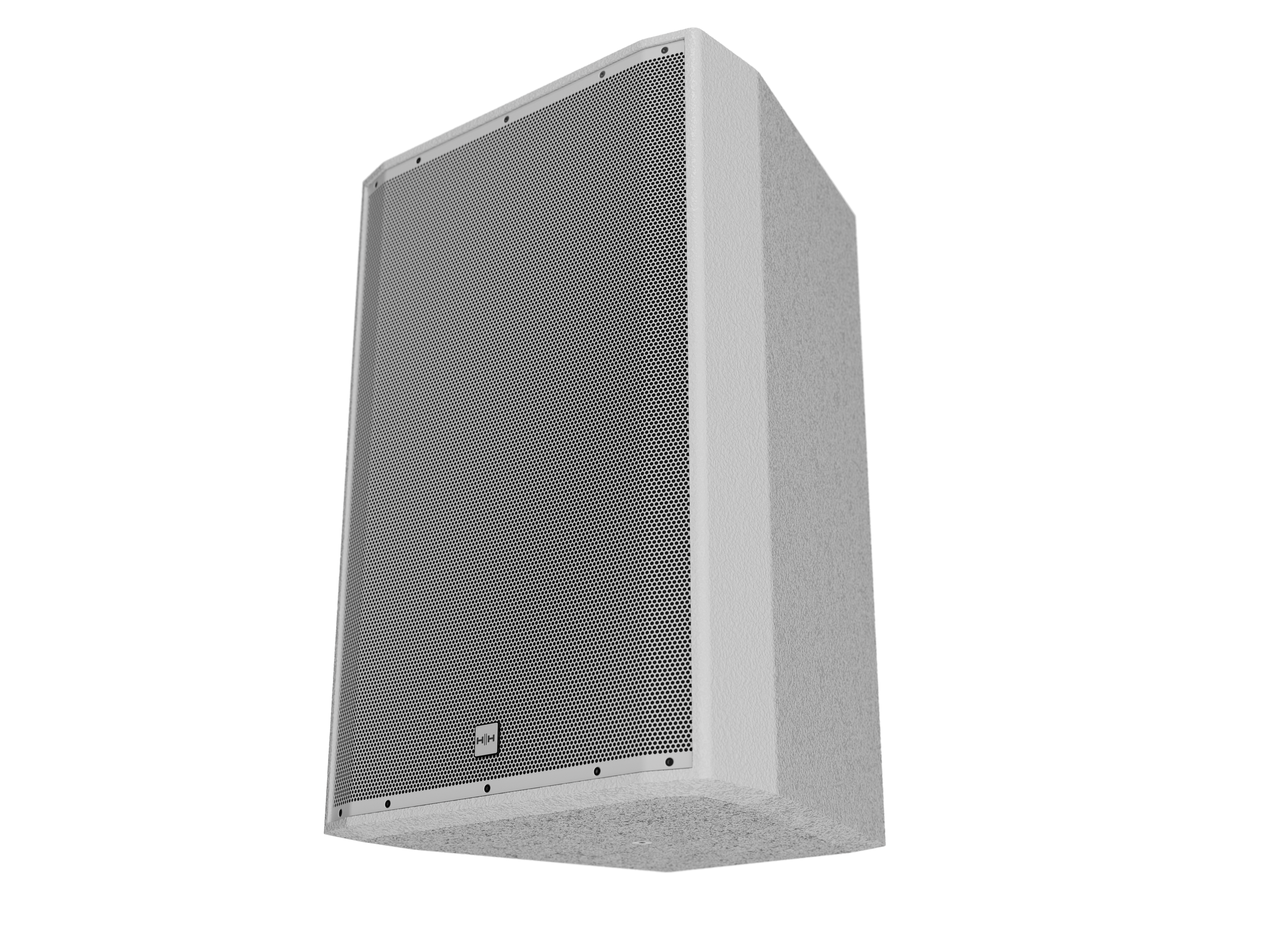

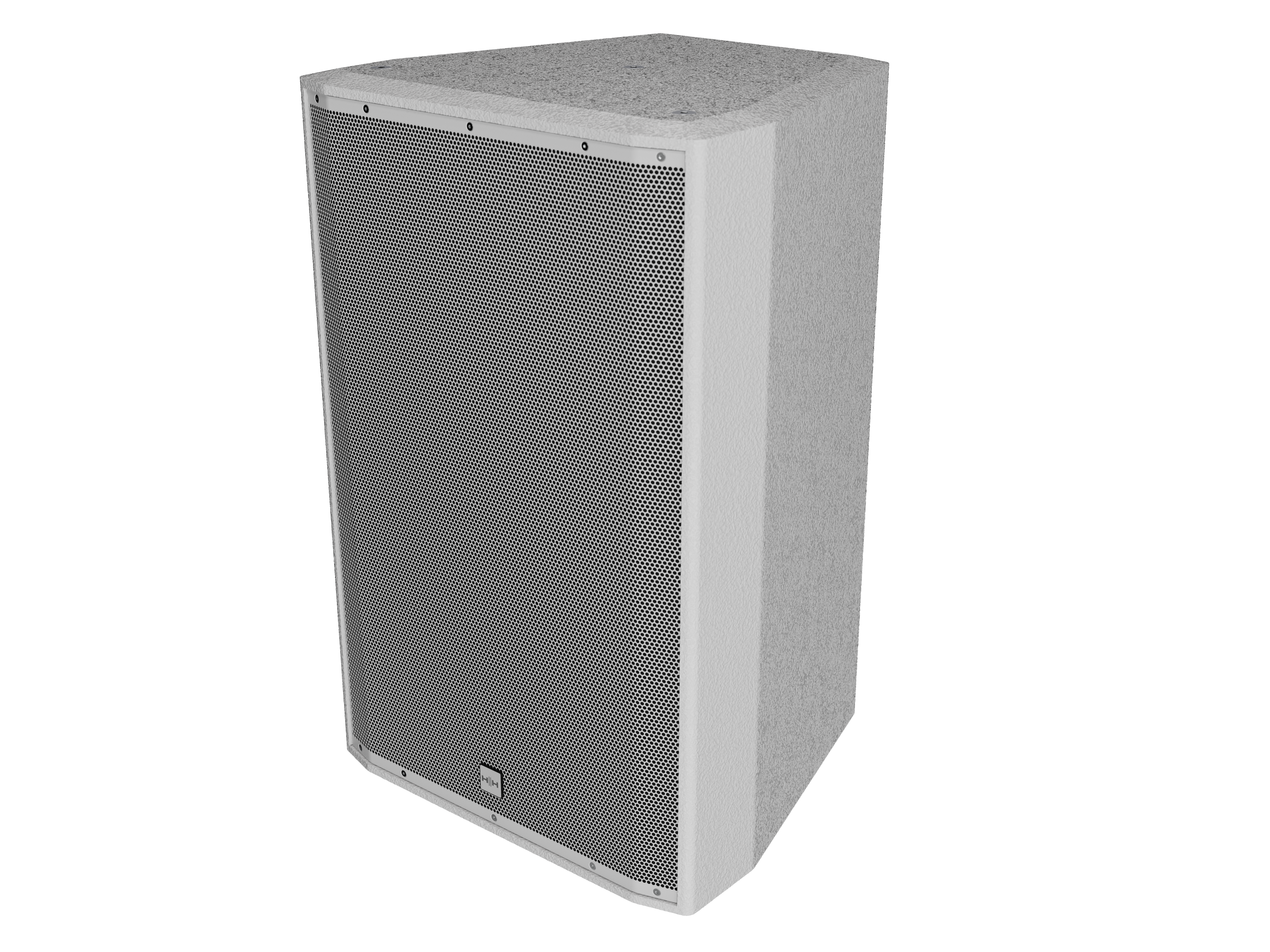

The robust enclosure is composed of 15mm plywood coated with a hard-wearing spatter finish plus a powder-coated steel grille with acoustic foam backing. Available in black or white.

Features

  • System Type
    2-Way Full Range Passive Loudspeaker, 15" LF, Bass Reflex
  • LF Driver
    15" Black 38080-8 HH Designed High Performance Driver, 3.0" Voice Coil
  • HF Driver
    1.75" Celestion CDX1-1742
  • Nominal System Impedance
    8 Ohms
  • Power
    450W AES, 900W Continuous, 1800W Peak
  • Recommended Amplifer
    HH M-Series M1500D or equivalent with 600-1200W @ 8 Ohms
  • Sensitivity (1W/1M)
    98 dB SPL
  • Max SPL
    125 dB SPL, 131 dB SPL (Peak)
  • Frequency Response (-10)
    41 - 20kHz (-10dB)
  • Frequency Response (-3)
    51 - 18kHz (-3dB)
  • Input Connector
    Euroblock Connector and M4 Barrier Strip Terminal (7.62mm Pitch)
  • Horiz. Dispersion Angle 1000Hz
    90°
  • Vertical Dispersion Angle 1000Hz
    60°
  • Crossover
    2.0KHz
  • Main Construction Material
    Robust all wood construction (15mm plywood)
  • Finish
    Hard wearing spatter finish (White or Black option)
  • Grille
    Powdercoated steel with acoustic foam backing
  • Mounting Bracket
    4x M8 mounting points for optional HH-BRK30
  • Mounting Points
    7x M10 Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom)

Installation Speaker System

The HH TNi range offers exceptional installation sound, with a variety of models to suit different sizes of space and power requirements. Options include ceiling and wall mount speakers, available in both white and black to match any aesthetic in your venue. All models feature wide frequency responses, controlled directivity, and excellent vocal clarity to suit a wide range of settings from music venues to retail stores.

For the complete system solution these speakers work great when combined with HH M Series amplifiers and MZ Series zone controllers.
