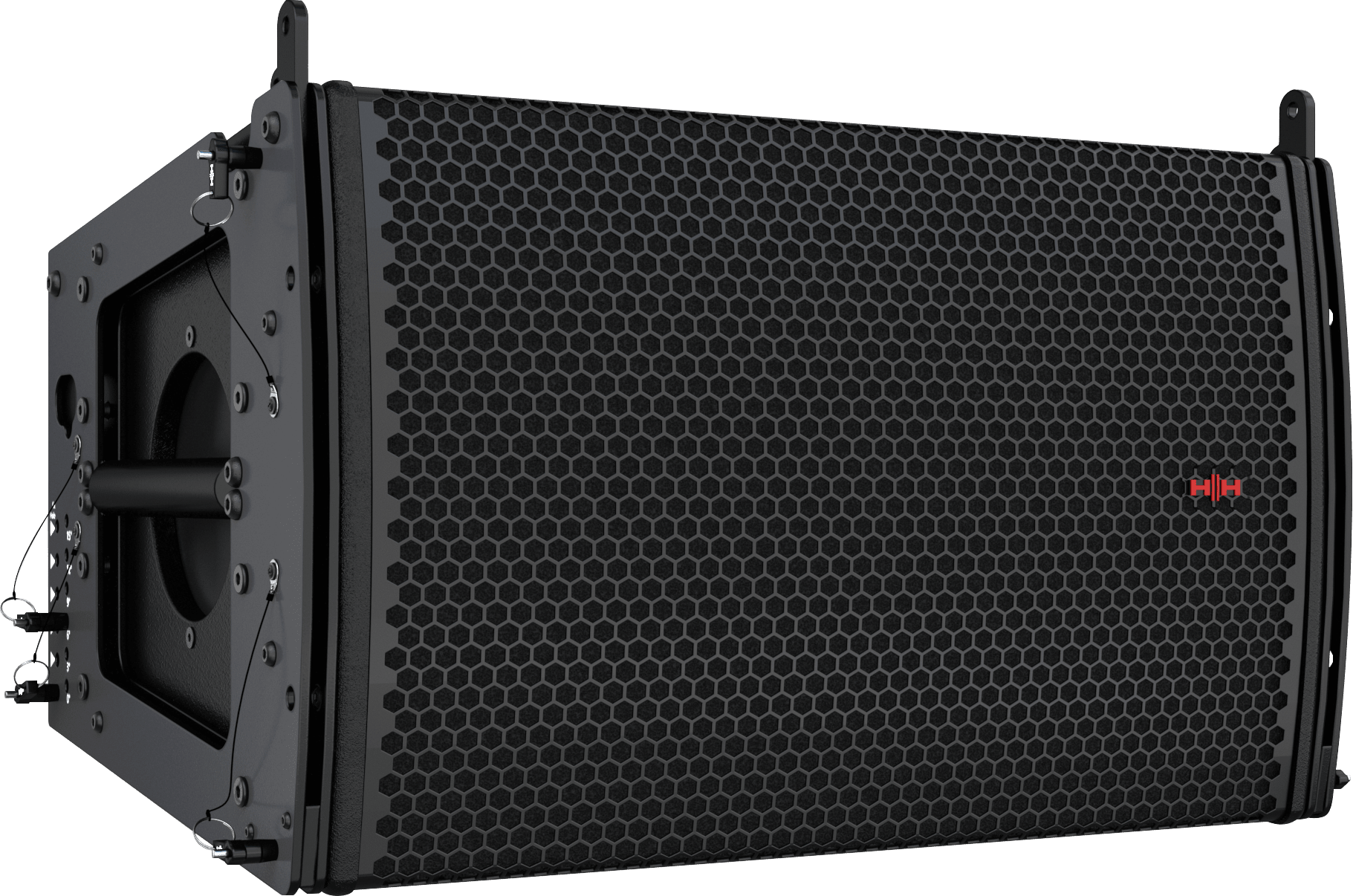

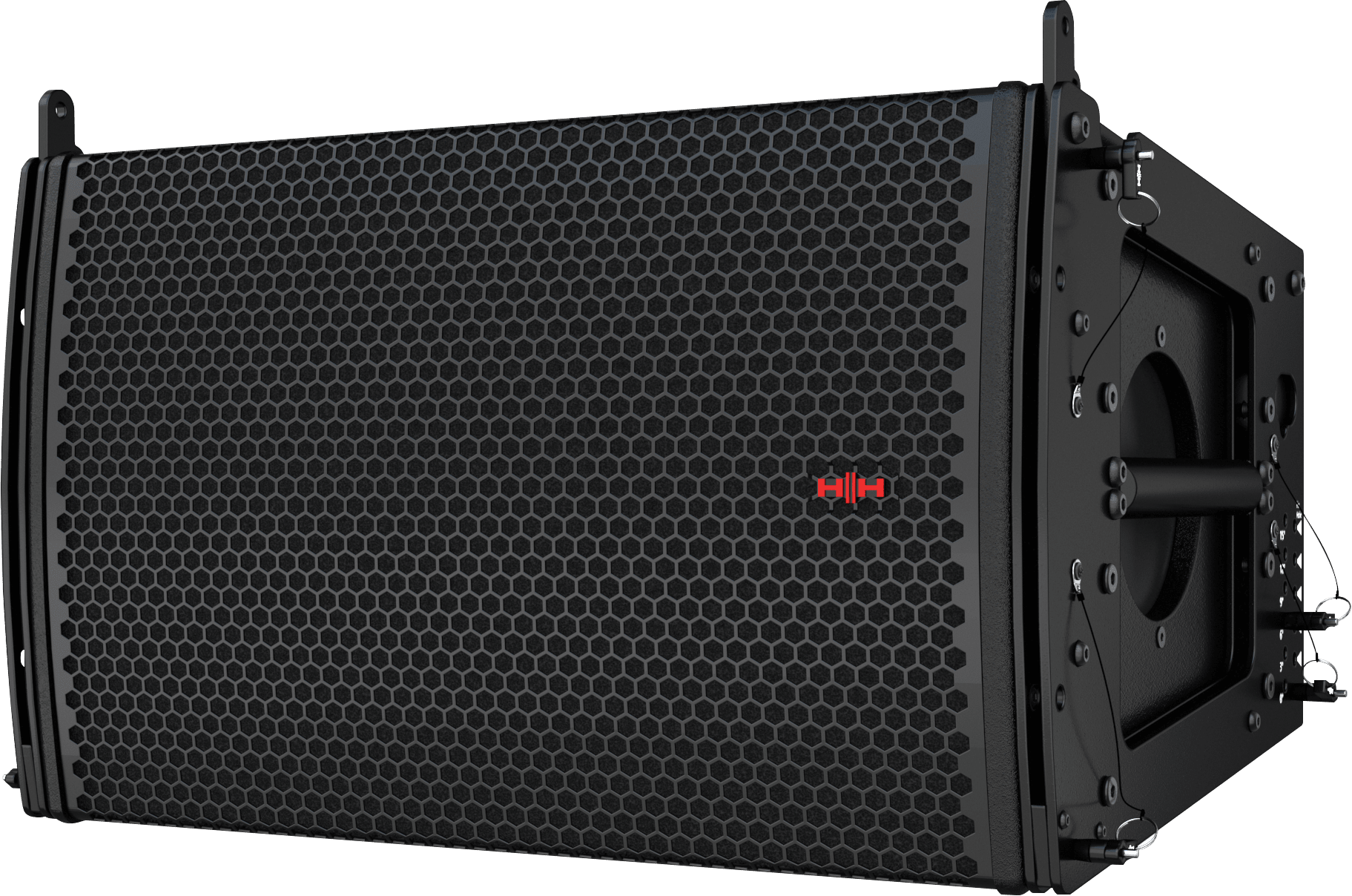

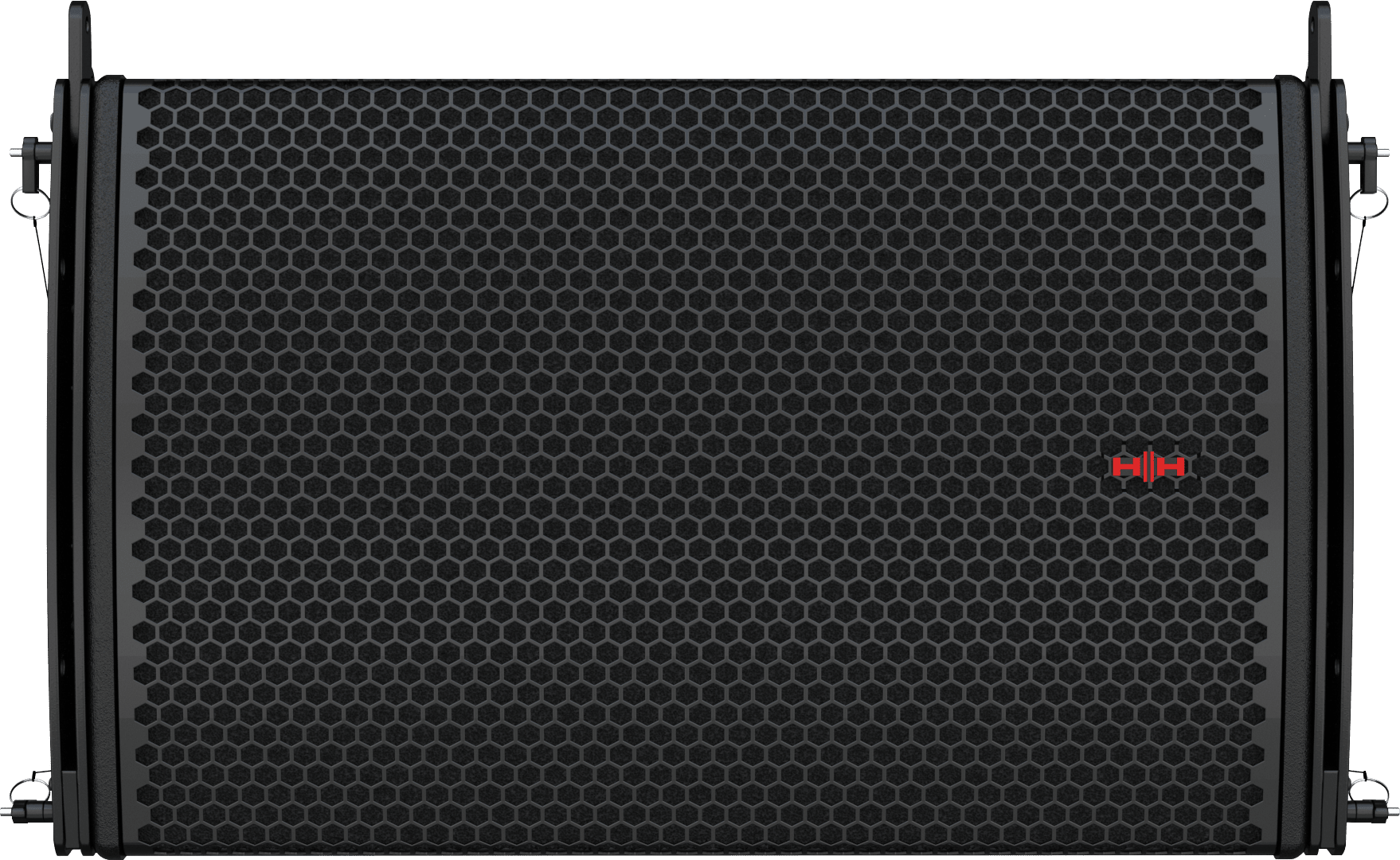

The F2-Array is a 2-way 12” line array loudspeaker that comprises two specially crafted drive units. A 12” carbon fibre low-frequency driver, alongside a 3” composite carbon fibre diaphragm tweeter combining to offer a maximum SPL of 143dB (Peak).
The high sensitivity and rigidity of the 12” enables continuous low-distortion output under high power conditions.
The F2-Array has a horizontal coverage angle of 90 (optional 120°) and a vertical coverage angle of 15°.
The 646mm wide enclosure features an integrated 4-point rigging system for seamlessly linking to additional F2-Array cabinets. Inter-cabinet angle adjustments range from 0° to 15°.
The enclosure is composed of robust plywood, finished with hard-wearing black polyurea paint and fitted with a hexagonal mesh steel grille with acoustic foam backing.
Meticulously crafted to provide clarity, control and consistent coverage in the most demanding large scale applications.
Royal Series represents the pinnacle of audio engineering and performance from HH Audio. A range of products finely crafted to offer reliable and scalable live sound systems for the most demanding applications. The combination of cutting-edge acoustic technology and fine craftsmanship sets a new standard for large-scale systems with numerous configurations to suit a multitude of live sound requirements.
The series comprises passive line array enclosures (L2-Array, L3-Array, and L4-Array), passive subwoofer enclosures (GSE, GSE-H, GSS and GSD), passive 2-way point source loudspeakers (H8, H10, H12 and H15), constant curvature arrays (F1-Array, F2-Array), passive array point source loudspeakers (P2-Array and P3-Array) and a passive 2-way stage monitor (UM1).
Royal Series drive units are engineered to provide exquisite transient and phase response, utilising unique combinations of materials including Kevlar fibre and carbon fibre to drastically improve cone rigidity enabling an unbelievably high-power, low-distortion output well suited to large-scale touring and outdoor applications.
Royal Series systems are road-ready, with integrated rigging hardware and flexible flying options to make configuring a system of this scale as simple as possible. Each enclosure is finished with black polyurea to ensure that each product can withstand the toughest touring conditions.
Whether the application is live concerts, theatres, arenas, or large houses of worship, Royal Series systems guarantee reliability, scalability, and precise audio that engineers can confidently trust.
