The LA8D is a 2-way dual 8” Line Array Loudspeaker that comprises 2 x 8” mid-low drivers alongside a 2” high-frequency compression driver with a magnesium alloy diaphragm. Through symmetrical phase alignment technology, the coupling characteristics between the two 8” mid-low drivers are optimised to improve the efficiency of the system. The all-neodymium structure of the high-frequency compression driver combined with HH phase plug technology provides pinpoint directional control. The LA8D provides a maximum SPL of 134dB (Peak).
The LA8D has a horizontal coverage angle of 120° and a vertical coverage angle of 10°.

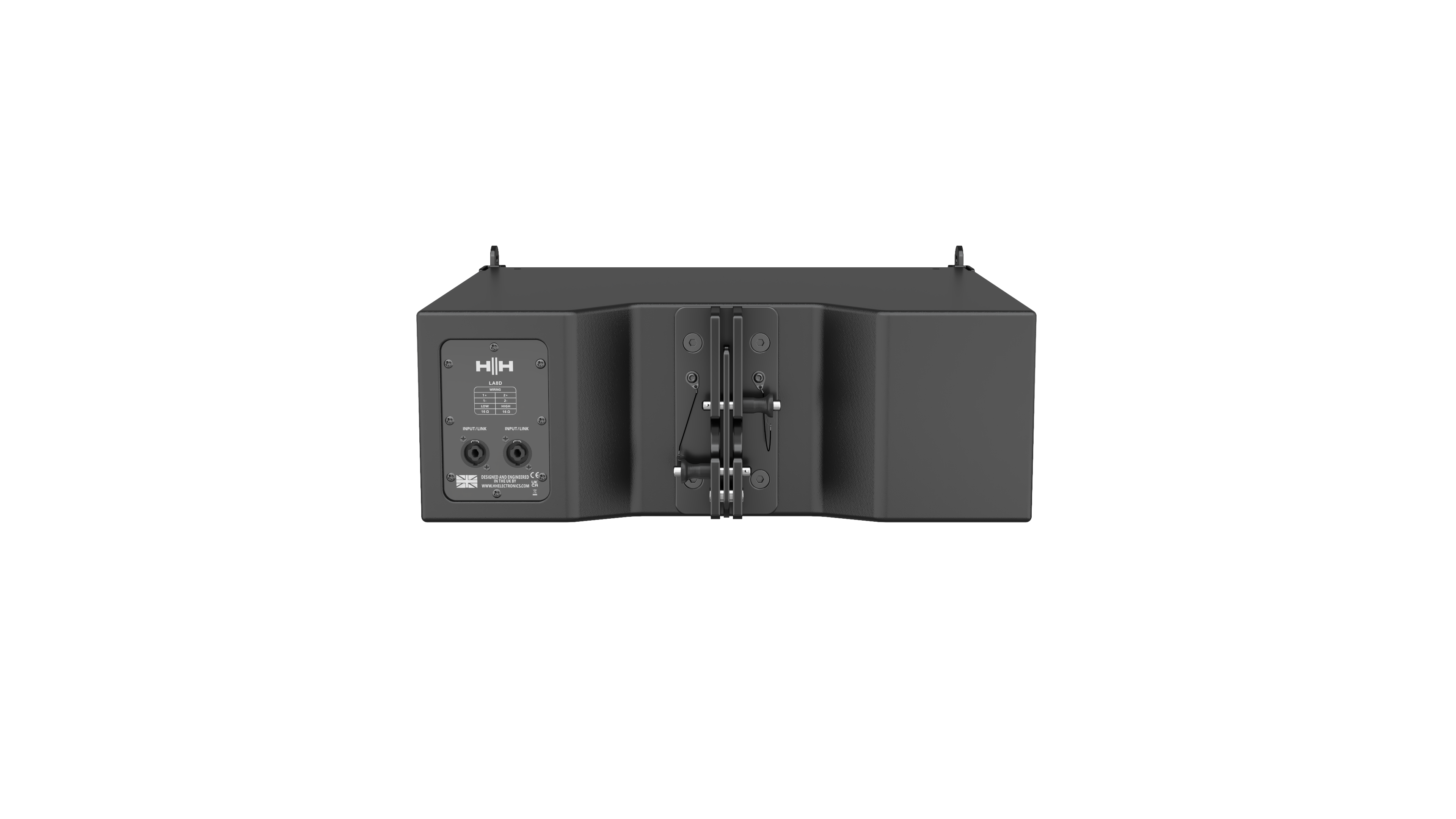

The 520mm wide enclosure is designed to pair seamlessly with the S15-H sub enclosure and features a 3-point rigging system for easily linking and splaying multiple enclosures. The enclosure is composed of robust plywood, finished with black paint and fitted with a hexagonal mesh steel grille with acoustic foam backing.
