Q6FX

Q Series

Q6FX

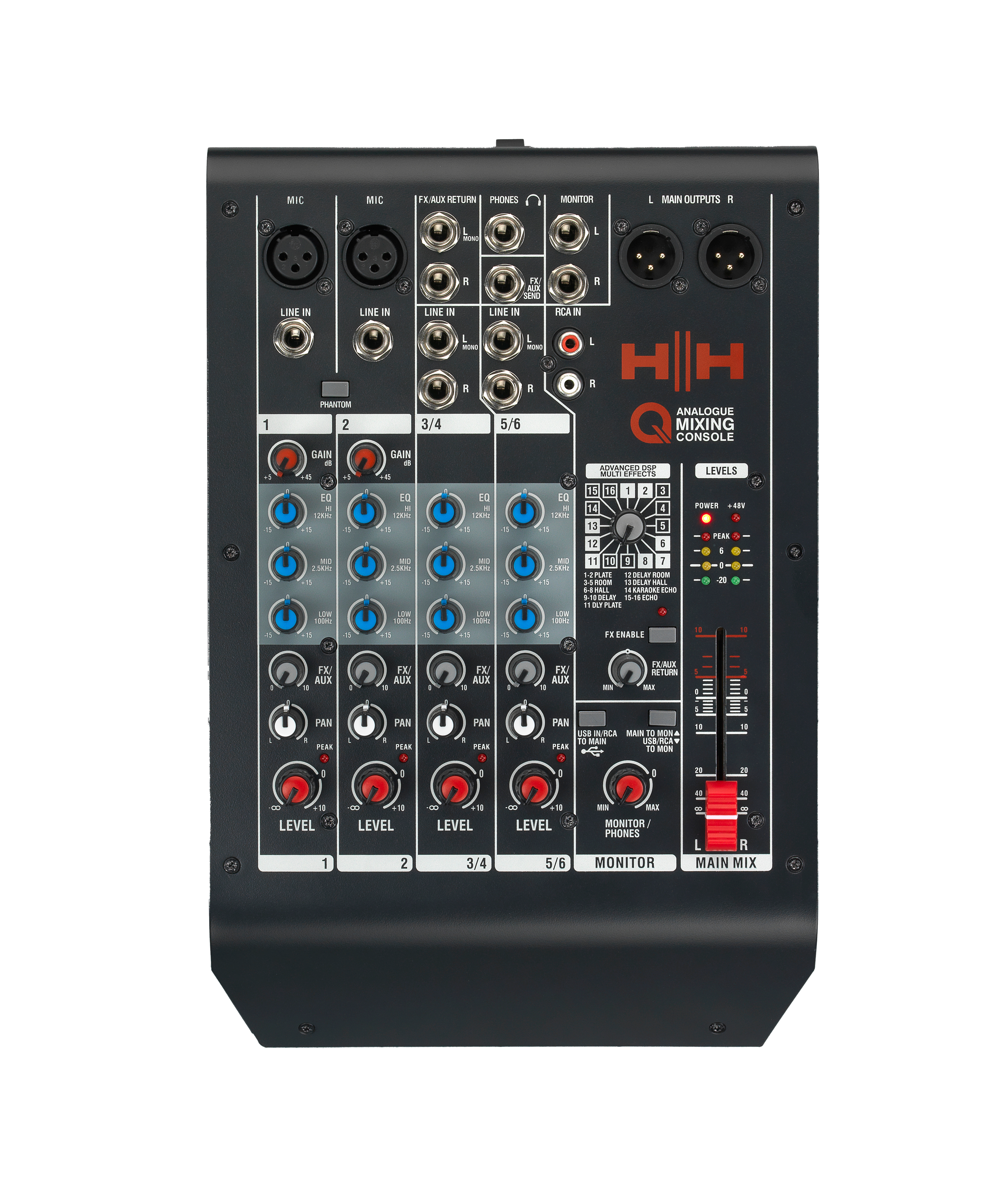

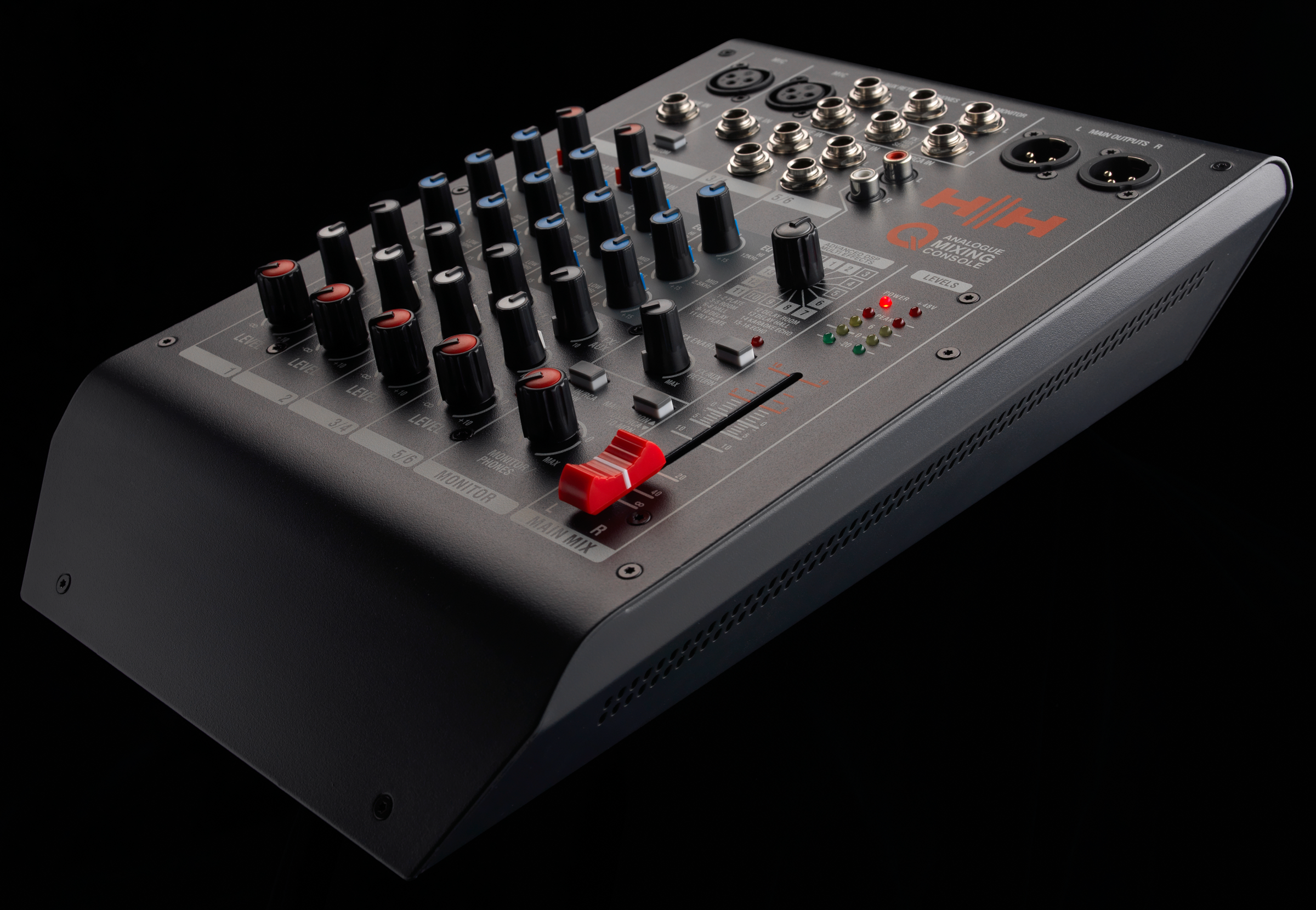

The Q6FX is a compact 6-channel analogue mixing console designed and engineered in the UK. The Q6FX consists of 2 mono input channels with microphone inputs that utilise low-noise microphone preamps as well as a line input option on each channel. The mono input channels sit alongside 2 stereo line input channels perfect for electric pianos, synthesizers, drum machines, stereo audio from an external media player, or any other line-level sources.

Harnessing 4 banks of 3-band EQ and 16 high-quality DSP effects, the Q6FX gives you full control over your audio productions. 2in/2out USB functionality makes the Q6FX the perfect tool for recording performances, podcasts, and music production.

All of this combined with comprehensive monitoring, an auxiliary send with a stereo return, RCA in, global phantom power, pan on each channel, and a 4-point LED meter for your main mix all housed in a robust chassis make the Q6FX a complete portable powerhouse for traveling musicians and engineers alike. 

Features

  • Mic Inputs
    2 x XLR CH1-2
  • Line Inputs (Mono)
    2 x ¼” 6.3mm TRS CH1-2
  • Line Inputs (Stereo)
    2 x Stereo ¼” 6.3mm TRS CH3-6
  • EQ
    3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel
  • Main Outputs
    Balanced Stereo XLR
  • Monitors
    Stereo ¼” 6.3mm TRS sockets
  • FX Send
    Mono ¼” 6.3mm TRS
  • Phones
    Mono ¼” 6.3mm TRS
  • Effects
    16 Reverb and Delay effects with enable switch
  • USB Audio
    Inputs/Outputs: 2-in/2-out, 16-bit, 24-bit, Sample rate: 48kHz.

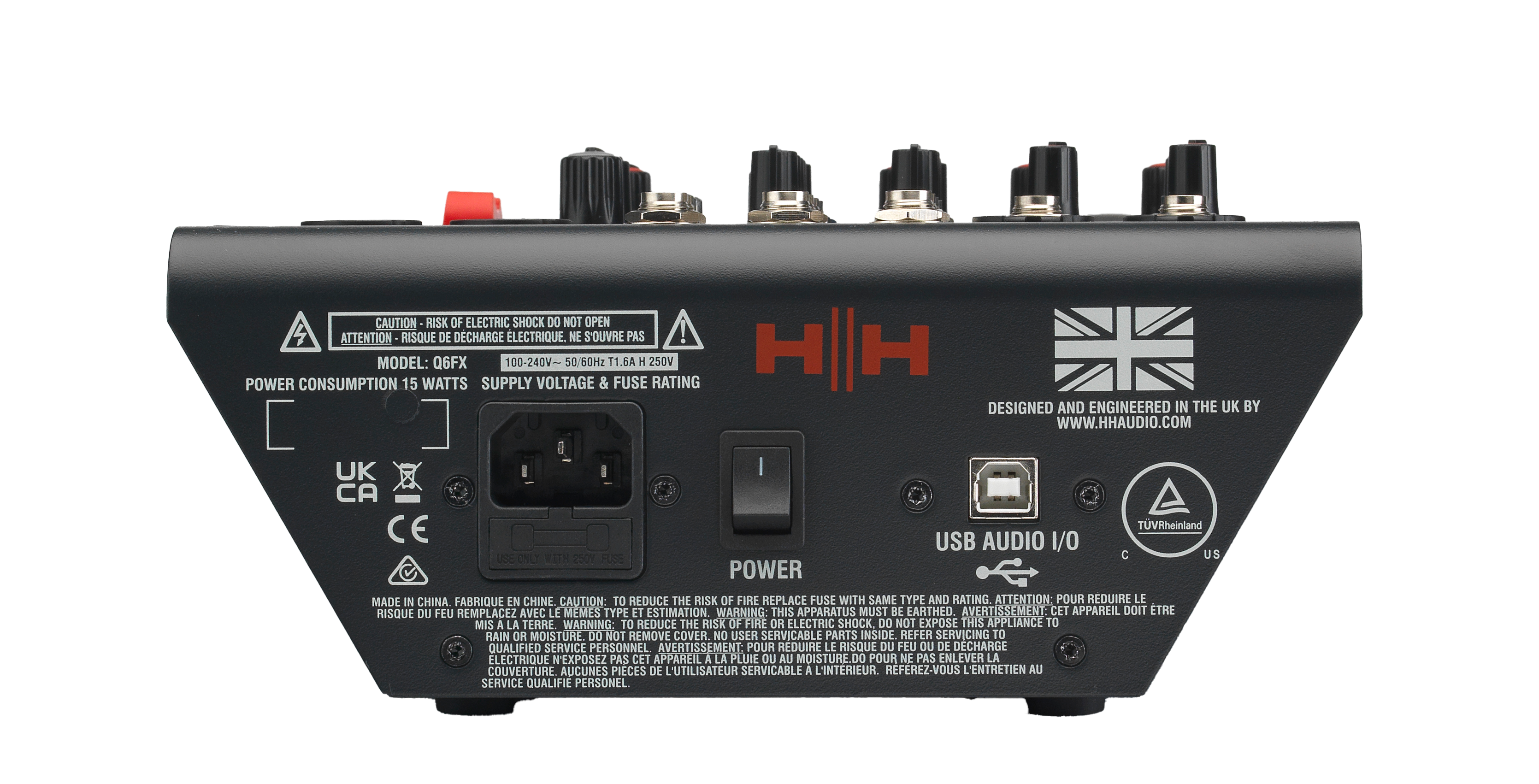

  • AC Power
    Universal 100-240v ~ 60/60Hz (IEC C13 Socket, AC Cord Included.

Analogue Mixing Consoles

The Q Series brings decades of British design and engineering to your audio productions. The series consists of 4 analogue mixing consoles which cover an array of live sound applications (6 channels, 8 channels, 12 channels, and 16 channels). 2in/2out USB expands the functionality of all Q Series mixers even further making these mixers a great tool for music production and recording live performances or podcasts. The Q Series’ comprehensive channel strip allows you to take complete control over the tonal shape, dynamics, and depth of your mixes with low-noise mic-preamps, 3-band EQ, single knob compression, and high-quality DSP effects.
