APT-W8S-BK

The APT-W8S enhances the low-end performance of Aptur audio systems, providing a rich and immersive bass response that perfectly complements APT-C ceiling speakers and APT-P pendant speakers. Designed for background music applications, the APT-W8S brings full-bodied sound to any environment, offering bass extension that provides a well-balanced sonic accompaniment enhancing mood and atmosphere in bars, restaurants, cafes, retail environments, and beyond.

The APT-W8S features a custom-designed HH LF driver with 89dB sensitivity and 100W AES power handling, yielding a maximum SPL of 109 dB. With a frequency response extending down to 40Hz, this slim and unobtrusive subwoofer ensures deep, resonant bass reproduction.

Built for flexibility, the APT-W8S features an integrated multi-tap transformer enabling use in Lo-Z and 70V/100V applications.

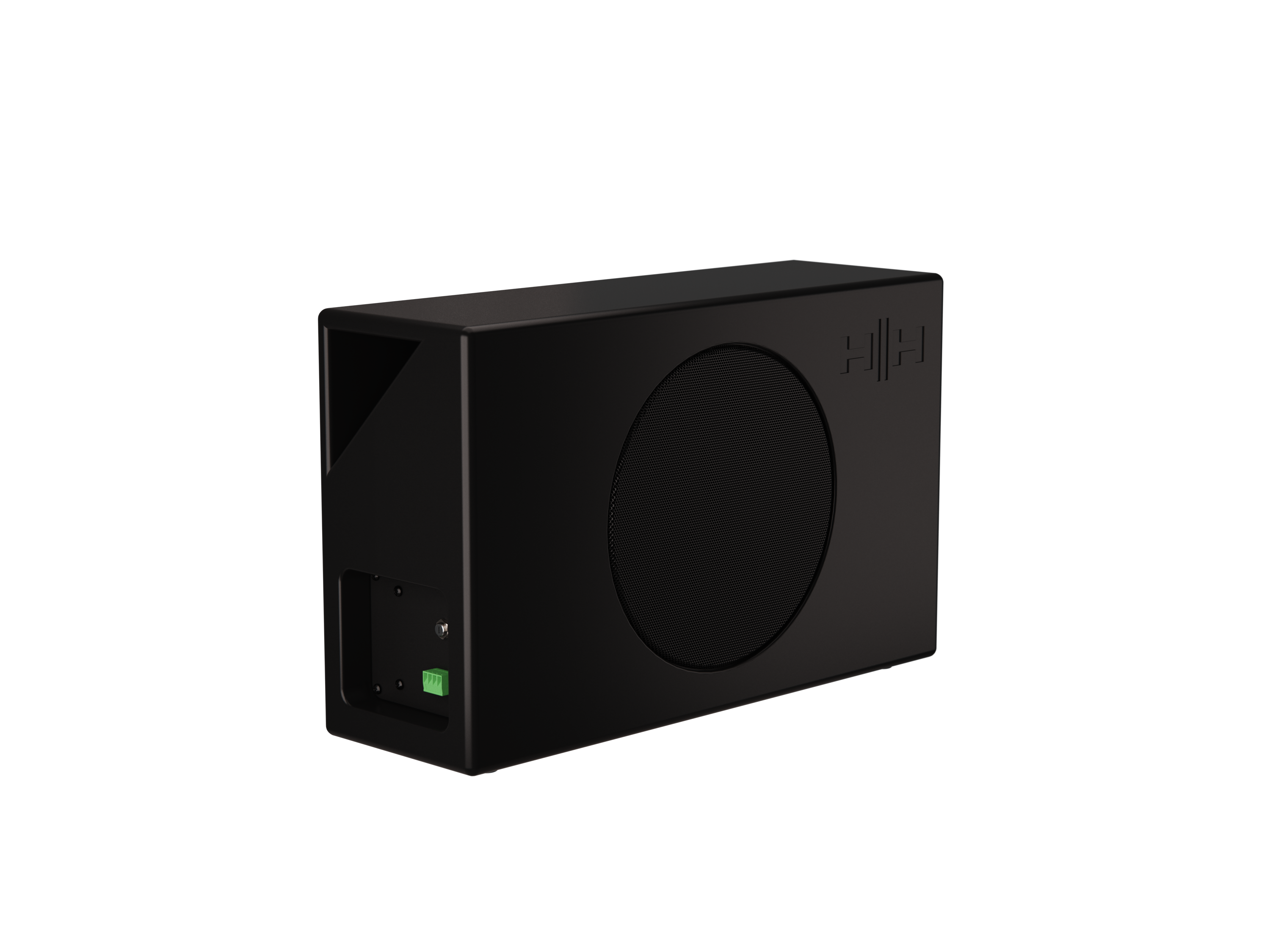

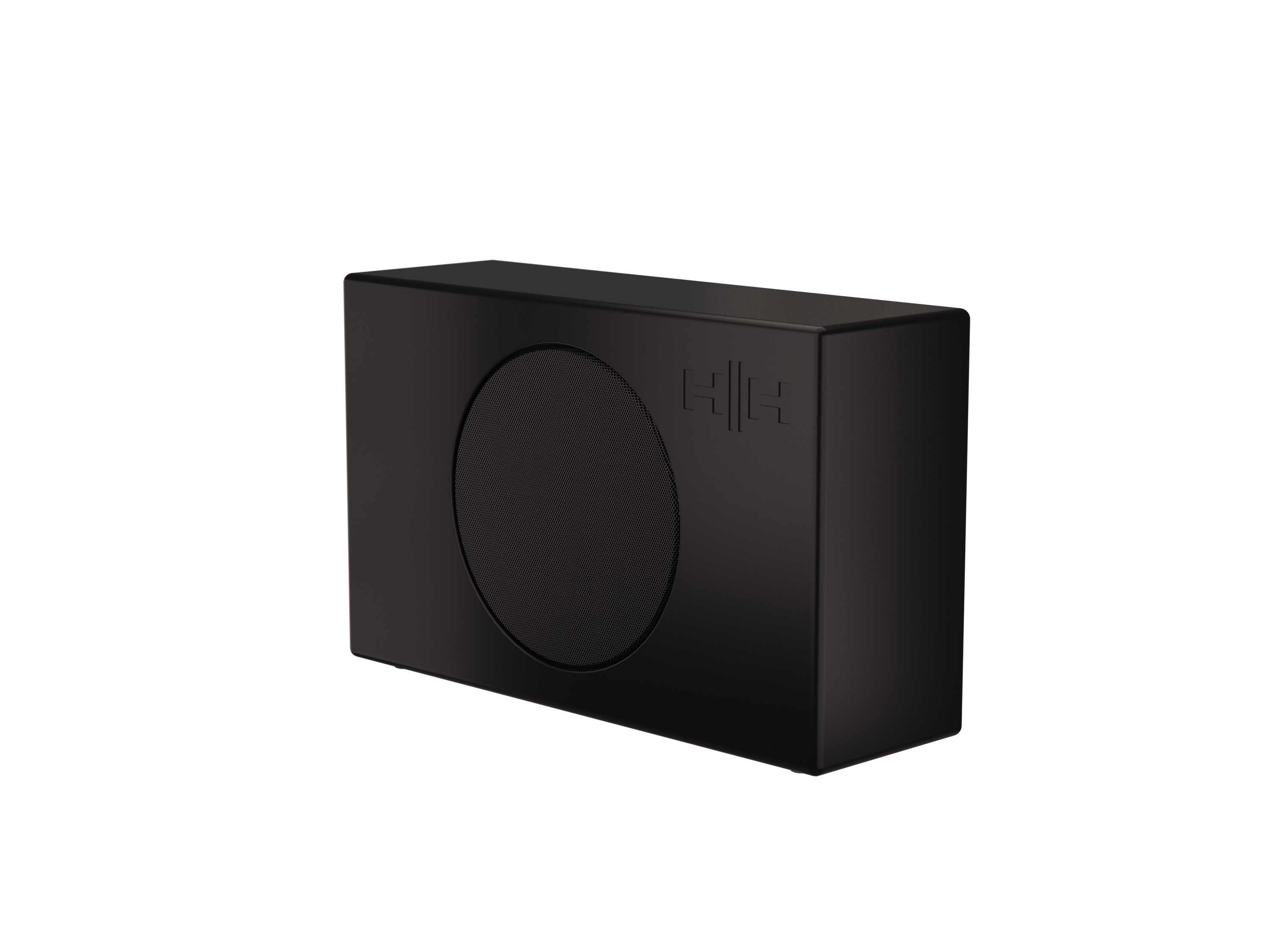

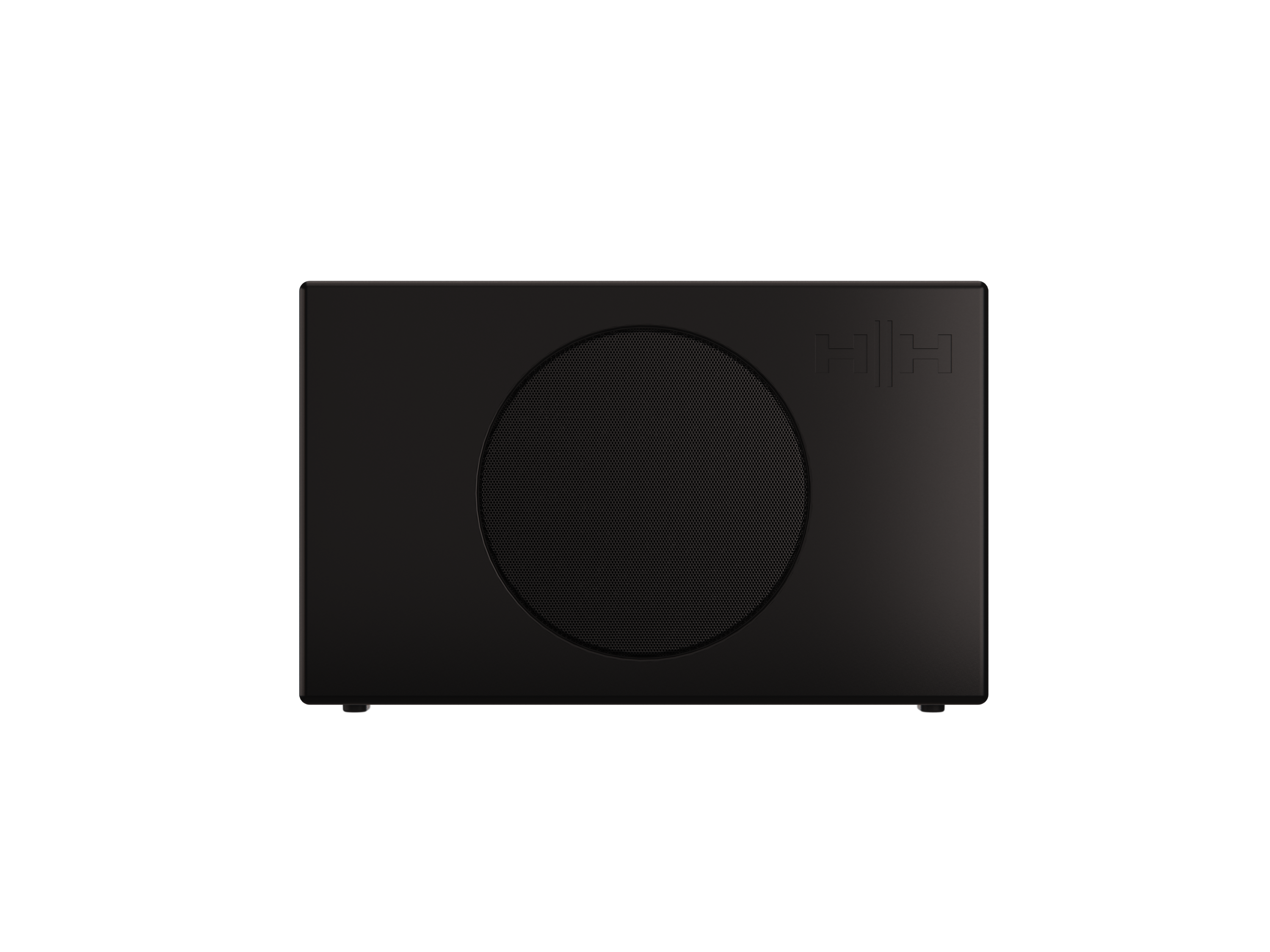

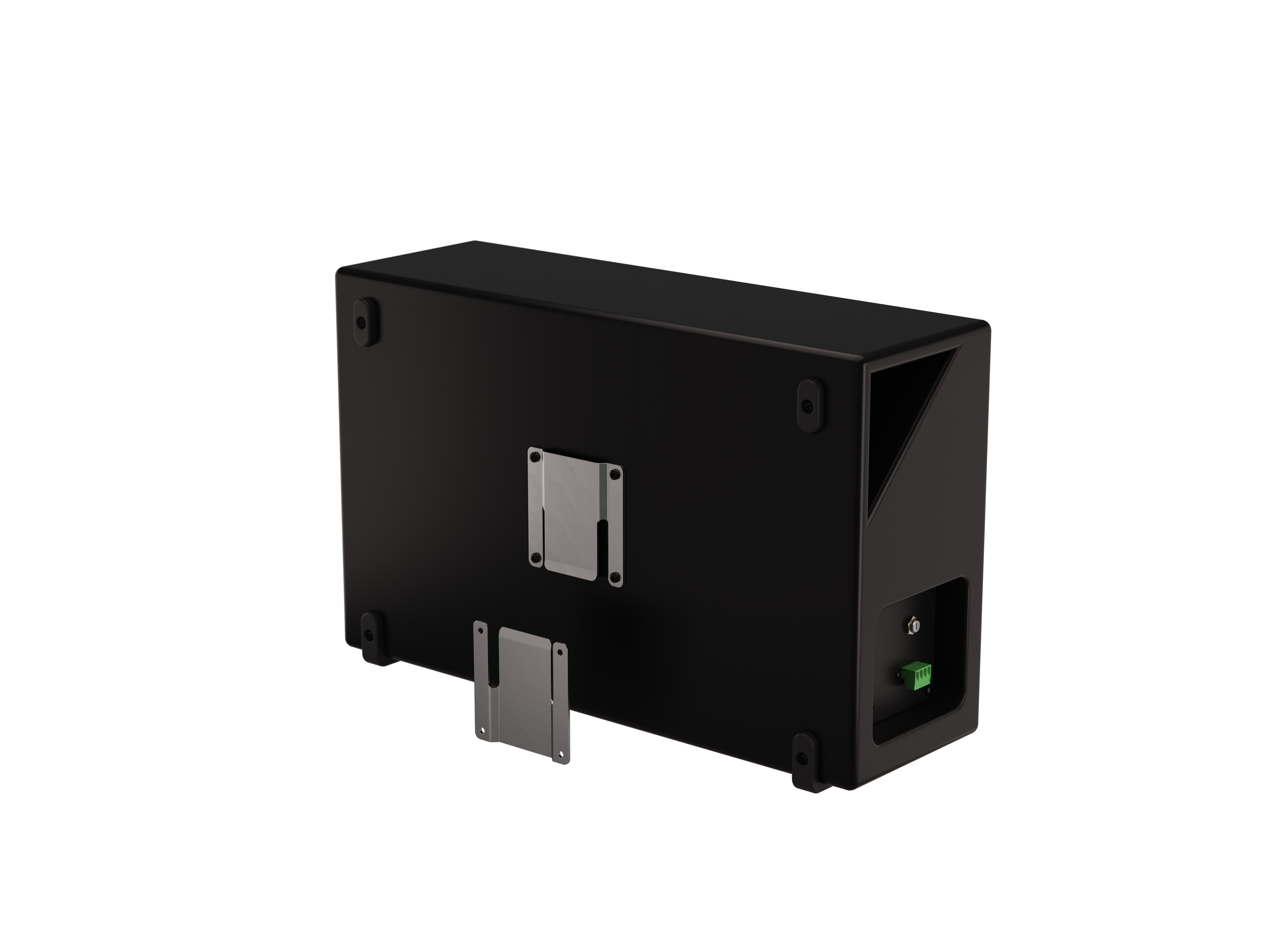

The APT-W8S slimline enclosure is thoughtfully designed for both form and function. The enclosure is appointed with rubber feet to provide stability as well as isolation from resonant surfaces while the included mounting bracket allows for discrete surface mounting to blend seamlessly into any environment or be hidden out of sight completely.

Whether for retail, hospitality, or corporate installations, the APT-W8S delivers exceptional bass performance with adaptability and ease.

Features

  • System Type
    Surface Mount Subwoofer
  • LF Driver

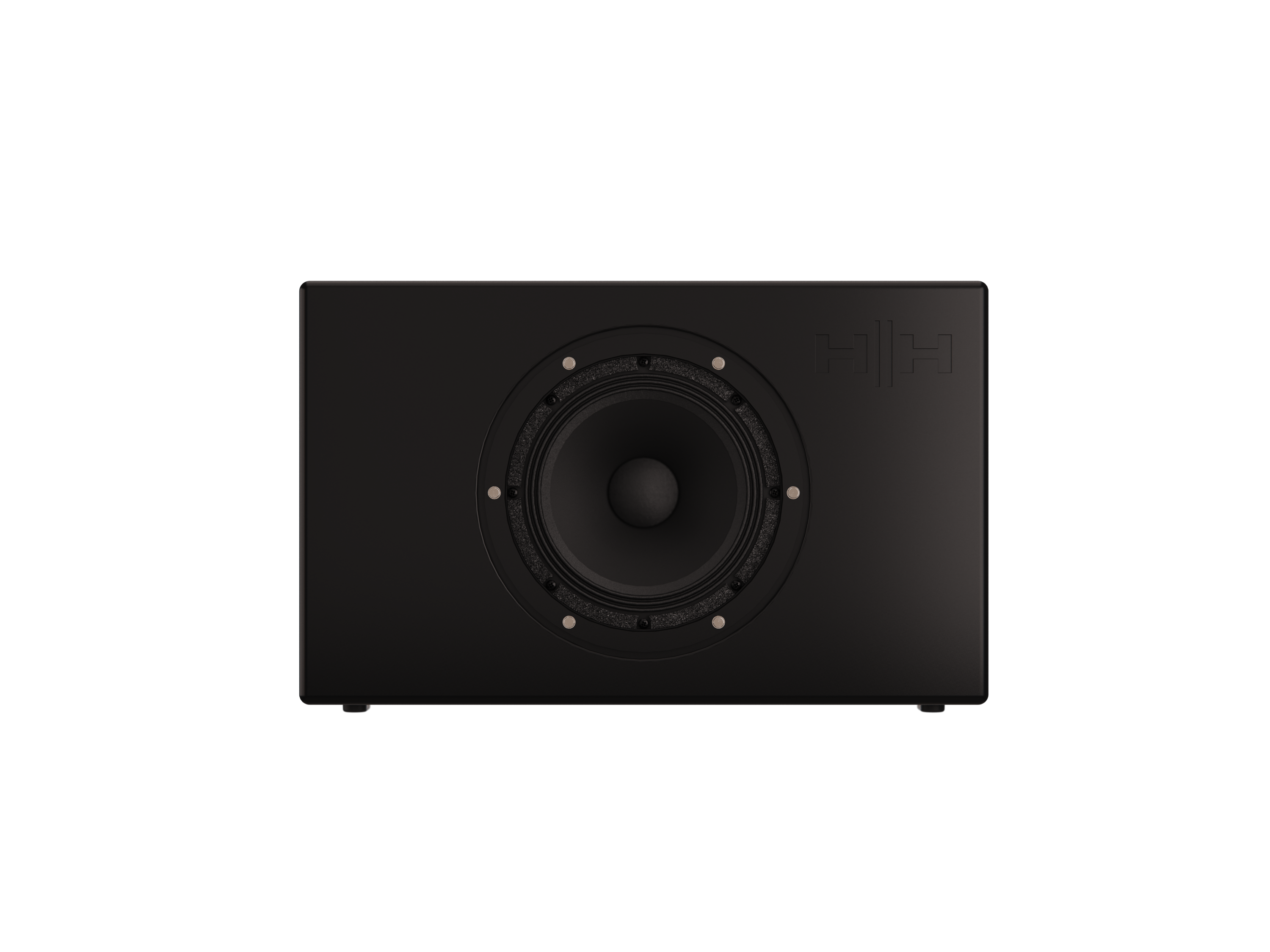

    8-inch HH -Designed Low Frequency Driver
  • 100V Power Options
    100W, 50W, 25W, 13W
  • 70V Power Options
    100W, 50W, 25W, 13W, 6W
  • Nominal System Impedance
    8 Ohms
  • Power
    100W AES, 200W Continuous, 400W Peak
  • Recommended Amplifer
    MZ-140D, MZ-140Q, MZ-280Q
  • Sensitivity (1W/1M)
    89dB
  • Max SPL
    109 dB SPL, 115dB SPL (Peak).
  • Frequency Response
    40Hz-200Hz
  • Input Link Connector
    4-pin Euroblock +/- +/-
  • Main Construction Material
    Plywood
  • Finish
    Black/White Paint
  • Grille
    Black Fine Mesh Perforated Steel with Powdercoated Finish
  • Mounting Bracket
    Steel surface mount bracket included.
  • Dimensions
    With Feet (HWD) - 327mm x 520mm x 175mm Without Feet (HWD) - 320mm x 520mm x 168mm Wall Clearance with Bracket - 10mm

Installation Loudspeakers

Introducing Aptur: an elegant range of precisely engineered installation loudspeakers designed to integrate into any environment seamlessly. APT-CL - Sleek column array loudspeakers designed with an emphasis on pronounced audio directivity; enabling intelligible audio to be distributed directly to listeners even in acoustically challenging spaces. APT-C – seamlessly integratable 2-way ceiling-mounted loudspeakers available in three sizes (4-inch, 6.5-inch, and 8-inch). APT-C ceiling speakers provide uniform coverage and exceptionally detailed audio making them well-suited to a vast range of applications from hospitality settings to corporate environments. APT-CS – an 8-inch ceiling-mounted subwoofer supporting other elements of the Aptur range by extending the low-end frequency response of the overall system, thus providing a rich, full-range sonic experience. APT-P – an elegant 2-way 6.5-inch pendant loudspeaker extending the potential applications of the Aptur range to environments with cavernous high ceilings bringing sound closer to the listener, or spaces without a cavity space beyond the ceiling to mount a traditional ceiling speaker. APT-WS – echoing the low-frequency acoustic benefits of the APT-CS, this surface mountable 8-inch subwoofer provides low-end frequency extension with its direct radiating design. APT-WS products can be discretely installed in a multitude of environments. Working alongside other products in the range this slim profile subwoofer immerses listeners in a deep and rich soundscape.
