VRM-15A

Archived

VRM-15A Discontinued

The Vector VRM monitor range; designed and engineered in the UK to offer professional audio performance whilst occupying a small footprint in application.

Powered by high performance amplifiers, the VRM monitor range achieves an impressive SPL of up to 119dB. With the inclusion of renowned HH drivers the VRM range offer controlled audio projection with 80° H x 80° V directivity, making the VRM monitor a great choice for foldback.The VRM range features an on-board 3-channel mixer with balanced XLR/Jack inputs allowing multiple mic or line level sources to be monitored simultaneously. Also included is a 2-band EQ for audio adjustment, balanced mix out to connect to additional devices and a 3.5mm auxiliary input, allowing for direct phone or tablet connection.

Features

  • Input Connector
    2 x Balanced Jack/XLR Combi inputs (With Mic/Line Switch), stereo mini jack Aux
  • Monitor Angle
    30°
  • Pole Mount
    35mm
  • Grille
    Heavy Duty Steel, Powdercoated Dark Grey
  • Mix Out Connector
    Balanced Male XLR
  • Controls
    3 x Channel gain, Bass, Treble, Master Volume
  • Features
    Comprehensive protection
  • Power Supply
    Low Noise Toroidal Transformer. (Switchable 120/230V)

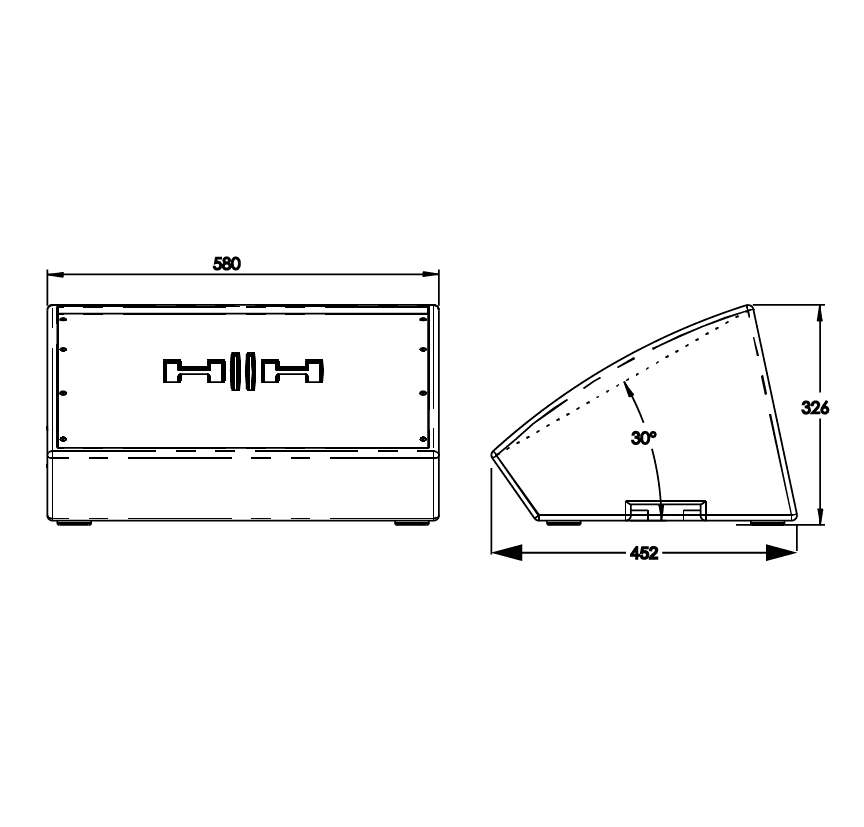

  • Unit Dimensions (Hwd)
    319 x 580 x 452mm, 12.6" x 22.8" x 17.8"
  • Unit Weight
    15Kg, 33.1 lbs
  • Carton Dimensions (Hwd)
    620 x 480 x 375mm, 24.4" x 18.9" x 14.8" , 0.112 M3
  • Packed Weight
    16Kg, 35.3 lbs
  • Power
    600W
  • Amplifier Type
    Class A/B
  • LF Driver
    15" HH designed driver
  • HF Driver
    1" HH designed driver
  • Features
    Inbuilt 3 channel mixer with channel gain, Bass, Treble, Aux in and master volume
  • Max SPL
    119dB
  • Frequency Response
    40Hz - 20kHz
  • Coverage
    80°
  • Cabinet
    Lightweight multilayer plywood construction

Downloads
