VRM-10A

Archived

VRM-10A Discontinued

The Vector VRM monitor range; designed and engineered in the UK to offer professional audio performance whilst occupying a small footprint in application.

Powered by high performance amplifiers, the VRM monitor range achieves an impressive SPL of up to 119dB. With the inclusion of renowned HH drivers the VRM range offer controlled audio projection with 80° H x 80° V directivity, making the VRM monitor a great choice for foldback. The VRM range features an on-board 3-channel mixer with balanced XLR/Jack inputs allowing multiple mic or line level sources to be monitored simultaneously. Also included is a 2-band EQ for audio adjustment, balanced mix out to connect to additional devices and a 3.5mm auxiliary input, allowing for direct phone or tablet connection.

Features

  • Monitor Angle
    30°

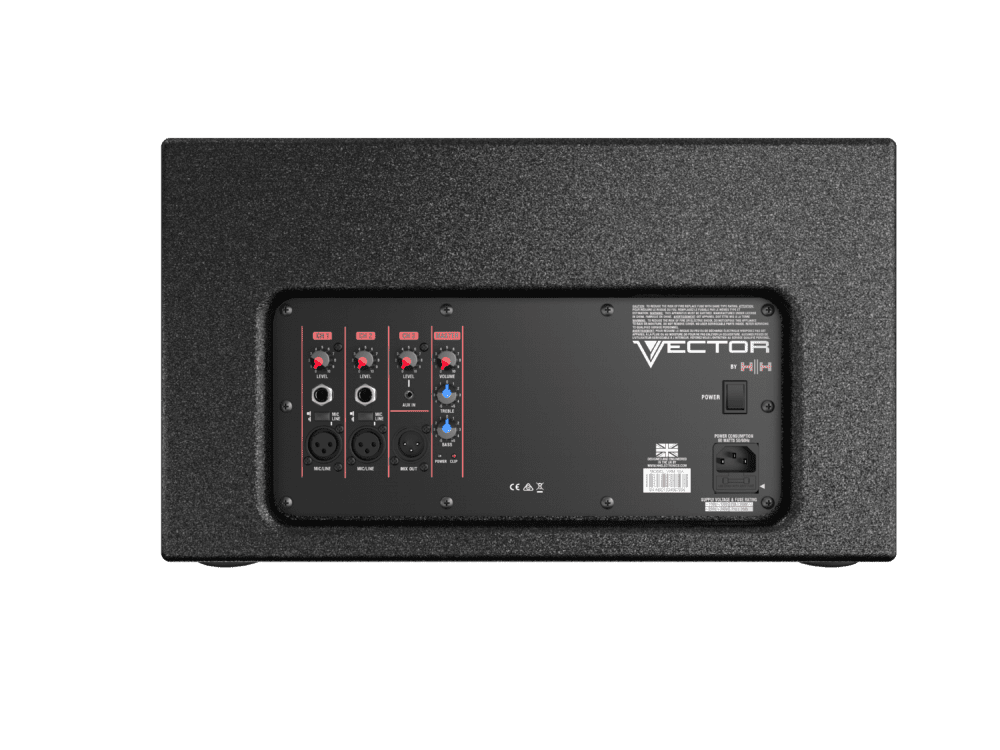

  • Input Connector
    2 x Balanced Jack/XLR Combi inputs (With Mic/Line Switch), stereo mini jack Aux
  • Mix Out Connector
    Balanced Male XLR
  • Controls
    3 x Channel gain, Bass, Treble, Master Volume
  • Power Supply
    Low Noise Toroidal Transformer. (Switchable 120/230V)

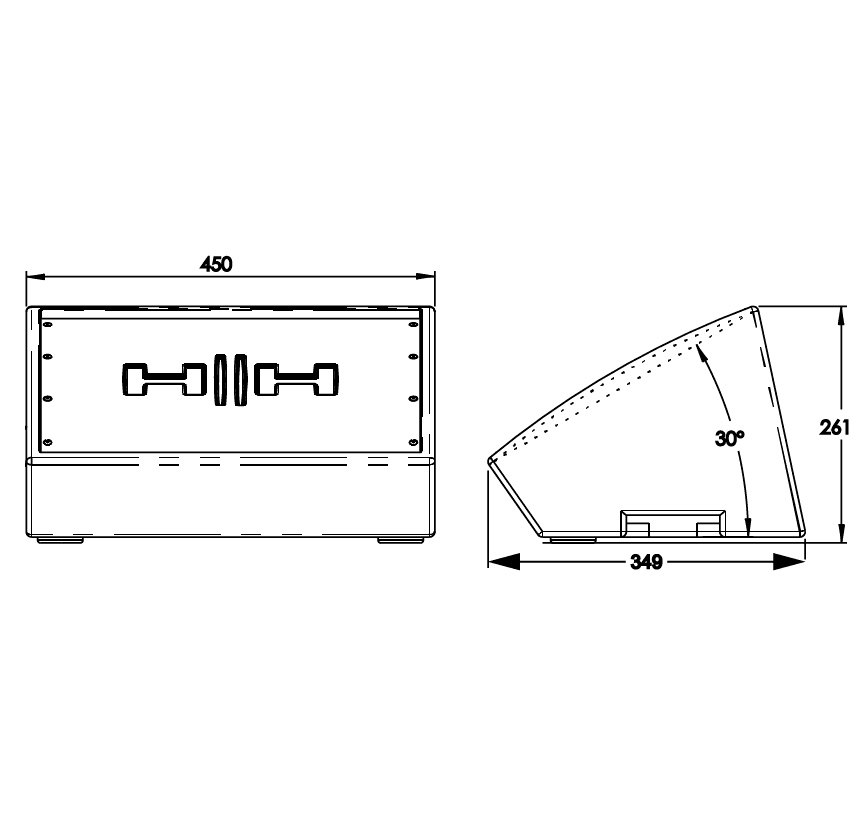

  • Unit Dimensions (Hwd)
    255 x 450 x 349mm, 10" x 17.7" x 13.7"
  • Unit Weight
    9.5Kg, 20.9 lbs
  • Carton Dimensions (Hwd)
    490 x 380 x 310mm, 19.3" x 15" x 12.2" , 0.058 M3
  • Packed Weight
    10.3Kg, 22.7 lbs
  • Features
    Inbuilt 3 channel mixer with channel gain, Bass, Treble, Aux in and master volume
  • Power
    200W
  • Amplifier Type
    Class D
  • Max SPL
    114dB
  • HF Driver
    1" Compression driver
  • LF Driver
    10" HH designed driver
  • Frequency Response
    70Hz - 20kHz
  • Coverage
    80°
  • Cabinet
    Lightweight multilayer plywood construction
  • Grille
    Heavy duty steel, powdercoated dark grey
  • Pole Mount
    35mm
