TSM-15A

Archived

TSM-15A Discontinued

Any live performer appreciates the importance of good monitors. TESSEN-SM series active monitors are engineered to give the detail and clarity your performance needs without taking up all the space on stage. Focused power where you need it.

Features

  • Inputs
    Balanced Jack/XLR combi input
  • Outputs
    Balanced XLR

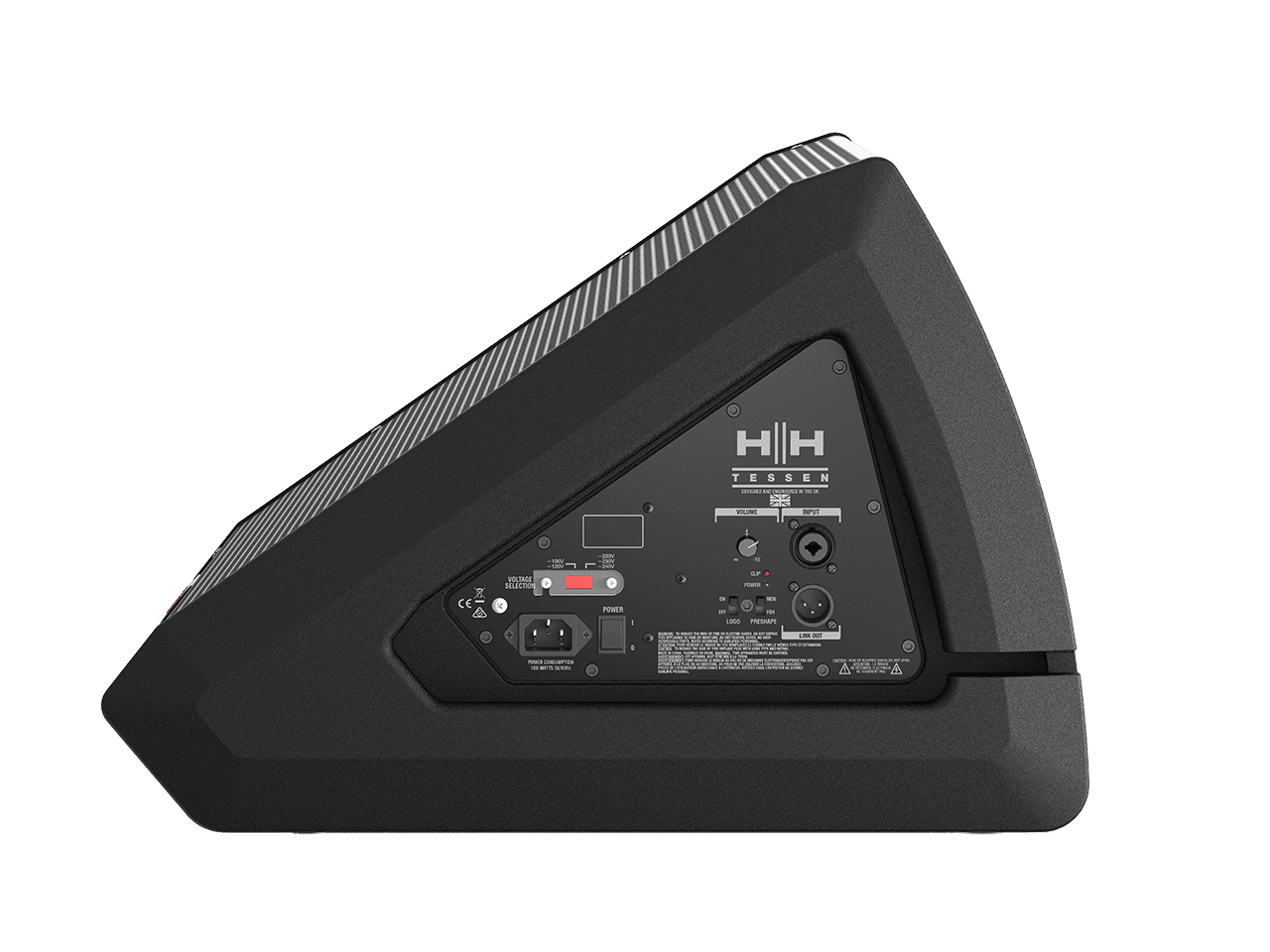

  • Controls
    Volume, Preshape EQ (Mon/FOH), Logo On/OFF
  • Features
    EQ preset switch, HH ‘Cablerun’, individual volume control, logo illumination switch
  • Pole Mount
    35mm
  • Cabinet
    Robust all wood construction
  • Monitor Angle
    35º

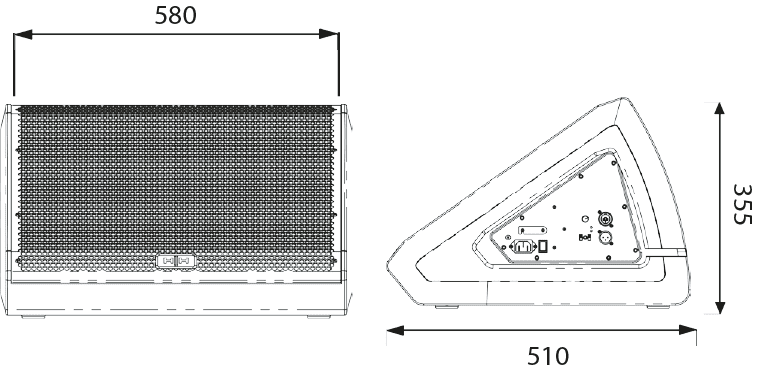

  • Dimensions
    355mm(h) x 580mm(w) x 510mm(d)
  • Weight
    18.5kg

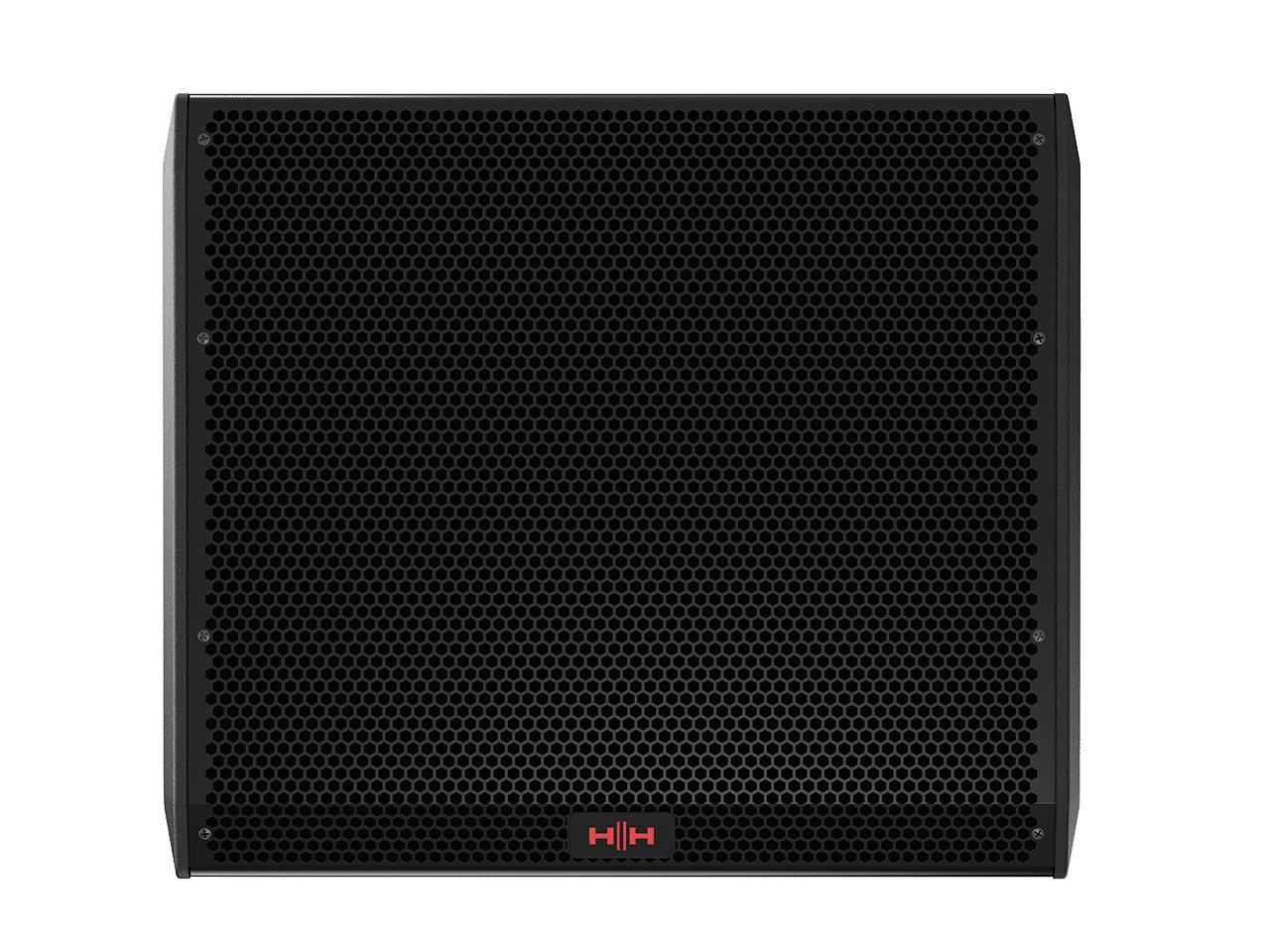

  • Grille
    Heavy gauge steel with illuminating logo
  • System Type
    2 Way active monitor
  • Power
    800W
  • Amplifier Type
    Bi-amp Class D
  • Power Supply
    Switchmode
  • HF Driver
    1” LaVoce DF10 compression driver
  • LF Driver
    15" HH LG-436EH
  • Frequency Response
    58Hz - 20kHz
  • Max SPL
    124dB
  • Coverage
    70°H X 70°V

Downloads

User Manual

view Support
