TNX-1581

Archived

TNX-1581 Discontinued

Engineered for the best audio quality, with complete flexibility and class-leading features, the TESSEN-X series sets the standard for high power, compact, professional systems. Equally at home on the road or installed in a venue, the TESSEN-X series is a sound investment. Capable of being a full, stand alone system for Front of House and Side-fill applications, or combined with the TNS-1800 Active subwoofer, the TESSEN-X 1581 delivers room-filling sound with amazing clarity and detail. 2600W asymmetric Class D Bi-amp power stage with digital signal processing and an extensive feature set create an unbeatable pro audio product.

Features

  • Weight
    31.1kg

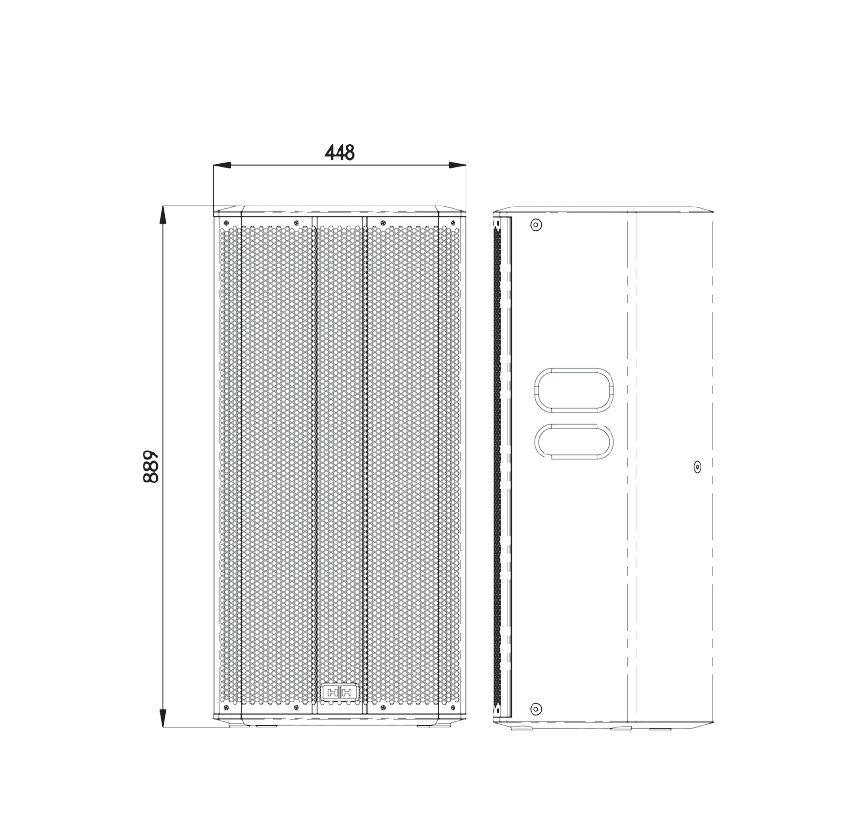

  • Dimensions
    885mm(h) x 450mm(w) x 390mm(d)
  • Grille
    Heavy gauge steel with acoustic foam backing and illuminating logo
  • Cabinet
    Lightweight multilayer plywood
  • Pole Mount
    35mm
  • Flying Points
    7 x M10 Penn-Elcom fly points
  • Features
    12 frequency automatic feedback reduction, dual input channels, preset and variable EQ. Comprehensive protection and clip free limiting
  • Controls
    2 x channel gain, EQ preset, EQ frequency and boost , Anti feedback switch, logo on/off, ch1/mix switch for line out
  • Outputs
    Balanced XLR
  • Inputs
    2 x Balanced Jack/XLR combi inputs
  • System Type
    3 Way active speaker
  • Power
    2600W
  • Amplifier Type
    Bi-amp Class D
  • Power Supply
    Switchmode
  • DSP
    Crossover, EQ, Phase and time optimisation
  • HF Driver
    1.4” CELESTION CDX1 compression driver
  • LF Driver
    15" CELESTION TF1525E + 8" HH MD- 428DN mid range
  • Frequency Response
    39Hz - 20kHz
  • Max SPL
    134dB
  • Coverage
    90°H X 60°V
