TNX-1201

Archived

TNX-1201 Discontinued

The 2600W TESSEN-X TNX-1201 Active speaker gives unmatched performance in a lightweight compact package. Foam backed 1.5mm steel grille, multi-layer plywood construction, an attractive hard-wearing finish and precision engineered components ensure the TNX-1201 out performs bigger, more expensive systems. TESSEN-X Engineered for the best audio quality, with complete flexibility and class-leading features, the TESSEN-X series sets the standard for high power, compact, professional systems. Equally at home on the road or installed in a venue, the TESSEN-X series is a sound investment.

Features

  • Features
    12 Frequency automatic feedback reduction, dual input channels, preset and variable EQ, comprehensive protection and clip free limiting
  • Flying Points
    7 x M10 Penn-Elcom fly points
  • Pole Mount
    35mm
  • Cabinet
    Lightweight multilayer plywood
  • Grille
    Heavy gauge steel with acoustic foam backing and illuminating logo
  • Monitor Angle
    35º

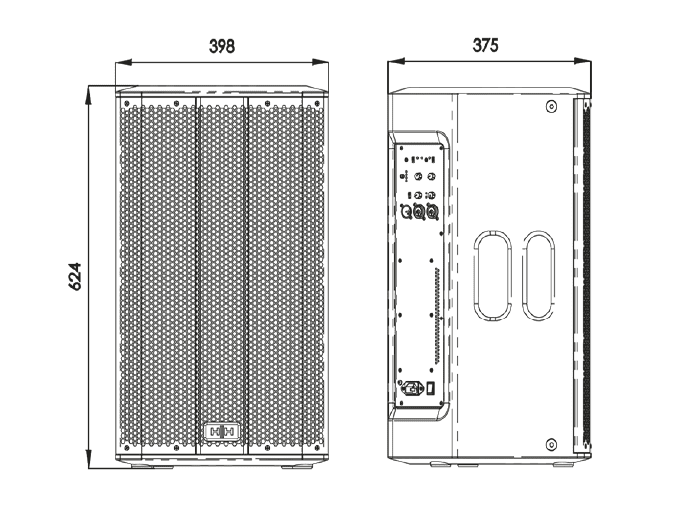

  • Dimensions
    625mm (h) x 400mm (w) x 375mm (d)
  • Weight
    20.7kg
  • Controls
    2 x Channel Gain, EQ Preset, EQ Frequency & Boost, Anti Feedback Switch, Logo on/off, Ch1 / mix switch for line out
  • Outputs
    Balanced XLR
  • Inputs
    2 x Balanced Jack / XLR Combi Inputs
  • System Type
    2 Way active speaker
  • Power
    2600W
  • Biamp Mode
    Yes
  • Amplifier Type
    Class D
  • Amplifier Type
    Class D
  • Power Supply
    Switchmode
  • DSP
    Crossover, EQ, Phase, & time optimisation
  • HF Driver
    1.4" CELESTION CDX1 compression driver
  • LF Driver
    12" CELESTION TF1225
  • Frequency Response
    45Hz - 20kHz
  • Max SPL
    132dB
  • Coverage
    90°H X 60°V
