TNP-2151

Archived

TNP-2151 Discontinued

Sharing many of the features of the higher power Tessen-X series, the new Tessen series continues our reputation for affordable high performance systems.

Features

  • Cabinet
    Lightweight multilayer plywood
  • Grille
    Heavy gauge steel with acoustic foam backing

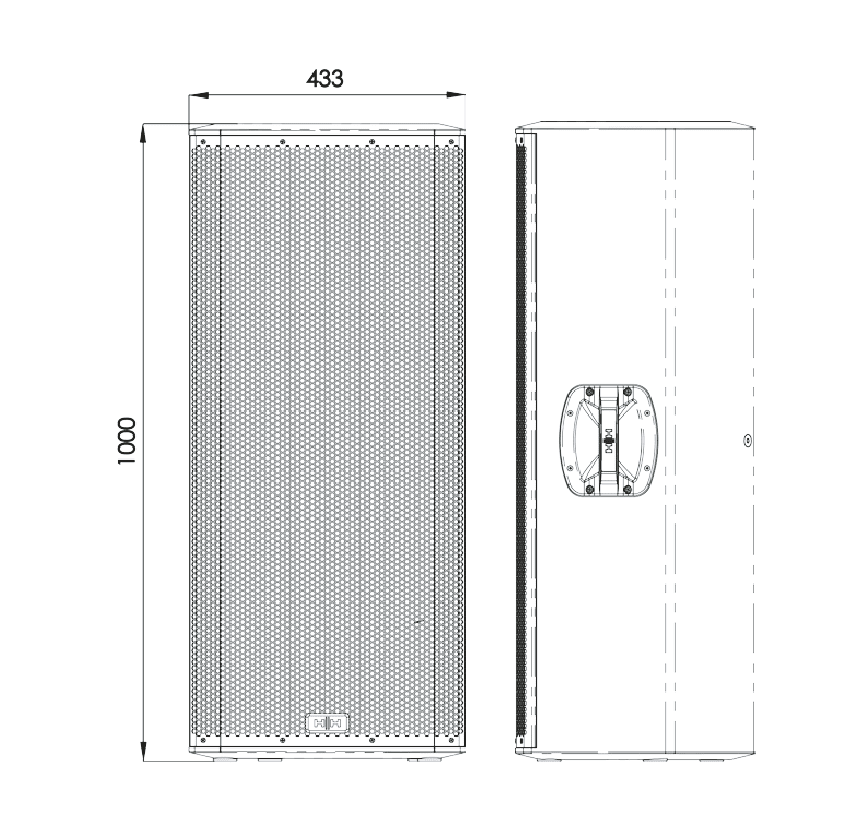

  • Dimensions
    995mm(h) x 435mm(w) x 375mm(d)
  • Weight
    28.3kg
  • Flying Points
    3 x M10 Penn-Elcom fly points
  • Biamp Mode
    Yes
  • Inputs
    2 x 4 Pole locking connector
  • System Type
    Biamp capable 2 way passive speaker
  • System Type
    Biamp capable 2 way passive speaker
  • Power
    2000W
  • HF Driver
    1" LaVoce DF10 Compression driver
  • LF Driver
    2 X 15" HH LG-436EH drivers
  • Frequency Response
    40kHz - 20kHz
  • Max SPL
    134dB
  • Coverage
    90°H X 60°V

Downloads

2D Drawing

3D Drawing

Datasheet

EASE Data

HiRes Image

User Manual
