TNP-1501

Archived

TNP-1501 Discontinued

Sharing many of the features of the higher power Tessen-X series, the new Tessen series continues our reputation for affordable high performance systems.

Features

  • Biamp Mode
    Yes
  • Pole Mount
    35mm
  • Cabinet
    Lightweight multilayer plywood
  • Grille
    Heavy gauge steel with acoustic foam backing
  • Monitor Angle
    35°

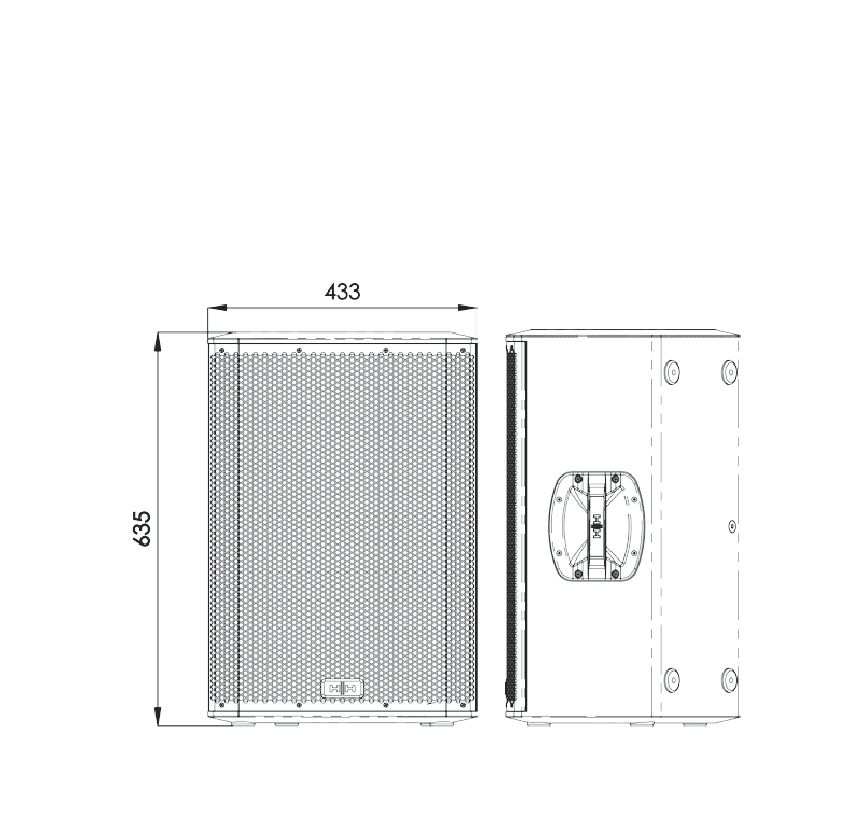

  • Dimensions
    630mm(h) x 435mm(w) x 375mm(d)
  • Weight
    18.2Kg
  • Flying Points
    3 x M10 Penn-Elcom fly points
  • System Type
    Biamp capable 2 way passive speaker
  • Power
    800W
  • HF Driver
    1" LaVoce DF10 compression driver
  • LF Driver
    15" HH LG-436EH driver
  • Frequency Response
    57Hz - 20kHz
  • Max SPL
    126dB
  • Coverage
    90°H X 60°V
  • Inputs
    2 x 4 pole locking
