TNi-4030

Archived

TNi-4030 Discontinued

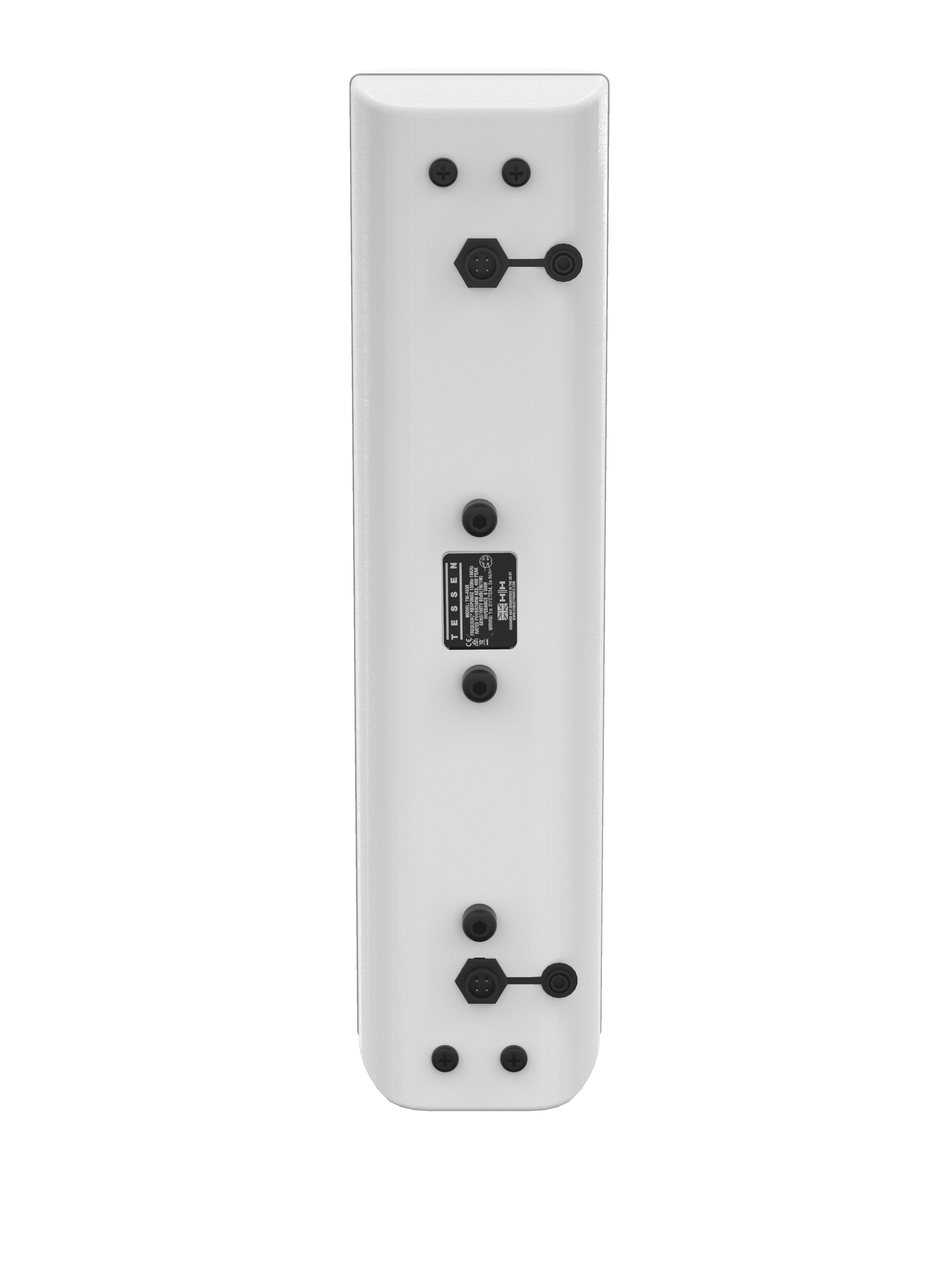

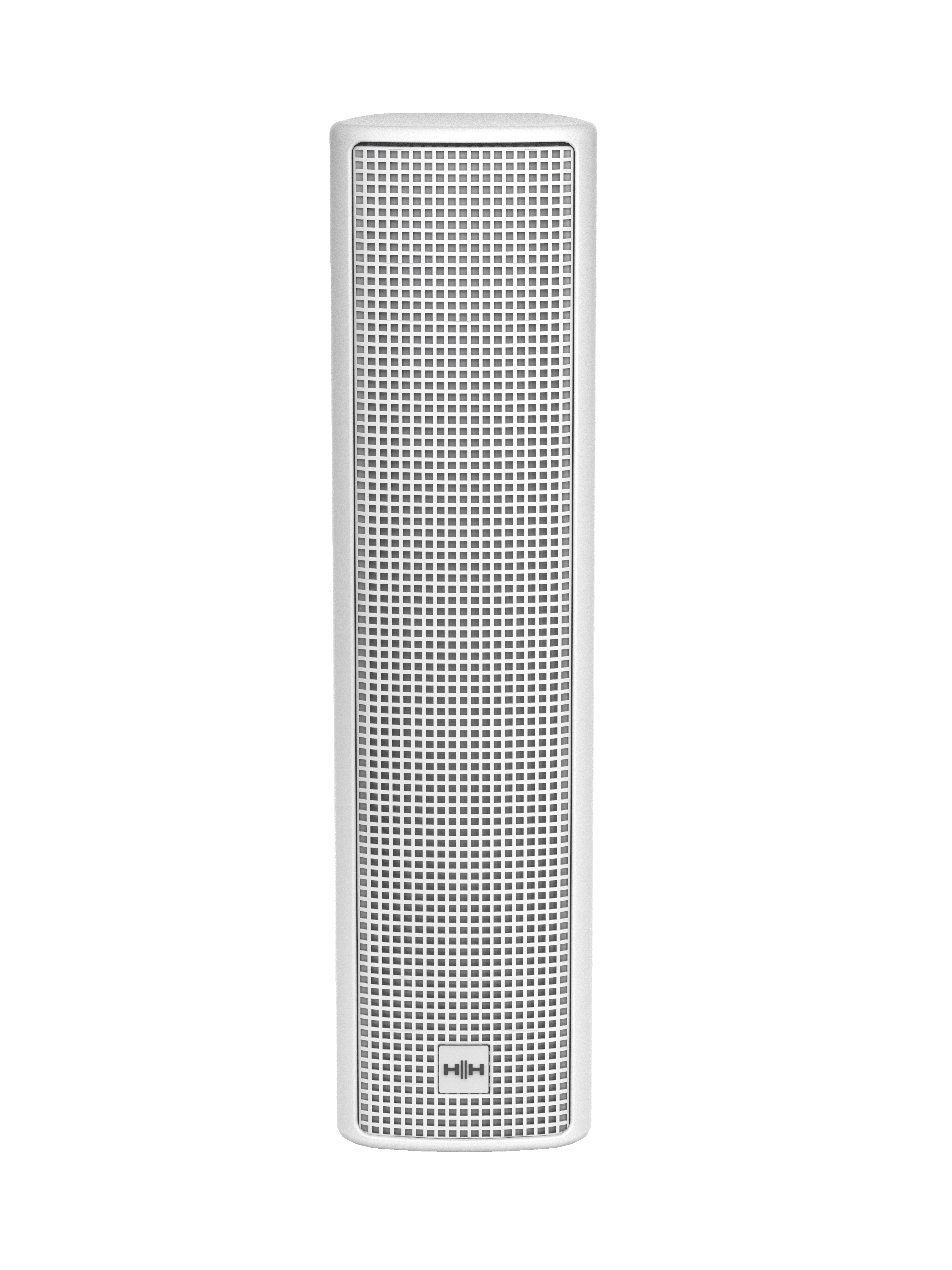

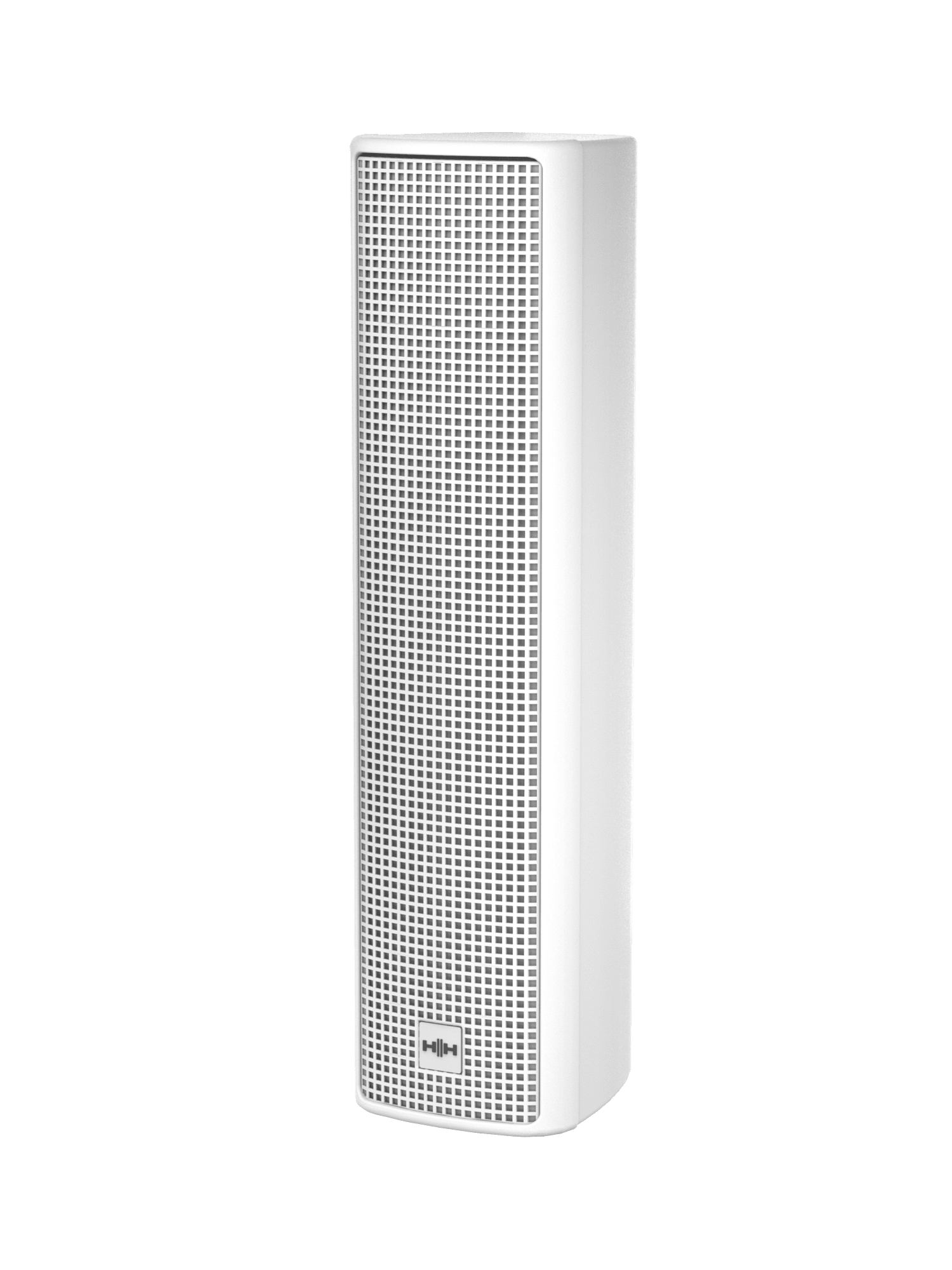

The HH TNi-4030 cabinet is an ultra-compact full range loudspeaker in the Tessen Installation Range. It is designed to provide maximum performance in its class and be visually unobtrusive It is designed primarily for fixed install use.

Features

  • Link Connector
    4 Pole Weatherproof connector (IP68)
  • Cabinet
    Injection Moulded
  • Finish
    White, Black finish options available
  • Mounting Bracket
    2 x M8 mounting points for optional HH-BRK10 (sold separately)
  • Unit Dimensions (Hwd)
    410 x 105 x 120mm, 16.1" x 4.1" x 4.7"
  • Unit Weight
    3.2Kg/pc, 7.1 lbs/pc
  • Carton Dimensions (Hwd)
    465 x 320 x 150mm, 18.3" x 12.6" x 5.9"
  • Packed Weight
    7.9Kg, 17.4 lbs
  • Linking Bracket
    2 x Mounting points for optional HH-LC3 linking bracket
  • System Type
    4 x 3" Full range Passive Speaker, Bass Reflex
  • Frequency Response (-10)
    85Hz - 20kHz
  • Frequency Response (-3)
    150Hz - 18kHz
  • Sensitivity (1W/1M)
    92dB
  • Max SPL
    112dB
  • Power
    400W Peak, 200W Continuous, 100W RMS
  • Nominal System Impedance
    8 ohm
  • Input Connector
    4 Pole Weatherproof connector (IP68) (One connector included)
  • Link Connector
    4 Pole Weatherproof connector (IP68)
  • Cabinet
    Injection moulded
  • Finish
    White (Black finish also available)
  • Mounting Bracket
    Two M8 mounting points for optional HH-BRK10 or suitable alternative
  • Linking Bracket
    Two Mounting points for optional HH-LC3 linking bracket
