TNi-1201-B

Archived

TNi-1201-B Discontinued

The TNi-1201 is a 12" compact full range passive loudspeaker in the Tessen Installation range. It is designed to provide maximum performance for its class and be visually unobtrusive. It comes with flexible mounting options and fly points

Features

  • Packed Weight
    17.2Kg, 37.9 lbs
  • Coverage
    70H x 70V
  • Crossover Frequency
    3KHz
  • Cabinet
    Robust all wood construction
  • Mounting Bracket
    4 x M8 mounting points for optional HH-BRK30 (sold separately)
  • Mounting Points
    3 x M10 Penn-Elcom fly points (can also be used as safety tie points)
  • Grille
    Powder coated steel with acoustic foam backing

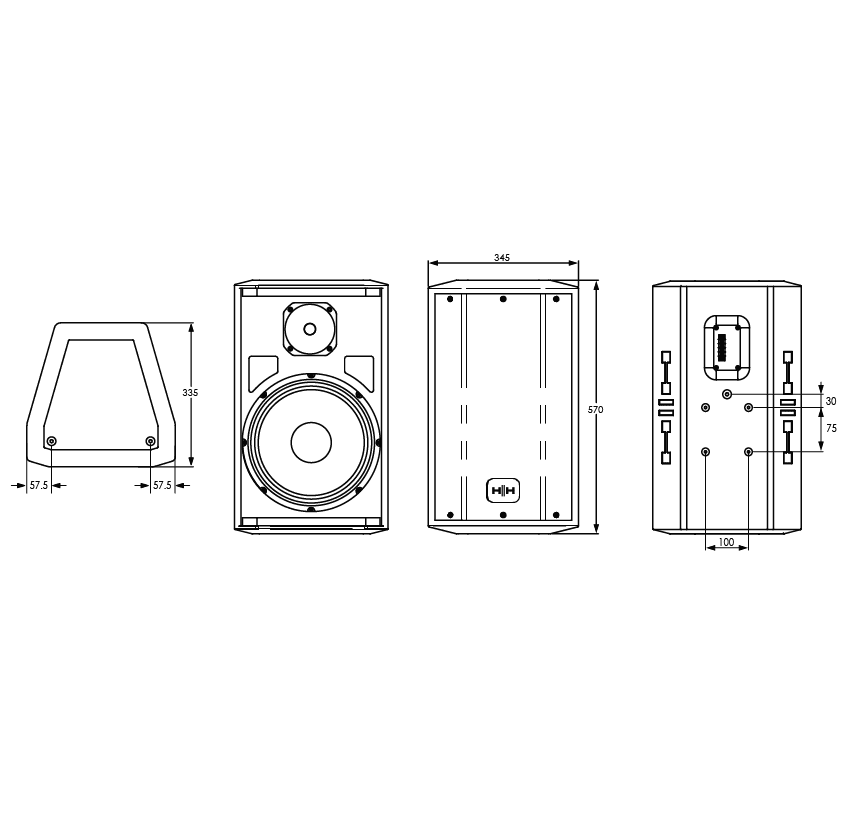

  • Unit Dimensions (Hwd)
    570 x 345 x 335mm, 22.4" x 13.6" x 13.2"
  • Unit Weight
    15.5Kg, 34.2 lbs
  • Carton Dimensions (Hwd)
    645 x 420 x 410mm, 25.4" x 16.5" x 16.1" , 0.111 M3
  • Finish
    Hard wearing spatter finish (Black option available)
  • System Type
    12" 2 WAY PASSIVE SPEAKER
  • Frequency Response (-10)
    47HZ - 20KHZ
  • Frequency Response (-3)
    55HZ - 20KHZ
  • Max SPL (1M) (Peak)
    95DB
  • Sensitivity (1W/1M)
    95DB
  • Power
    800W PEAK, 400W CONTINUOUS, 200W RMS
  • Impedance
    8 Ohm
  • Input Connector
    M4 BARRIER STRIP TERMINAL
  • Link Connector
    M4 BARRIER STRIP TERMINAL
  • HF Driver
    1" LAVOCE DF10 COMPRESSION DRIVER
  • LF Driver
    12" HH LF-436EH
