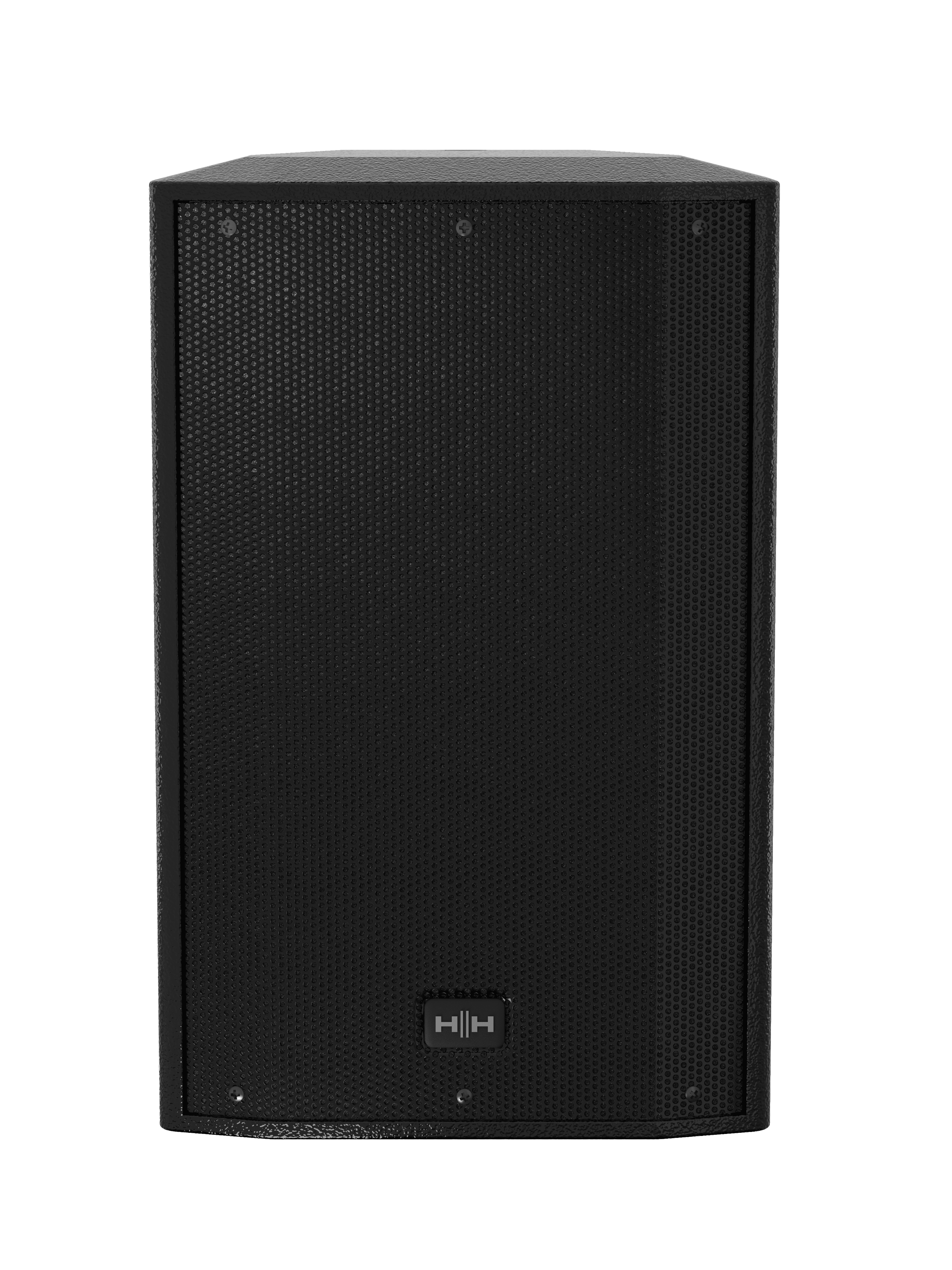

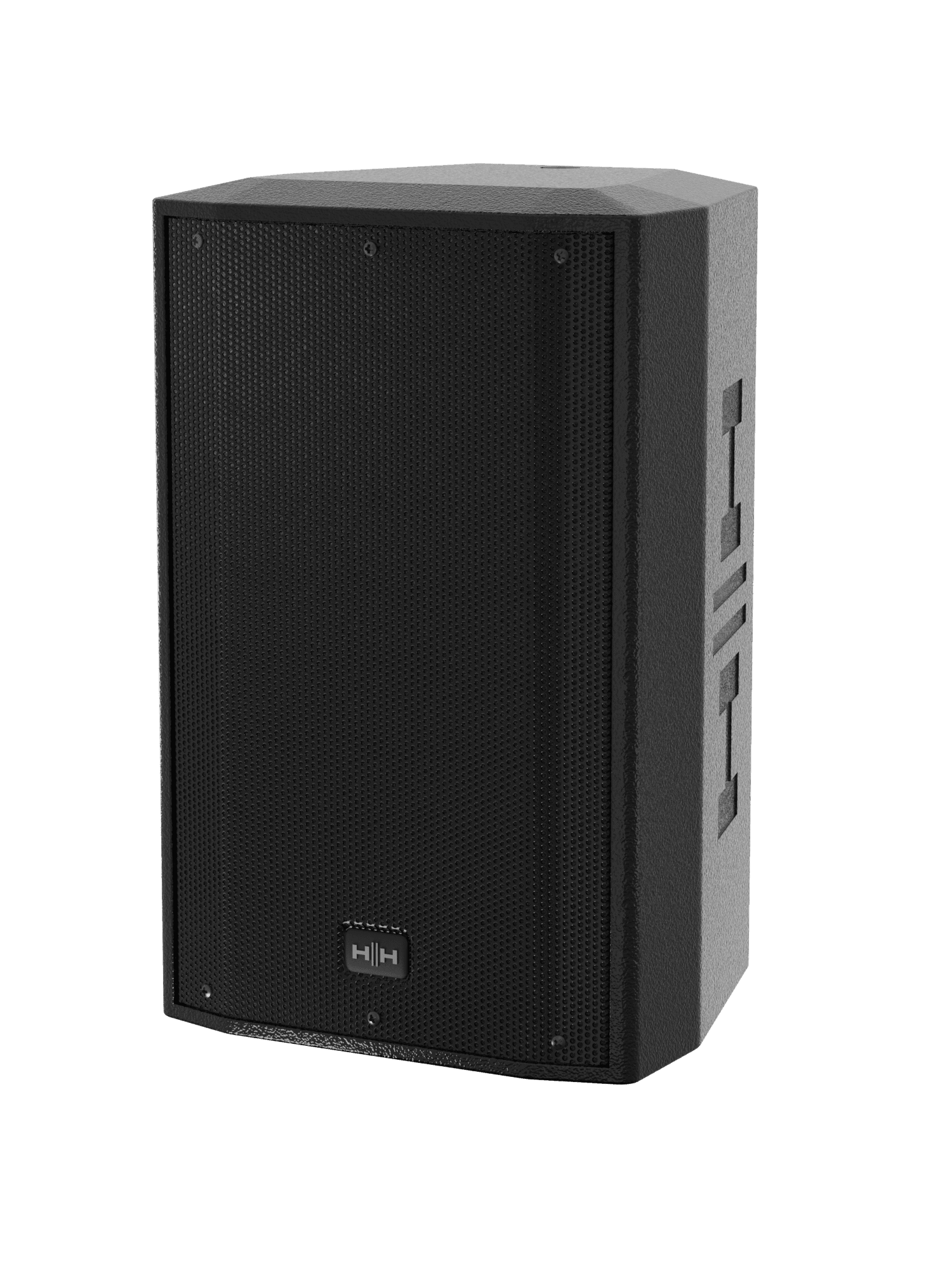

TNi-0801A-B

Features

• Mounting Bracket
  4 x M8 mounting points for optional HH-BRK30 (sold separately)
• Finish
  Hard wearing spatter finish (White option available)
• Cabinet
  Robust all wood construction
• Crossover Frequency
  3KHz
• Coverage
  70H x 70V
• Mounting Points
  1 x M10 Penn-Elcom safety tie point
• Grille
  Powdercoated steel with acoustic foam backing

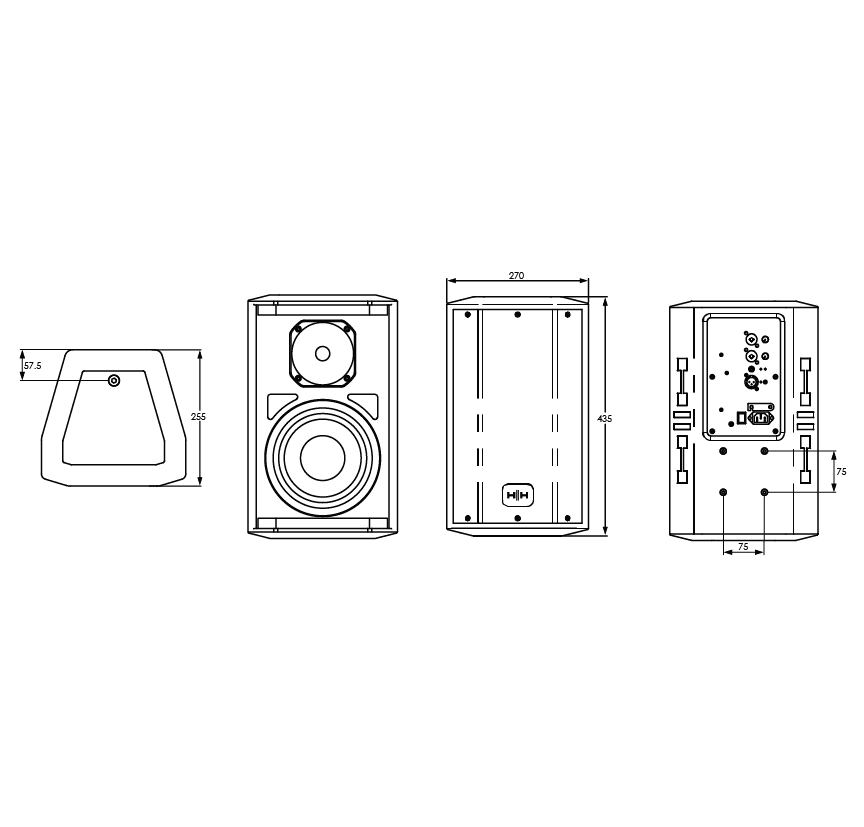

• Unit Dimensions (Hwd)
  435 x 270 x 255mm, 17.1" x 10.6" x 10"
• Unit Weight
  9.8Kg, 21.6 lbs
• Carton Dimensions (Hwd)
  480 x 325 x 310mm, 18.9" x 12.8" x 12.2" , 0.048 M3
• Packed Weight
  11Kg, 24.3 lbs
• System Type
  8" 2 WAY ACTIVE SPEAKER
• Frequency Response (-10)
  55 - 20KHZ
• Frequency Response (-3)
  60 - 20KHZ
• Max SPL (1M) (Peak)
  124DB
• Power
  800W PEAK, 400W CONTINUOUS, 200W RMS

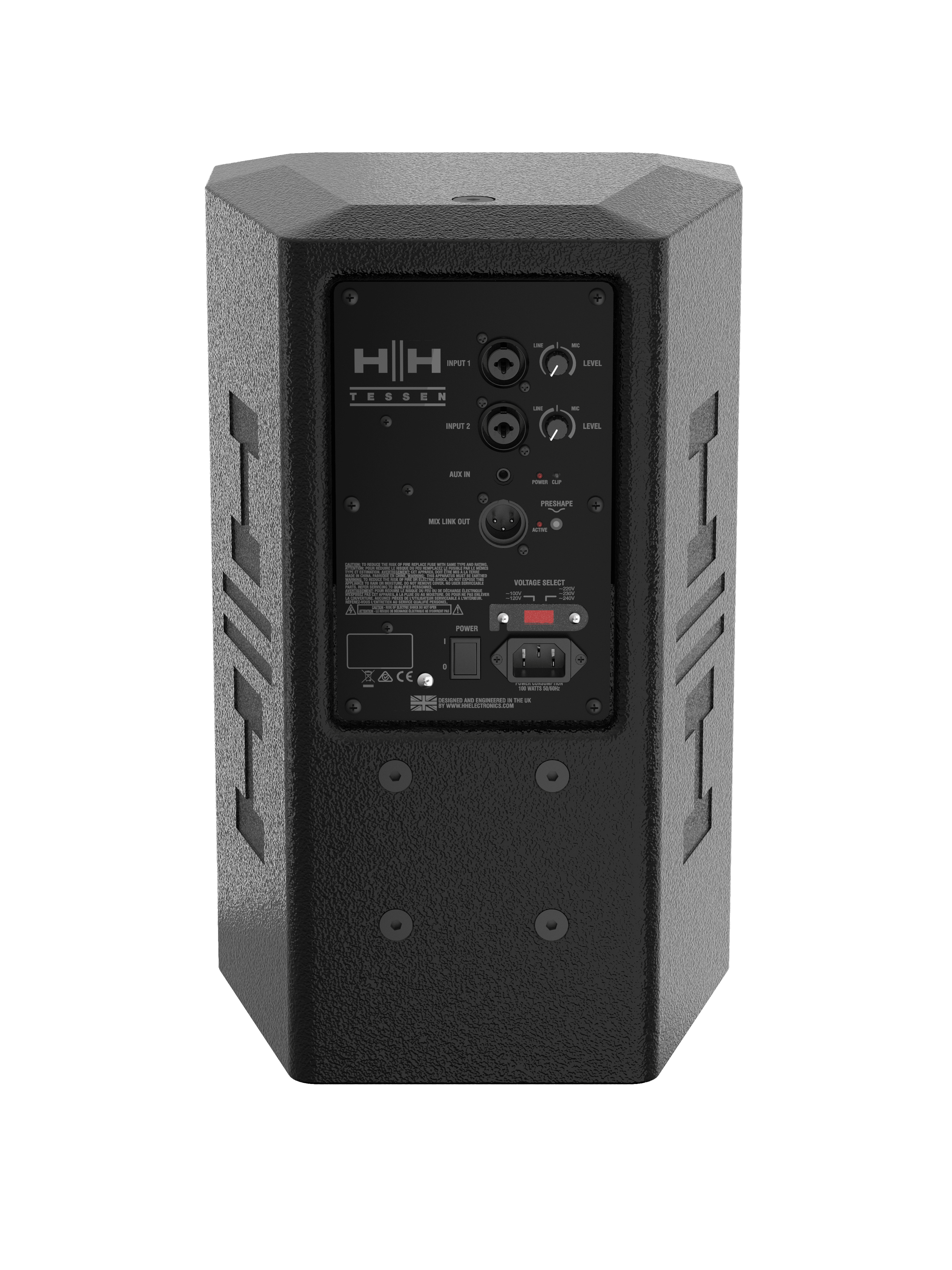

• Inputs
  2 X BALANCED JACK/XLR COMBI INPUTS, STEREO MINI JACK AUX
• Link Connector
  BALANCED XLR
• Controls
  2 X CHANNEL GAIN, EQ PRESET
• Features
  COMPREHENSIVE PROTECTION AND CLIP FREE LIMITING.
• HF Driver
  1" LAVOCE DF10 COMPRESSION DRIVER
• LF Driver
  8" HH LD-426DH
