TNi-0801

Archived

TNi-0801 Discontinued

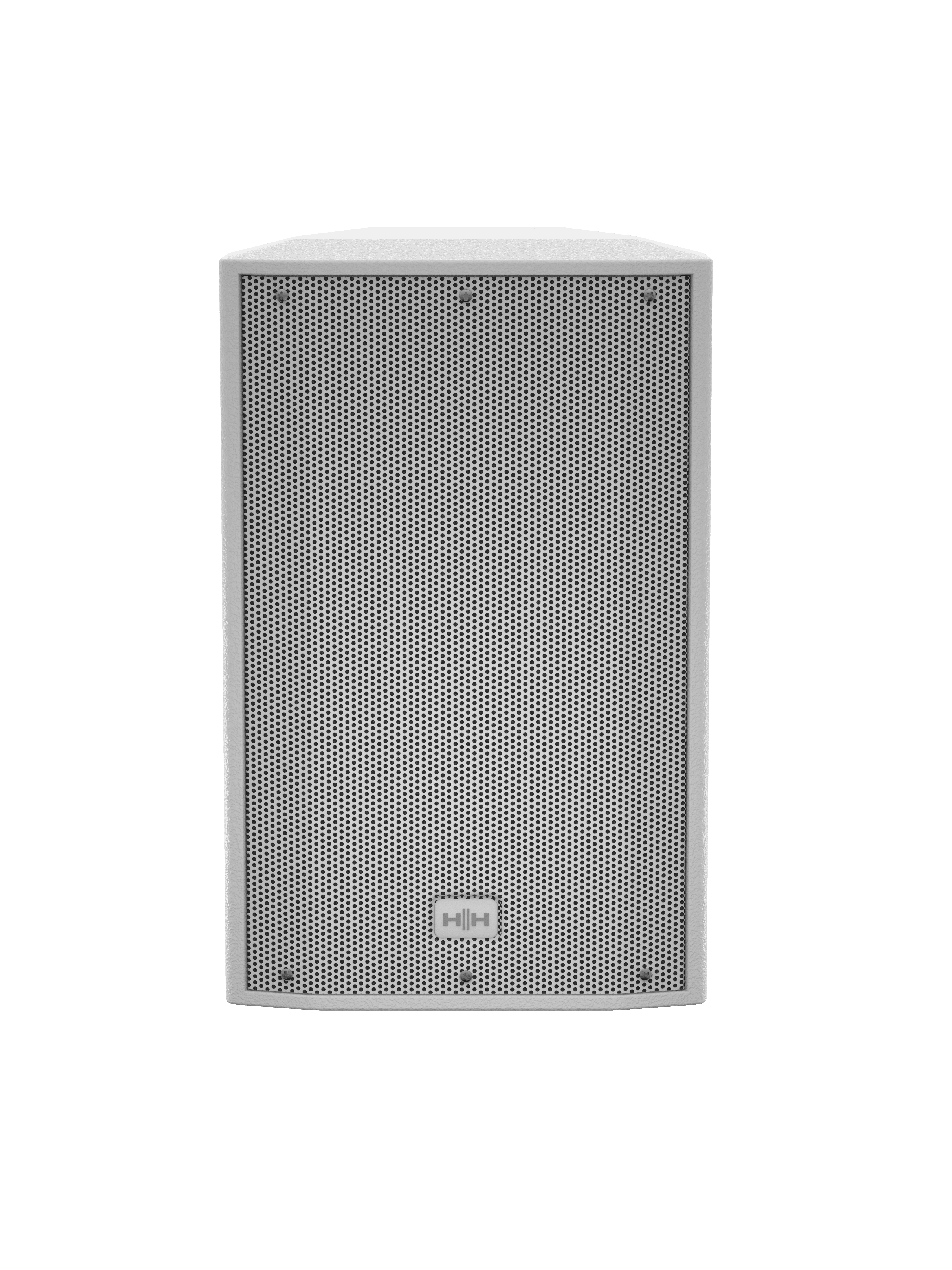

The TNi-0801 is an 8" compact full range passive loudspeaker in the Tessen Installation Range. It is designed to provide maximum performance for its class and be visually unobtrusive.

Features

  • Packed Weight
    10.1Kg, 22.3 lbs
  • Carton Dimensions (Hwd)
    480 x 325 x 310mm, 18.9" x 12.8" x 12.2" , 0.048 M3
  • Unit Weight
    9.1Kg, 20.1 lbs

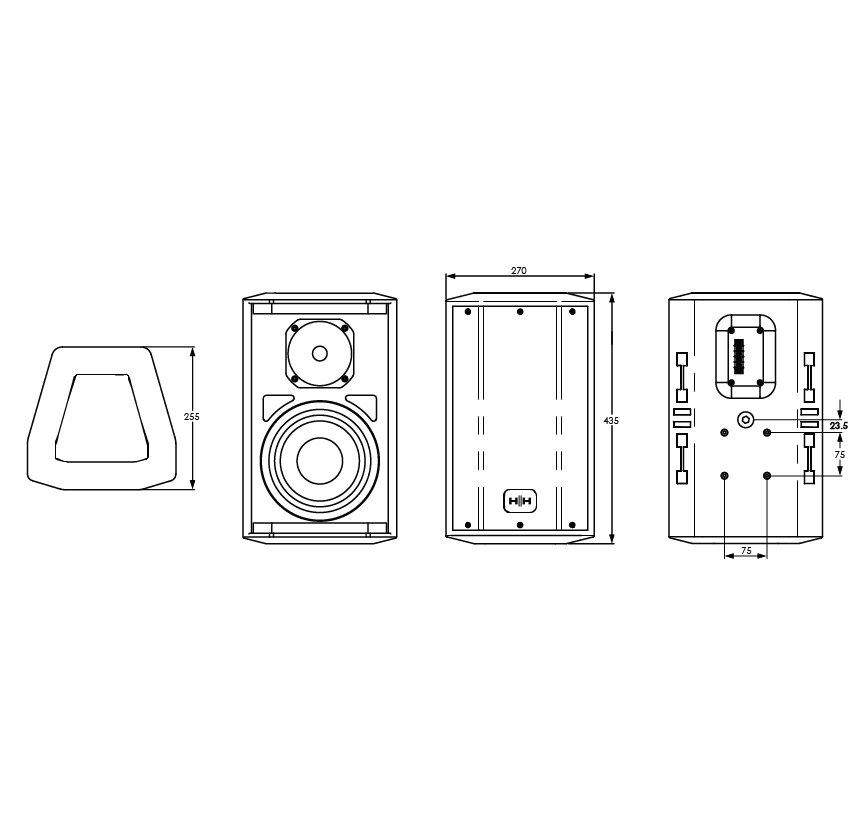

  • Unit Dimensions (Hwd)
    435 x 270 x 255mm, 17.1" x 10.6" x 10"
  • Grille
    Powdercoated steel with acoustic foam backing
  • Mounting Points
    1 x M10 Penn-Elcom safety tie point
  • Mounting Bracket
    4 x M8 mounting points for optional HH-BRK30 (sold separately)
  • Finish
    Hard wearing spatter finish (Black option available)
  • Cabinet
    Robust all wood construction
  • Crossover Frequency
    3Khz
  • Coverage
    70H x 70V
  • System Type
    8" 2 WAY PASSIVE SPEAKER
  • Frequency Response (-10)
    55HZ - 20KHZ
  • Frequency Response (-3)
    60HZ - 20KHZ
  • Sensitivity (1W/1M)
    95DB
  • Max SPL (1M) (Peak)
    124DB
  • Power
    720W PEAK, 360W CONTINUOUS, 180W RMS
  • Impedance
    8 Ohm
  • Input Connector
    M4 BARRIER STRIP TERMINAL
  • Link Connector
    M4 BARRIER STRIP TERMINAL
  • HF Driver
    1" LAVOCE DF10 COMPRESSION DRIVER
  • LF Driver
    8" HH LD-426DH

Downloads
