TNi-0601-B

Archived

TNi-0601-B Discontinued

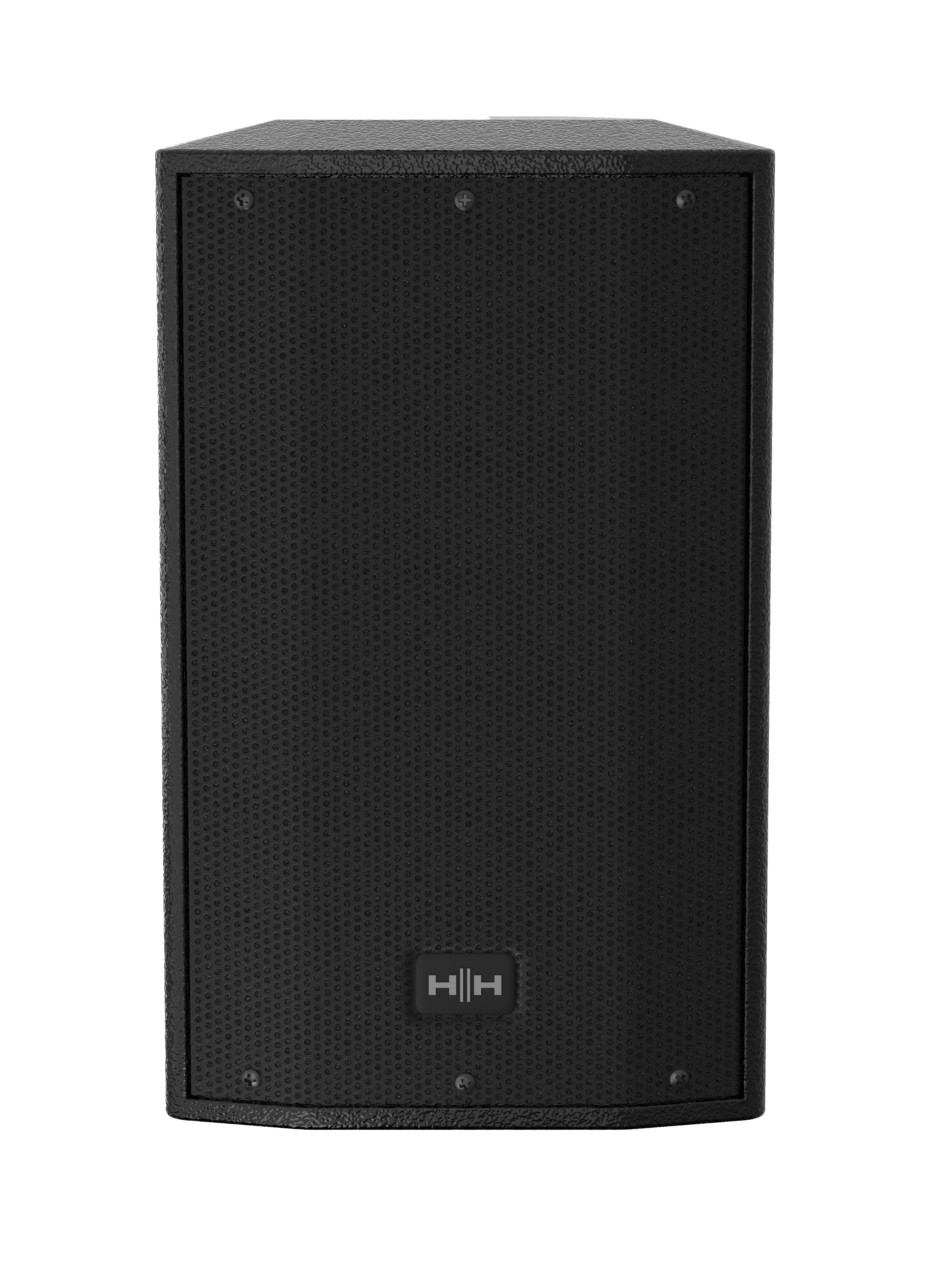

The TNi-0601 is a 6.5" ultra-compact full range passive loudspeaker in the Tessen Installation Range. It is designed to provide maximum performance for its class and be visually unobtrusive.

Features

  • Mounting Bracket
    4 x M8 mounting points for optional HH-BRK30 (sold separately)
  • Mounting Points
    1 x M10 Penn-Elcom safety tie point
  • Grille
    Powdercoated steel with acoustic foam backing

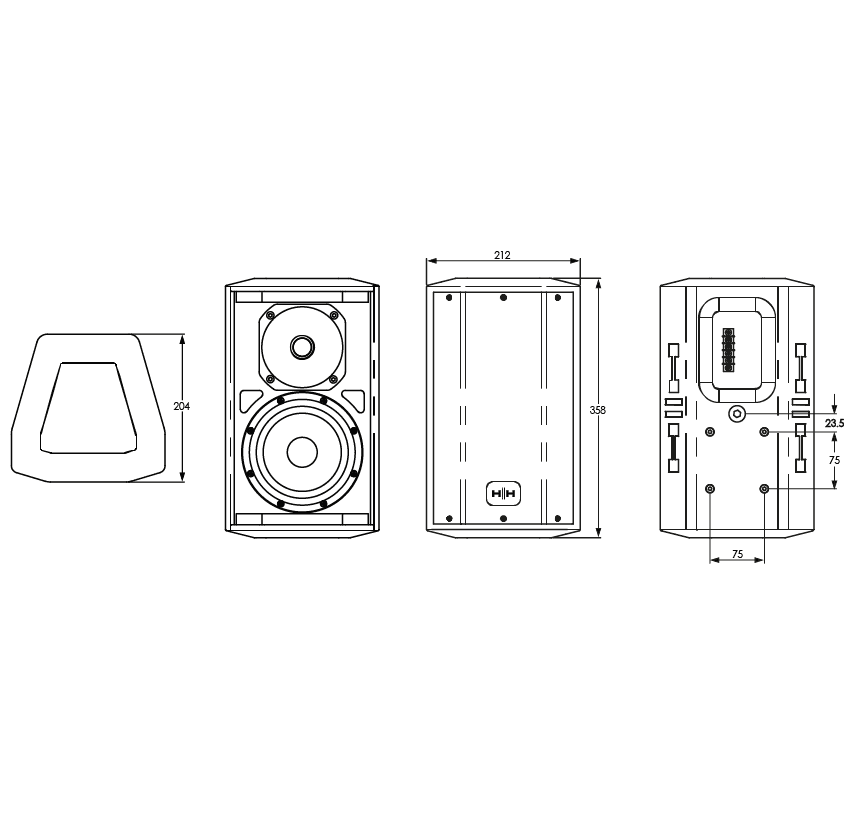

  • Unit Dimensions (Hwd)
    360 x 212 x 204mm, 14.2" x 8.3" x 8"
  • Unit Weight
    6.1Kg, 13.4 lbs
  • Carton Dimensions (Hwd)
    405 x 265 x 260mm, 15.9" x 10.4" x 10.2" , 0.028 M3
  • Finish
    Hard wearing spatter finish (White option available)
  • Packed Weight
    6.9Kg, 15.2 lbs
  • Cabinet
    Robust all wood construction
  • Coverage
    70H x 70V
  • Crossover Frequency
    3khz
  • System Type
    6.5" 2 WAY PASSIVE SPEAKER
  • Frequency Response (-10)
    85HZ - 20KHZ
  • Frequency Response (-3)
    95HZ - 18KHZ
  • Sensitivity (1W/1M)
    93DB
  • Max SPL (1M) (Peak)
    119DB
  • Power
    400W PEAK, 200W CONTINUOUS, 100W RMS
  • Impedance
    8 Ohm

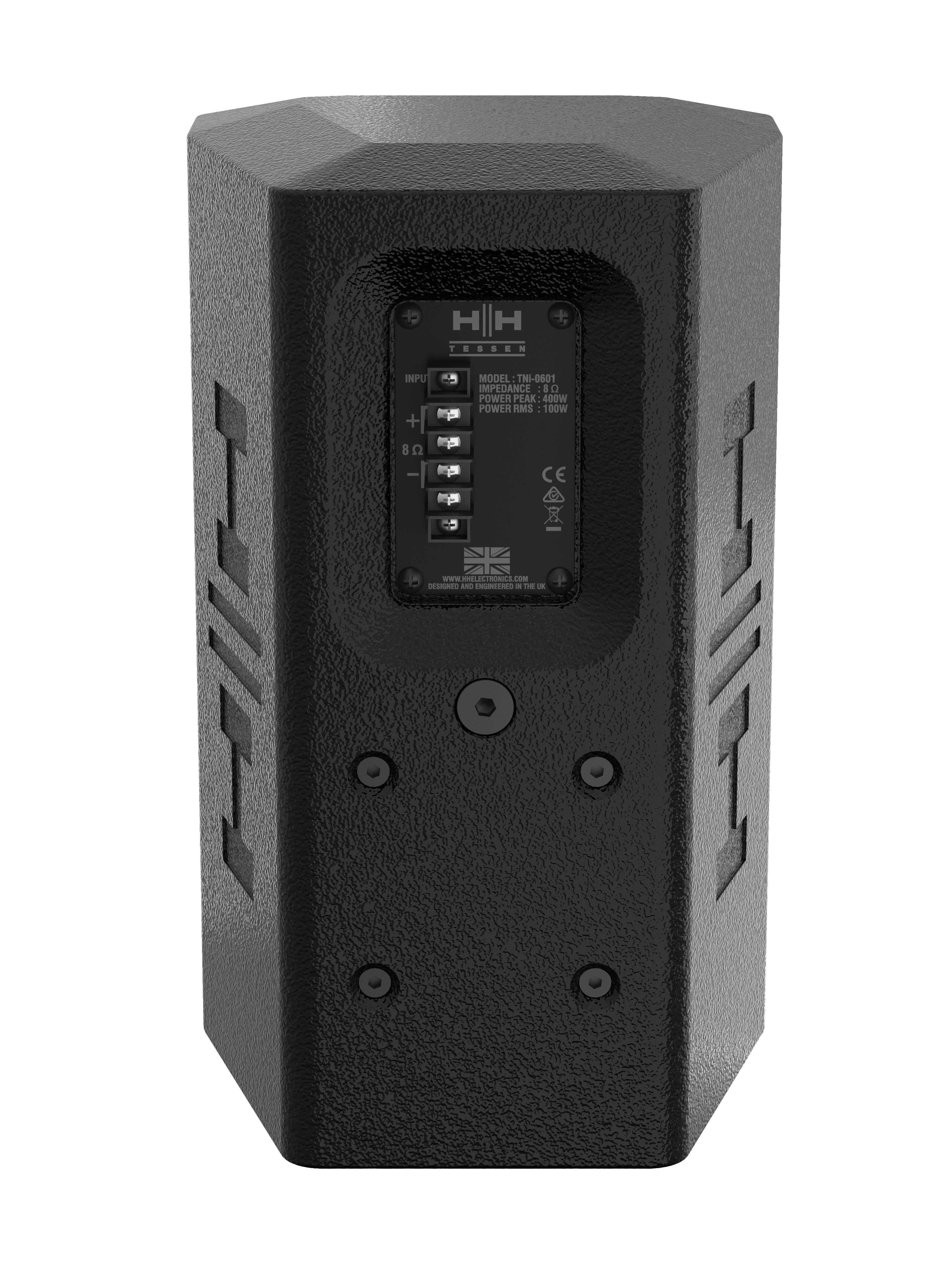

  • Input Connector
    M4 BARRIER STRIP TERMINAL
  • Link Connector
    M4 BARRIER STRIP TERMINAL
  • HF Driver
    1" LAVOCE DF10 COMPRESSION DRIVER
  • LF Driver
    6.5" HH LC-416CH
