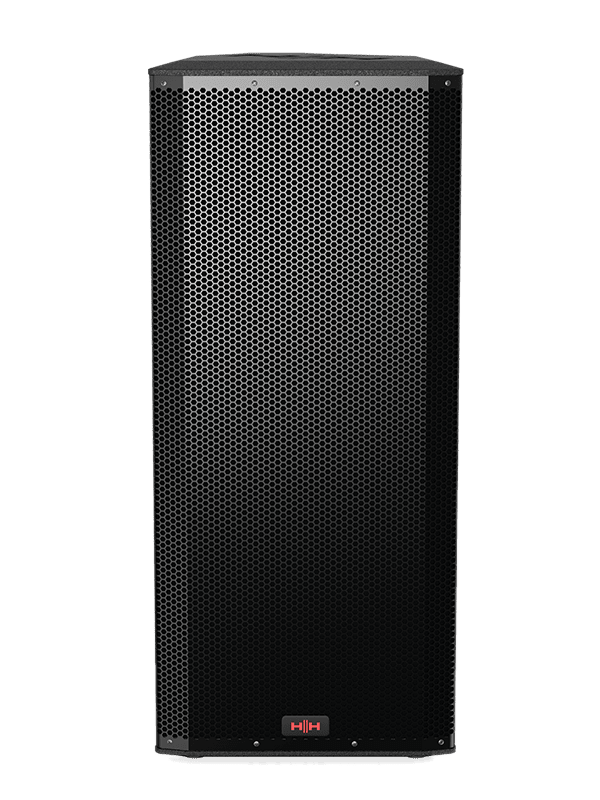

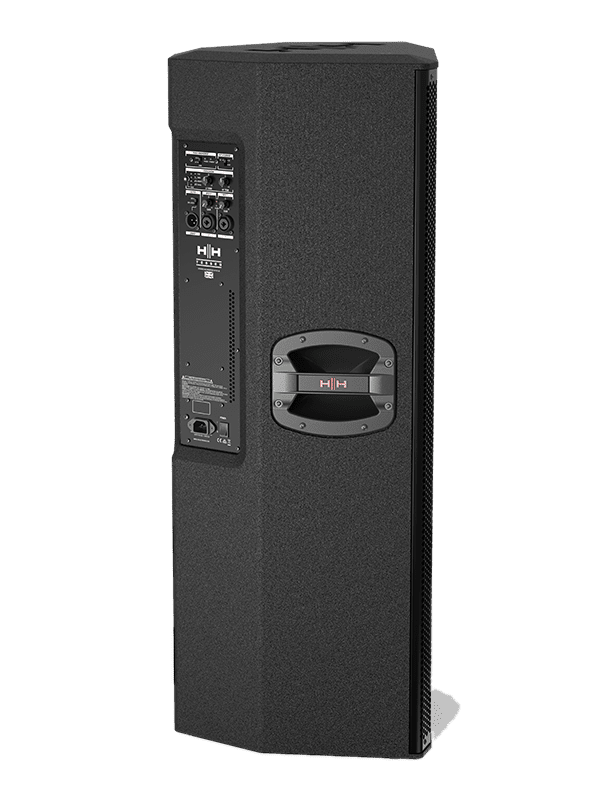

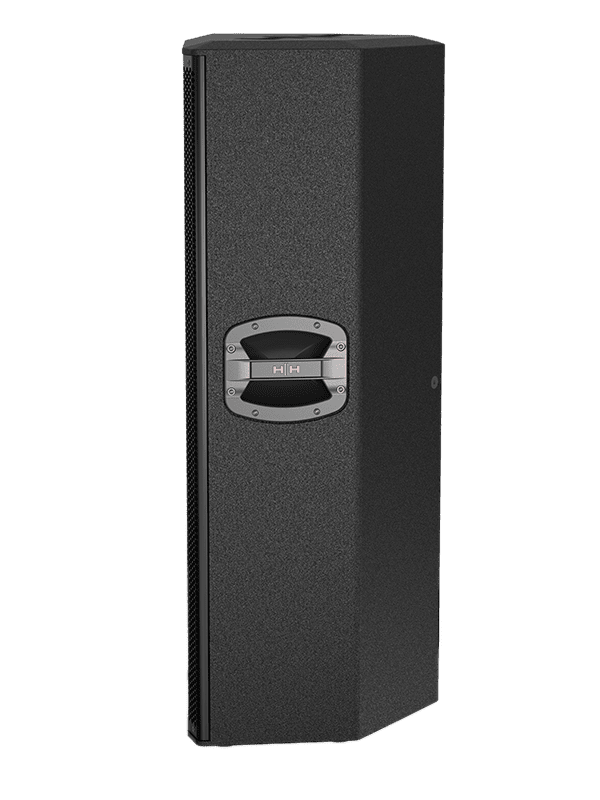

TNE-2151

Archived

TNE-2151 Discontinued

The close-coupled dual 15” HH woofers, 1600W amplifier and over-rated power supply give impressive depth and volume. The full frequency response and high sound pressure ensure the Tessen 2151 excels as a complete standalone system for FOH or sidefill applications, but it’s equally happy working with the TNS-1800 sub in larger rigs.

Features

  • Coverage
    70H x 70V
  • Inputs
    2 x Balanced Jack/XLR combi inputs
  • Outputs
    Balanced XLR
  • Controls
    2 x channel gain, EQ preset, EQ frequency and boost , Anti feedback switch, Logo on/off, ch1/mix switch for line out
  • Flying Points
    3 x M10 Penn-Elcom fly points
  • Cabinet
    Lightweight multilayer plywood
  • Grille
    Heavy gauge steel with acoustic foam backing and illuminating logo
  • Dimensions

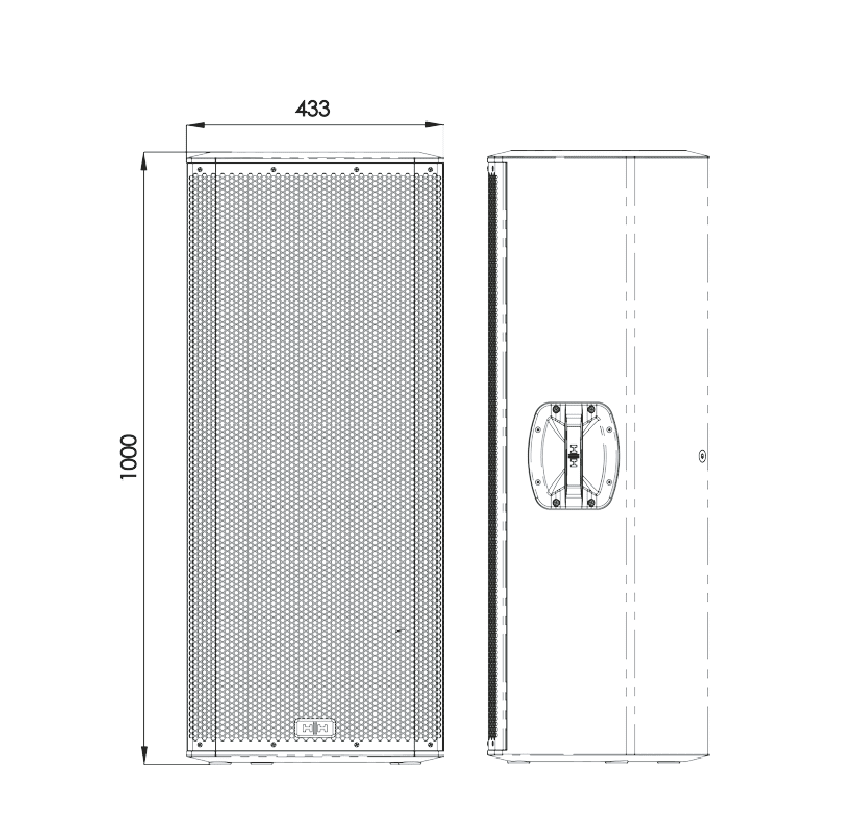

    995mm(h) x 435mm(w) x 375mm(d)
  • Weight
    29.3kg
  • Features
    12 frequency automatic feedback reduction, dual input channels, preset and variable EQ. Comprehensive protection and clip free limiting
  • System Type
    2 Way active speaker
  • Power
    1600W
  • Amplifier Type
    Bi-amp Class D
  • Power Supply
    Switchmode
  • DSP
    CROSSOVER, EQ, PHASE AND TIME OPTIMISATION
  • HF Driver
    1” LAVOCE DF10 COMPRESSION DRIVER
  • LF Driver
    2 X 15" HH LG-436EH
  • Frequency Response
    36 - 20KHZ
  • Max SPL
    131DB
