TNE-1501

Archived

TNE-1501 Discontinued

Sharing many of the features of the higher power Tessen-X series, the new Tessen series continues our reputation for affordable high performance systems. Onboard DSP and flyware, asymmetric Class D amplifiers with switching power supplies, and high performance drivers ensure the new HH TESSEN series is a worthy successor to its predecessors.

Features

  • Flying Points
    3 x M10 Penn-Elcom fly points
  • Features
    12 frequency automatic feedback reduction, dual input channels, preset and variable EQ. Comprehensive protection and clip free limiting

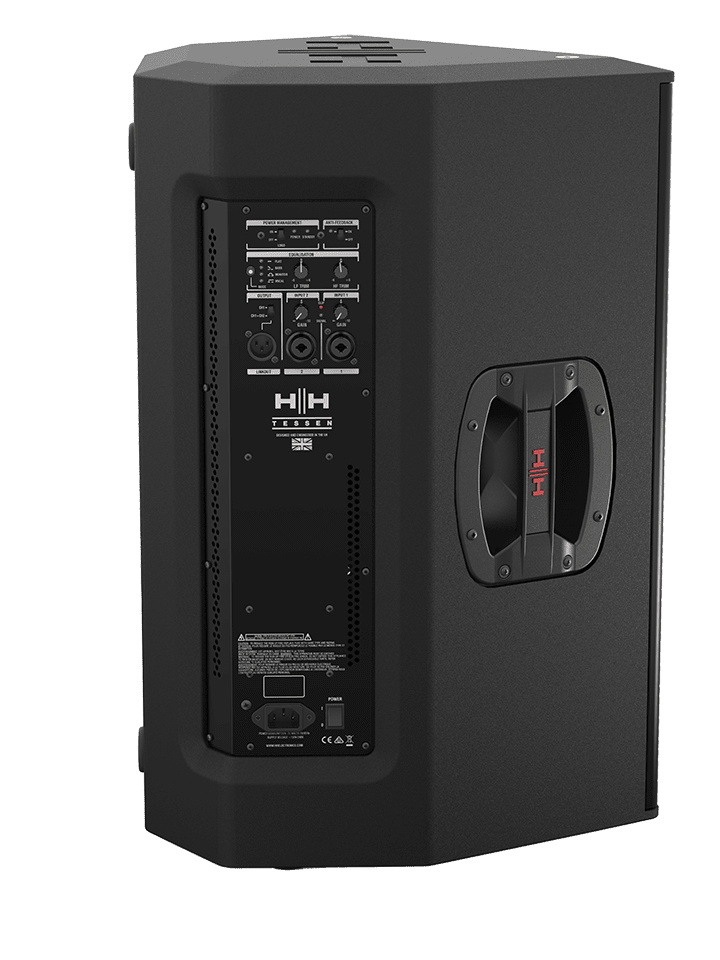

  • Controls
    2 x channel gain, EQ preset, EQ frequency and boost , Anti feedback switch, Logo on/off, ch1/mix switch for line out
  • Outputs
    Balanced XLR
  • Inputs
    2 x Balanced Jack / XLR combi inputs
  • Pole Mount
    35mm
  • Cabinet
    Lightweight multilayer plywood
  • Grille
    Heavy gauge steel with acoustic foam backing and illuminating logo
  • Monitor Angle
    35°

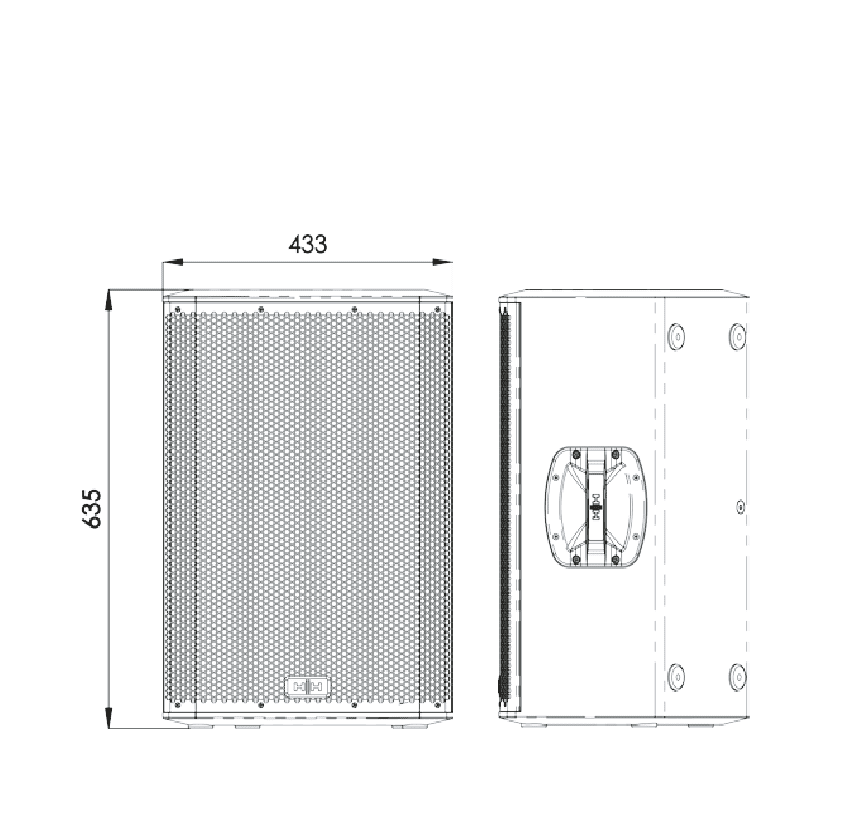

  • Dimensions
    630mm(h) x 435mm(w) x 375mm(d)
  • Weight
    19.2kg
  • System Type
    2 Way active speaker
  • Power
    1600W
  • Amplifier Type
    Bi-amp Class D
  • Power Supply
    Switchmode
  • DSP
    CROSSOVER, EQ, PHASE AND TIME OPTIMISATION
  • HF Driver
    1” LAVOCE DF10 COMPRESSION DRIVER
  • LF Driver
    12" HH LG-436EH
  • Frequency Response
    41HZ - 20KHZ
  • Max SPL
    129DB
  • Coverage
    70H X 70V
