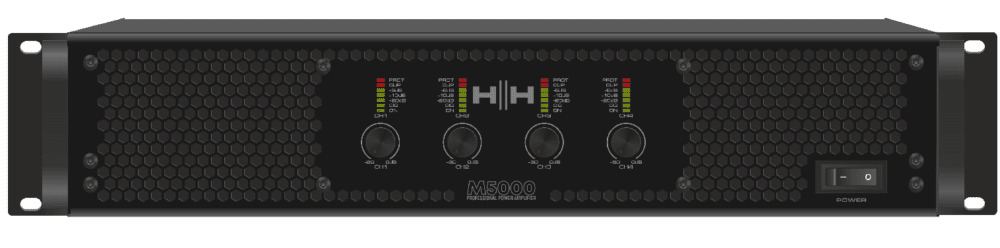

M5000

Features

• Protection
  Soft start, VHF, RF, short circuit, over load, clip limit, over heat, progressive volume, over/under voltage
• Psu Type
  Universal Auto Switching 100-240V~
• Amplifier Type
  High Performance Professional Class D
• Input Connector
  Balanced XLR-F
• Input Link Connector
  Balanced XLR-M
• Output Connector
  NL4 Speakon per channel
• Other Controls
  Sensitivity switch (per group) , Stereo/Parallel/Bridge Mode Switch, Input Link Mode Switch. Mains Input
• Power Connector
  13A Removeable IEC Power Cord C14
• Controls
  Volume Control knobs (per channel), Power switch
• Indicators
  Signal/Clip/Protection/Power/-5dB/-10dB/-20dB leds

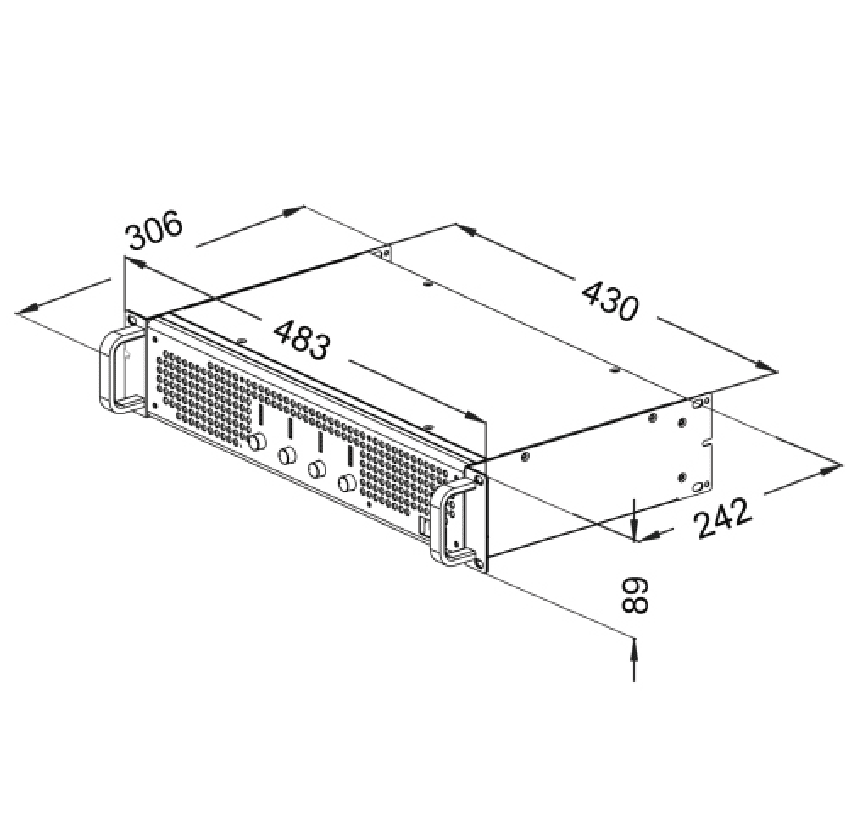

• Unit Dimensions (Hwd)
  483 x 306 x 89mm, 19" x 12" x 3.5"
• Carton Dimensions (Hwd)
  595 x 565 x 170mm, 23.4" x 22.2" x 6.7"
• Gross Weight
  11.3Kg, 24.9 lbs
• *
  * Power Tested 20mS burst, 1KHz sinewave, 1% THD
• Unit Weight
  9.3Kg/pc, 20.5 lbs/pc
• Output Power : 8 Ohm Stereo
  4 X 650W
• Output Power : 4 Ohm Stereo
  4 X 1100W
• Output Power : 2 Ohm Stereo
  4 X 1550W
• Output Power : 8 Ohm Bridge
  2 X 2000W
• Output Power : 4 Ohm Bridg
  2 X 2600W
• Frequency Response
  20HZ - 20KHZ (+0, -1.5DB)
• THD+N
  ≤0.1%
• S/N
  ≥100DB
• Damping Factor
  500
• Slew Rate
  ≥10V/ΜS
• Input Sensitivity
  0.775V/1.0V/32DB
• Input Impedance (Bal/Unbal)
  20KΩ/10KΩ
• Voltage Gain (8Ω)
  39.3DB
• Cooling
  VARIABLE SPEED FAN, AIR FLOW FROM FRONT TO REAR
